JetStream L3 Stackable Managed Switch

07Preparing for Installation

enough to damage electronic devices, more effective lightning protection measures should be

taken.

■

Ensure the rack and device are well earthed.

■

Make sure the power socket has a good contact with the ground.

■

Keep a reasonable cabling system and avoid induced lightning.

■

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, please refer to the Lightning Protection Guide

from the training center of our website http://www.tp-link.com/en/conguration-guides.html.

Installation Site

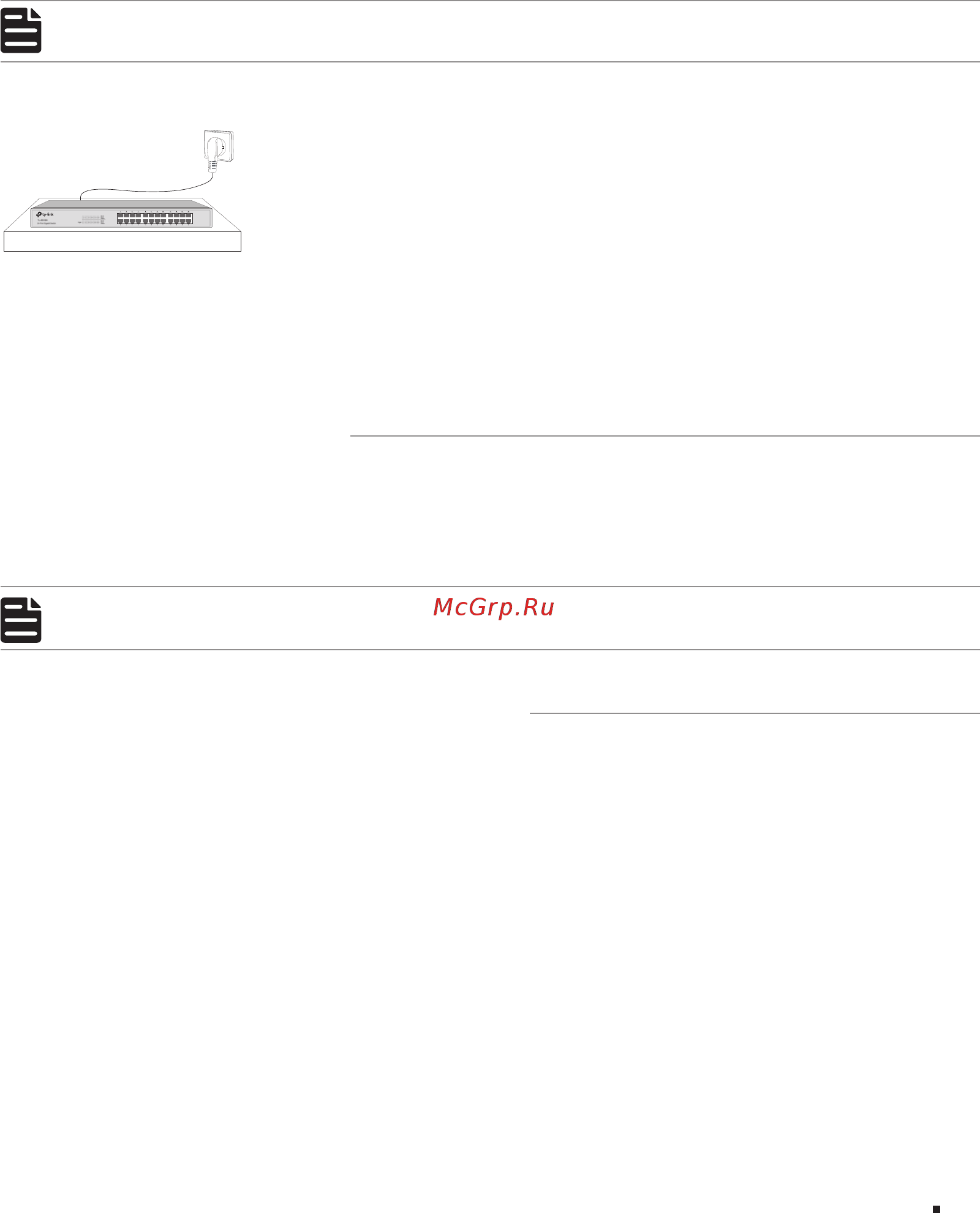

When installing the device on a rack or a flat workbench, please note the following items:

■

The rack or workbench is flat and stable, and sturdy enough to support the weight of 5.5kg at least.

■

The rack or workbench has a good ventilation system. The equipment room is well ventilated.

■

The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.

2.3 Installation Tools

■

Phillips screwdriver

■

ESD-preventive wrist wrap

■

Cables

Note: These tools are not provided with our product. If needed, please self purchase them.

2.4 Installation and Connection Flow

The switch provides two interfaces to install the swappable Power Supply Module, and one interface

to install the Interface Card. The switch has already been installed with a Power Supply Module

PSM150-AC, and you can also self-purchase the Interface Card/Power Supply Module if needed.
