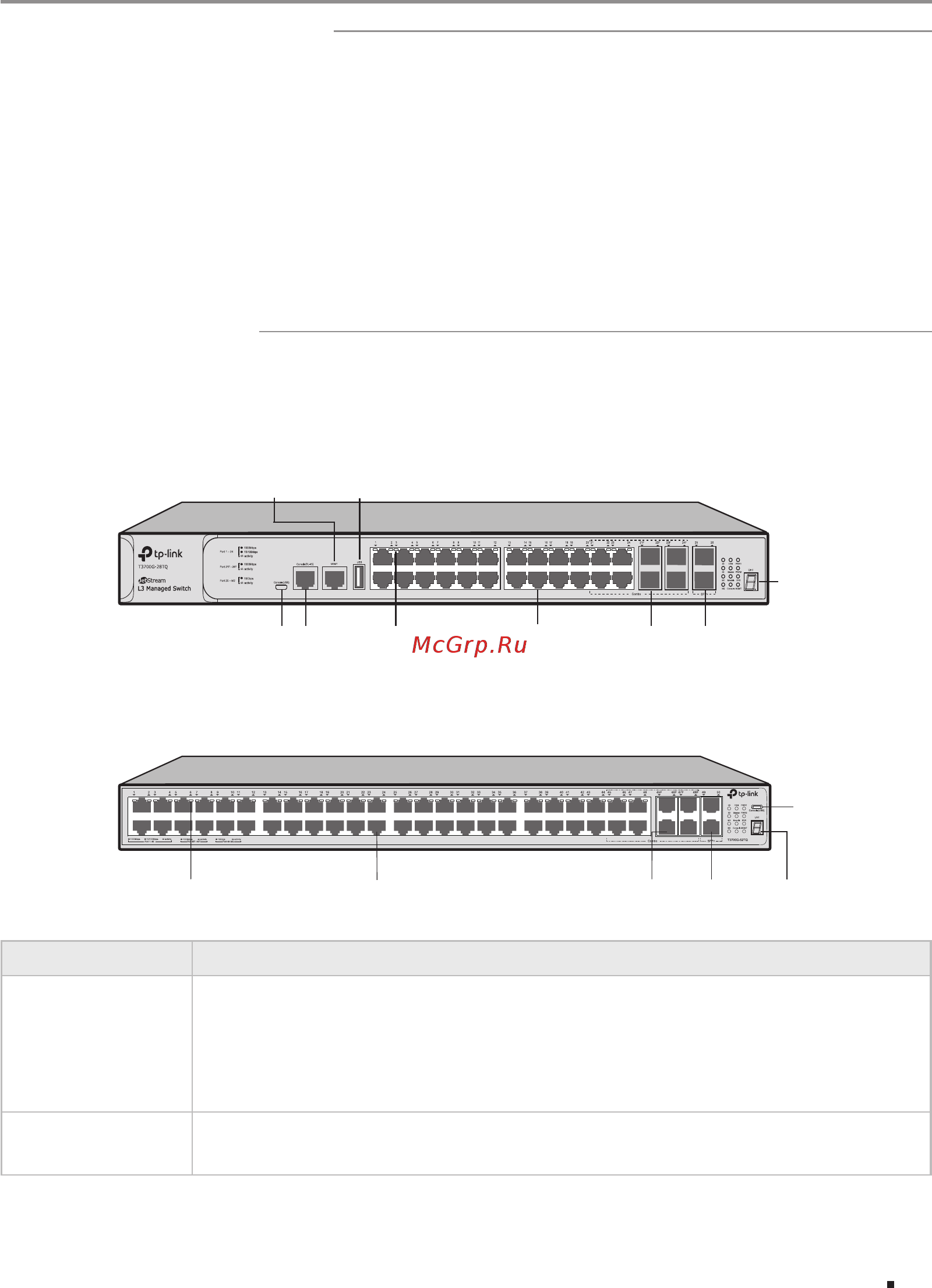

![Tp-Link T3700G-52TQ V1 [5/28] Chapter 1 introduction](/views2/1471197/page5/bg5.png)
JetStream L3 Stackable Managed Switch
01Introduction
Chapter 1 Introduction
1.1 Product Overview
T3700G-28TQ/T3700G-52TQ is an L3 managed switch that features advanced L3 routing, 10Gbps
wire-speed, physical stacking and removable power supply module and fan module, designed to
meet the needs of convergence layer. T3700G-28TQ/T3700G-52TQ is ideal for large businesses,
campuses or SMB networks requiring an outstanding, reliable and affordable 10 Gigabit solution.
T3700G-28TQ/T3700G-52TQ supports stacking of up to 8 units, thus providing flexible scalability
and protective redundancy for your networks. Moreover, aiming to better protect your network,
T3700G-28TQ/T3700G-52TQ supports 2 power supply modules. T3700G-28TQ/T3700G-52TQ can
fully implement resilient scalable networks due to its advanced features such as OSPF, VRRP, IGMP
and PIM DM/SM.
1.2 Appearance
■
Front Panel
The front panel of T3700G-28TQ is shown as the following figure.
Figure 1-1 Front Panel of T3700G-28TQ
Console Port
(RJ45/USB)
LEDs
10/100/1000Mbps
RJ45 Port
Unit ID LED
SFP Port
SFP+ Port
USB 2.0 Interface Management Port
The front panel of T3700G-52TQ is shown as the following figure.
Figure 1-2 Front Panel of T3700G-52TQ
LEDs
10/100/1000Mbps RJ45 Port
SFP+ Port
SFP Port
USB Console Port
Unit ID LED
LEDs
LED Indication
PWR1
PWR2
Green On: The power supply module connected to the corresponding power slot
works properly.
Yellow On: The power supply module connected to the corresponding power slot
works improperly.
Off: The corresponding power slot is not connected to any power supply module.
SYS
Flashing: The switch works properly.
On or Off: The switch works improperly.
