- 19 - Hardware Installation Process
English
Ø After install onboard audio driver, you may
connect speaker to Line Out jack, micro phone
to MIC In jack.
Device like CD-ROM , walkman etc can be
connected to Line-In jack.
Please note:
You are able to use 2-/4-/6- channel audio
feature by S/W selection.
If you want to enable 6-channel function, you
have 2 choose for hardware connection.
Method1:
Connect "Front Speaker" to "Line Out"
Connect "Rear Speaker" to "Line In"
Connect "Center and Subwoofer" to "MIC Out".
Method2:
You can refer to page 28, and contact your
nearest dealer for optional SUR_CEN cable.
wParallel Port, Serial Port and VGA Port (LPT/COMA/VGA)
Ø This connector supports 1 standard COM port,
1 Parallel port and 1 VGA port. Device like
printer can be connected to Parallel port ;
mouse and modem etc can be connected to
Serial ports.

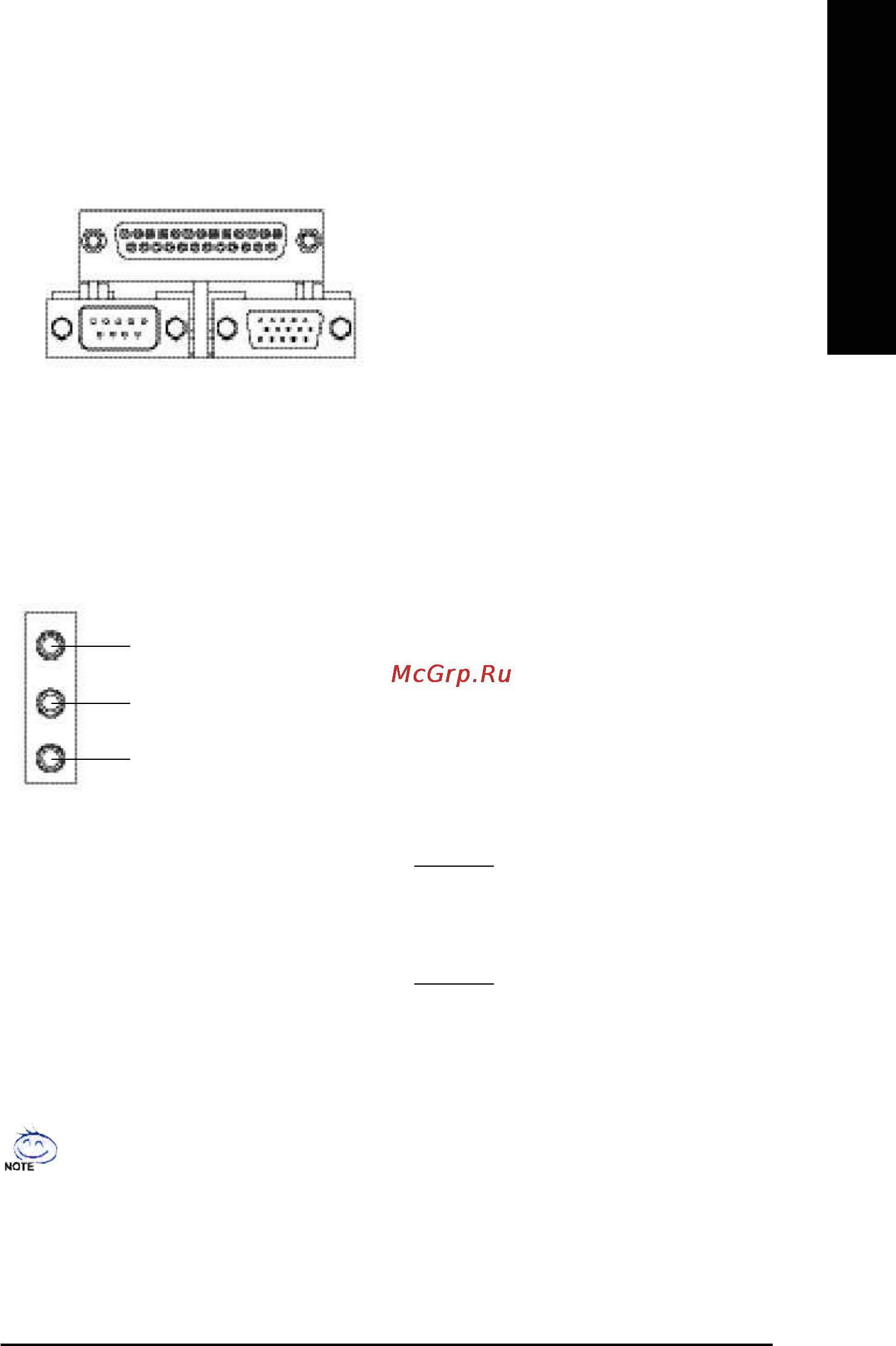

Parallel Port
(25 pin Female)
COMA
VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
y Audio Connectors
Line In(Rear Speaker)
MIC In(Center and Subwoofer)
Line Out(Front Speaker)
If you want the detail information for 2-/4-/6-channel audio setup
installation, please refer to page 78.
