- 23 - Hardware Installation Process
English

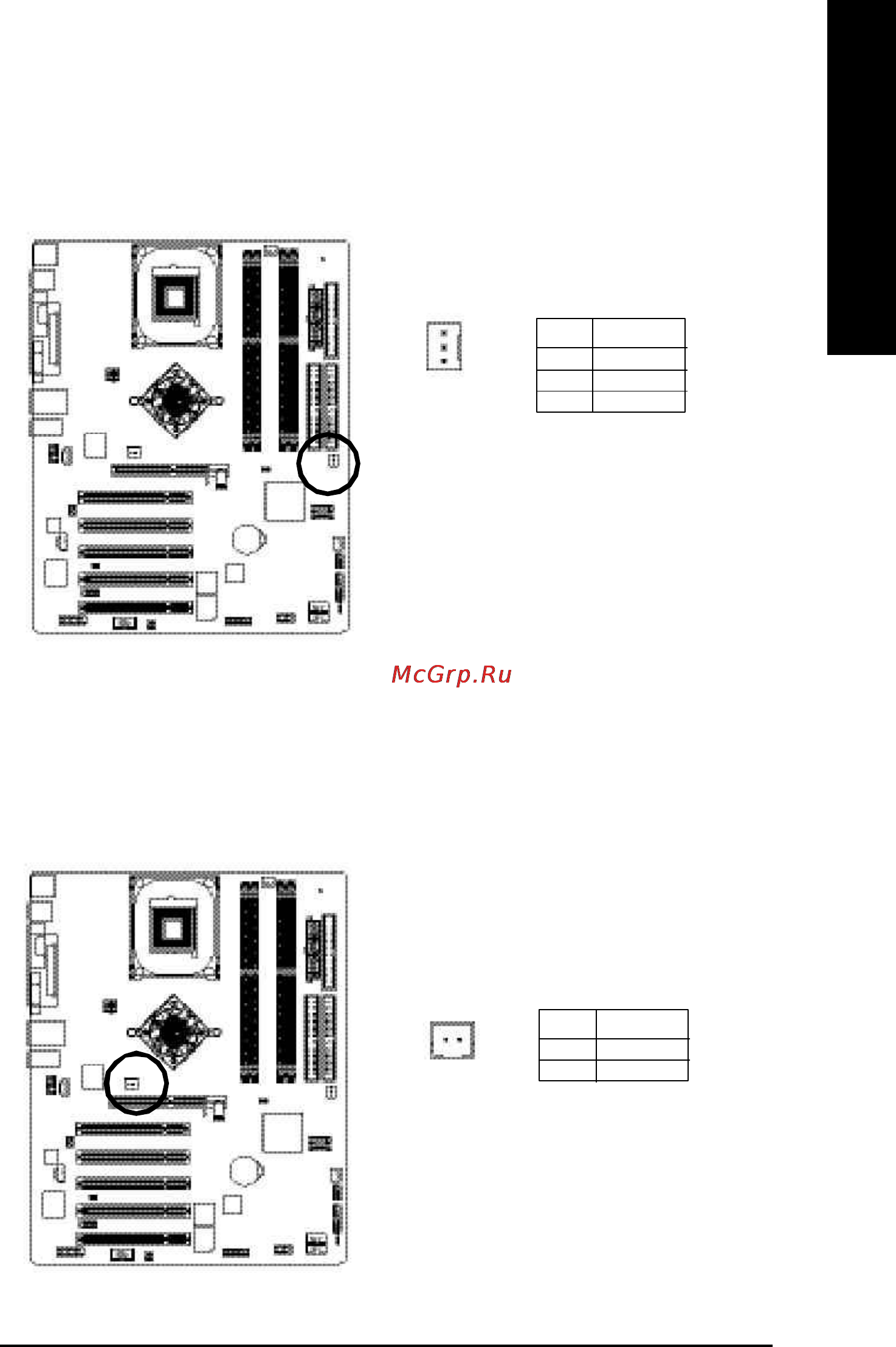

5) PWR_FAN (Power Fan Connector)
(
*
)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
6) NB_FAN
(
*
)
If you installed wrong direction, the Chip Fan will not work. Sometimes will damage the Chip Fan.
(Usually black cable is GND)
Note: If the NorthBridge on the motherboard has a fan sink, then the motherboard contains a
NB_FAN connector.
Pin No. Definition
1 GND
2 +12V
3 Sense
Pin No. Definition
1 VCC
2 GND
1
1
(*) For GA-8IG1000 Pro only.
