RIGOL Chapter 1 Quick Start
1-4 RSA3000 User’s Guide
To Prepare for Use
To Adjust the Supporting Legs
You can unfold the supporting legs to use them as stands to tilt the instrument
upwards for easier operation and observation. You can also fold the supporting legs
for easier storage or shipment when the instrument is not in use.

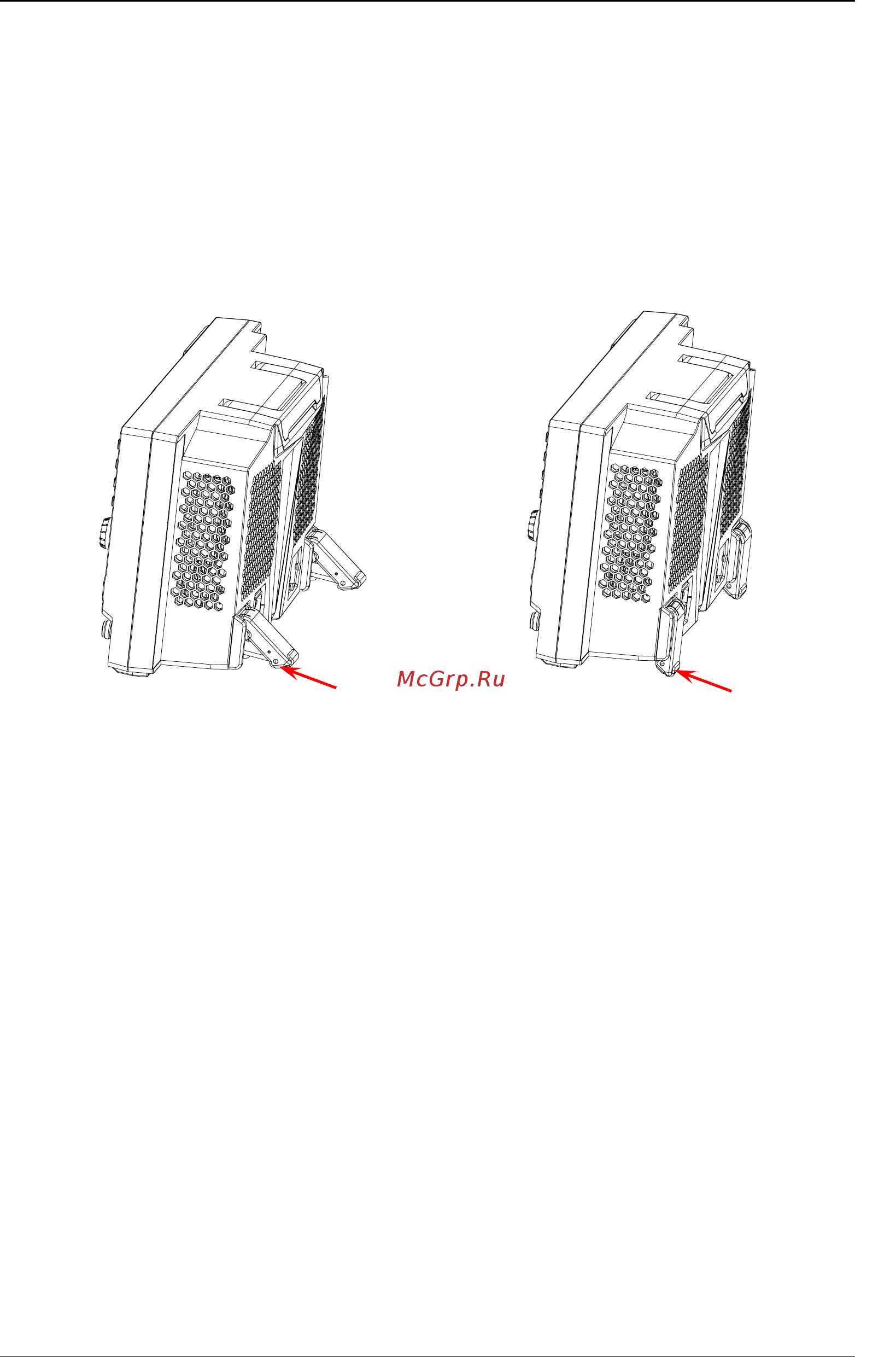

Figure 1-3 To Adjust the Supporting Legs
To unfold the
supporting legs
To fold the
supporting legs
