Chapter 1 Quick Start RIGOL
RSA3000 User's Guide 1-7
Front Panel

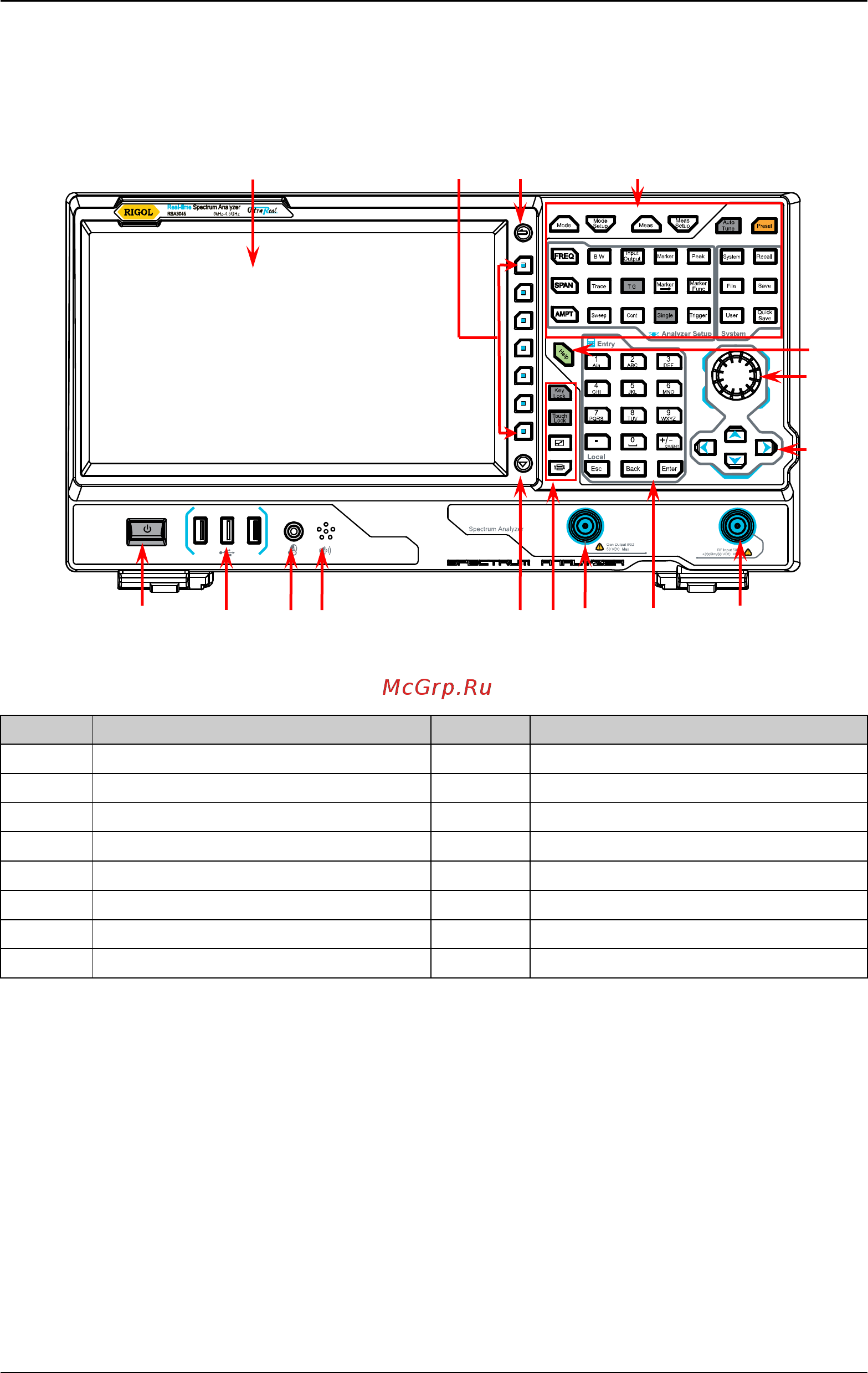

The front panel of RSA3000 is shown in the following figure.
Figure 1-4 Front Panel
Table 1-1 Front Panel Description
No.
Description
No.
Description
1
LCD
9
Numeric keypad
2
Menu softkeys
10
Tracking generator output
[1]
3
Back to previous menu item
11
Utility function key area
4
Function key area
12
Page up/down key
5
Help key
13
Speaker
6
Knob
14
Earphone jack
7
Arrow keys
15
USB HOST
8
RF input
16
Power key
Note
[1]
: This function is only available for RSA3045-TG/RSA3030-TG.
1
2
3
16 15 14 13 12 11 10 9 8
5
6
7
4
