Installation Manual Double DIN Kit Mitsubishi ASX

3. Dashboard with removed

OEM Radio/CD device

All installation work must be performed by a qualied professional installer only.

The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

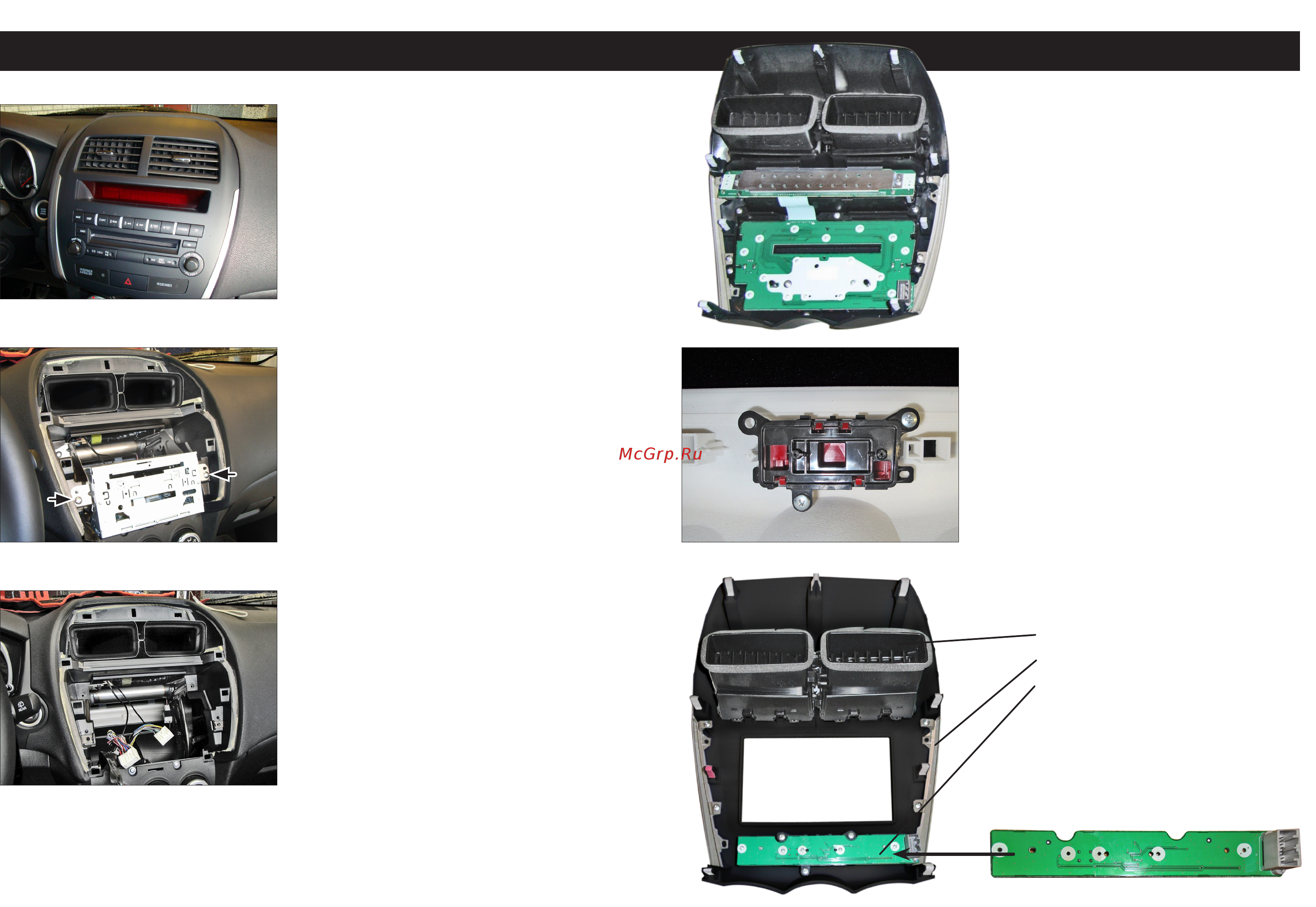

1. Mitsubishi ASX with OEM-Radio

Unclip OEM center panel

Unplug cables carefully

Remove OEM center panel

2. Remove OEM Radio/CD device

4. Dismount air vents left and

right. Remove OEM circuit

board (PCB).

Dismount hazard light switch

Dismount silver side panels

Dismount clips

5. Mount hazard light switch to

facia plate

Put replacement stickers for

PASSENGER AIRBAG OFF (left) and

PASSENGER (right) on double

DIN facia plate

6. Mount

• OEM air vents

• OEM silver side panels

• replacement PCB

to facia plate
