16/24-Port Gigabit Easy Smart Switch

■

Requirements for Cabling Indoors

When cabling indoors, keep a certain distance away from the devices that may cause

high-frequency interferences, such as down-conductor cable, powerline, power

transformer and electromotor.

■

The main cable should be paved in the metal raceway of the access shaft. When

cabling, keep the loop area formed by the cable itself as small as possible.

■

Requirements for the distance between Ethernet cable and other pipelines are

shown in the table.

Other Pipelines

Ethernet Cable

Min Parallel Net Length L

(mm)

Min Parallel-overlapping

Net Height H (mm)

Down-conductor 1000 300

PE 50 20

Service pipe 150 20

Compressed air pipe 150 20

Thermal pipe (not wrapped) 500 500

Thermal pipe (wrapped) 300 300

Gas pipe 300 20

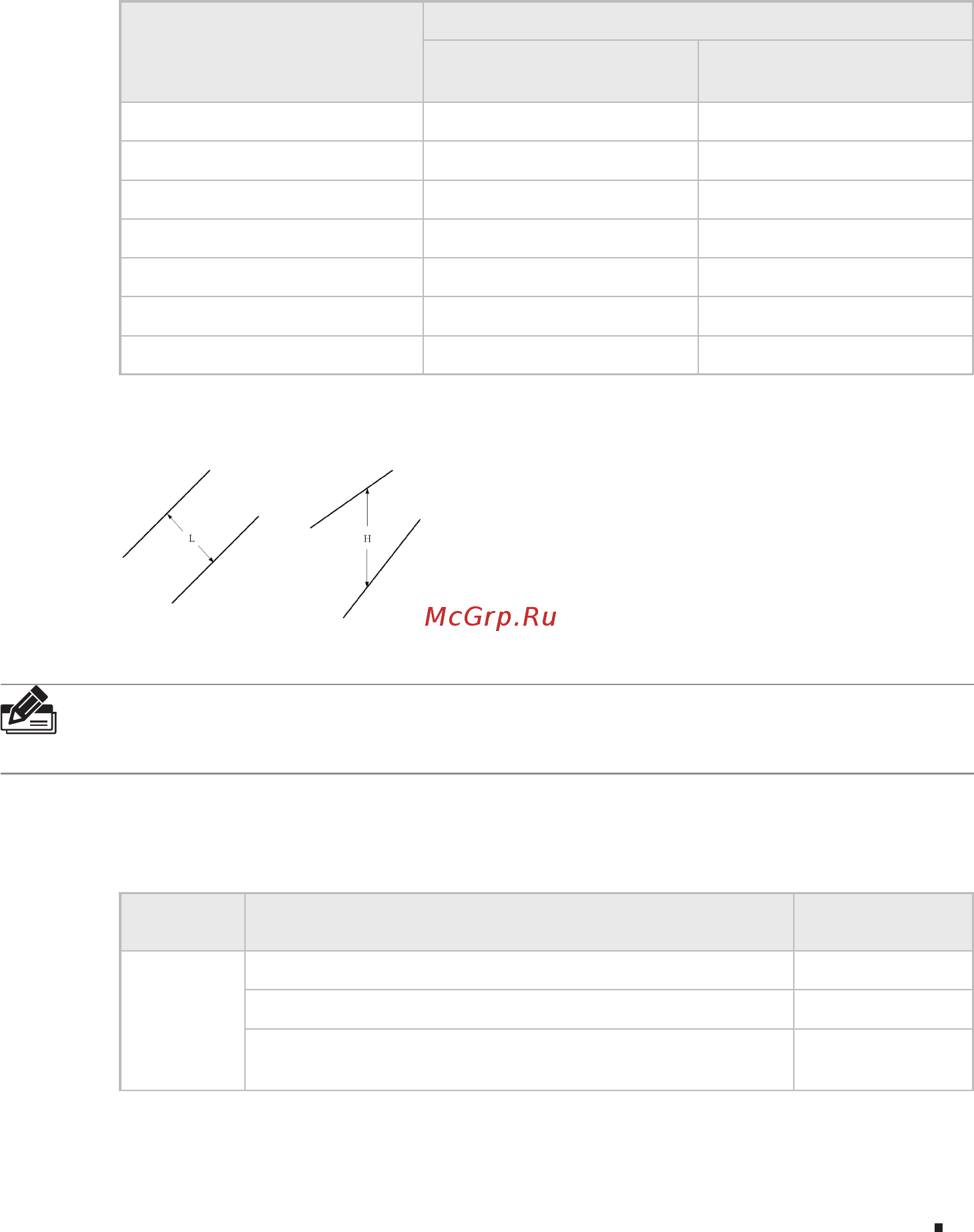

The two diagrams below demonstrate parallel net length and parallel-overlapping net

height.

Note: The above minimum net length/height is required when metal raceway is not

used. If any requirements cannot be met, you can add a steel tube or metal raceway

for shielding.

■

Requirements for the distance between Ethernet cable and high-power electric

devices are in following tables.

Cable Pave Way

Min Parallel

Length (mm)

<2kVA

powerline

Parallel cabling 130

One is in the grounded metal raceway or metal pipe 70

The both are in the grounded metal raceway or metal

pipe

Lightning Protection
