02
16/24-Port Gigabit Easy Smart Switch
Introduction
LEDs
LED Status Indication
Power
On The switch is powered on
Off The switch is powered off or power supply is abnormal
Link/Act
On
There is a device linked to the corresponding port but
no activity
Flashing The corresponding port is transmitting or receiving data
Off There is no device linked to the corresponding port
1000Mbps
On
A 1000Mbps device is connected to the corresponding
port
Off
A 10/100Mbps device or no device is connected to the
corresponding port
Reset
Press this button for five seconds or above to reset the software setting back to
factory default settings.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.
■
Rear Panel

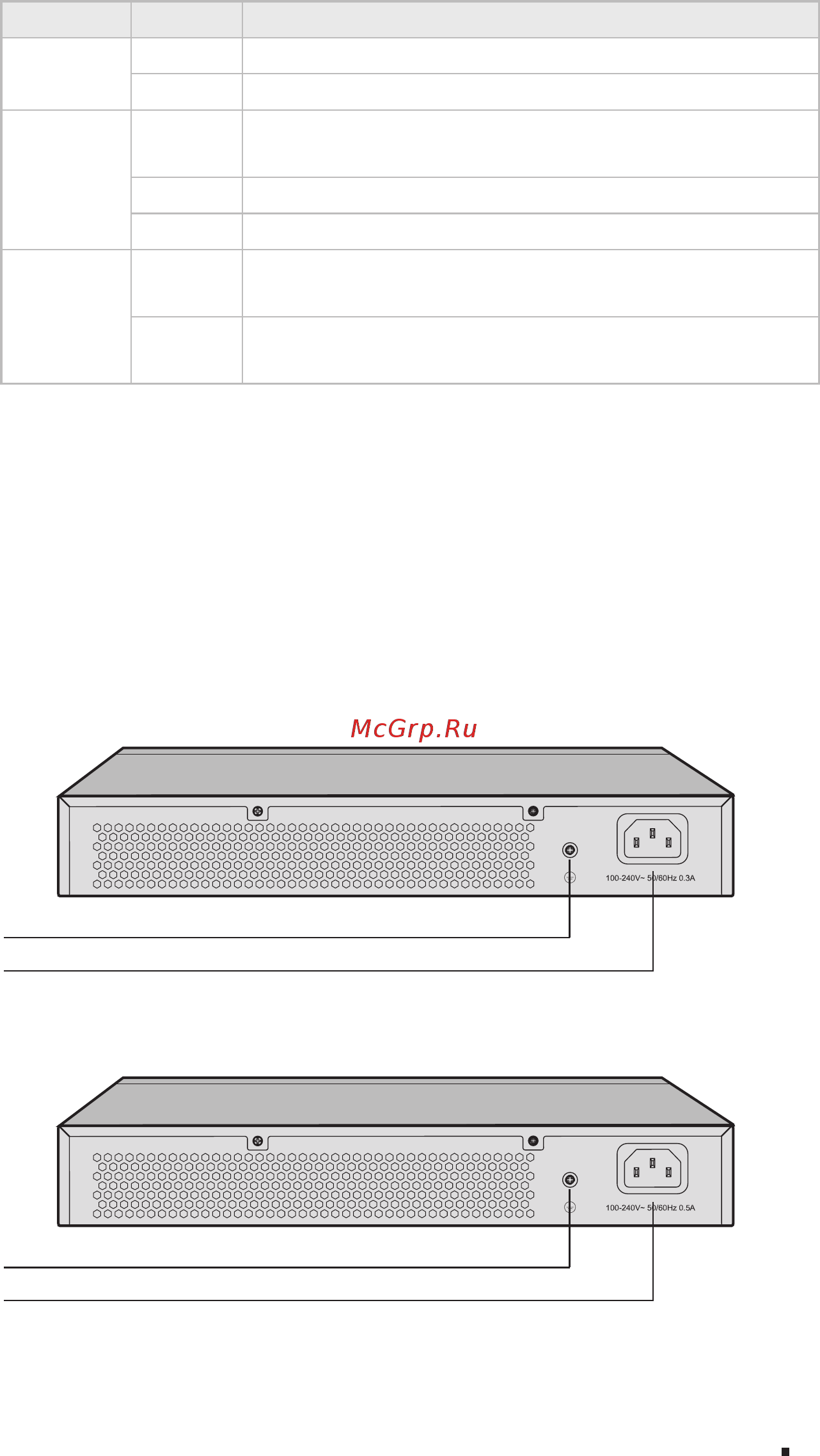

The rear panel of TL-SG1016DE is shown as the following figure.
Grounding Terminal
Powe r So cket
Figure 1-3 Rear Panel of TL-SG1016DE
The rear panel of TL-SG1024DE is shown as the following figure.
Grounding Terminal
Powe r So cket
Figure 1-4 Rear Panel of TL-SG1024DE
