2.2.2 Rear Panel

 TL-SG105E/TL-SG108E/TL-SG108PE

The rear panel of TL-SG105E/TL-SG108E/TL-SG108PE features a power socket and a

Kensington Security Slot (marked with

). TL-SG105E also has a Reset button located on the rear

panel.

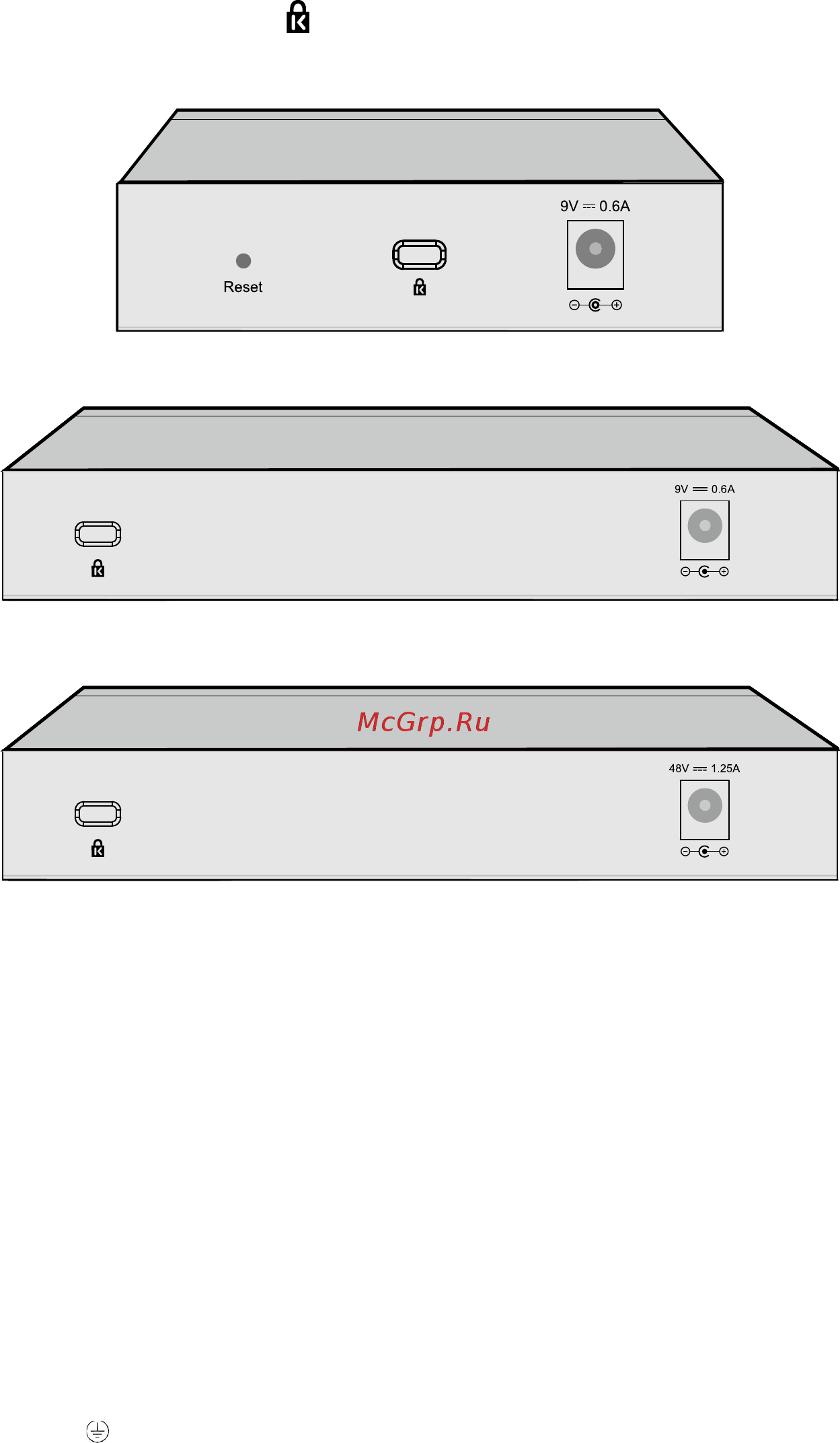

Figure 2-6 Rear Panel of

TL-SG105E

Figure 2-7 Rear Panel of

TL-SG108E

Figure 2-8

Rear Panel of TL-SG108PE

 Reset: With the switch powered on, press this button for five seconds or above to reset the

software setting back to factory default setting. (For TL-SG105E only)

 Kensington Security Slot: Secure the lock (not provided) into the security slot to prevent the

device from being stolen.

 DC Power Socket: Connect the female connector of the power cord here, and the male

connector to the DC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage.

 TL-SG1016DE/TL-SG1024DE

The rear panel of TL-SG1016DE/TL-SG1024DE features a power socket and a Grounding

Terminal (marked with
