Chapter 4 System
The System module is mainly for basic settings of the switch, including four submenus: System
Info, IP Setting, User Account and System Tools.
4.1 System Info
On this page you can view the system information and define the device description.
Choose the menu System→System Info to load the following page.

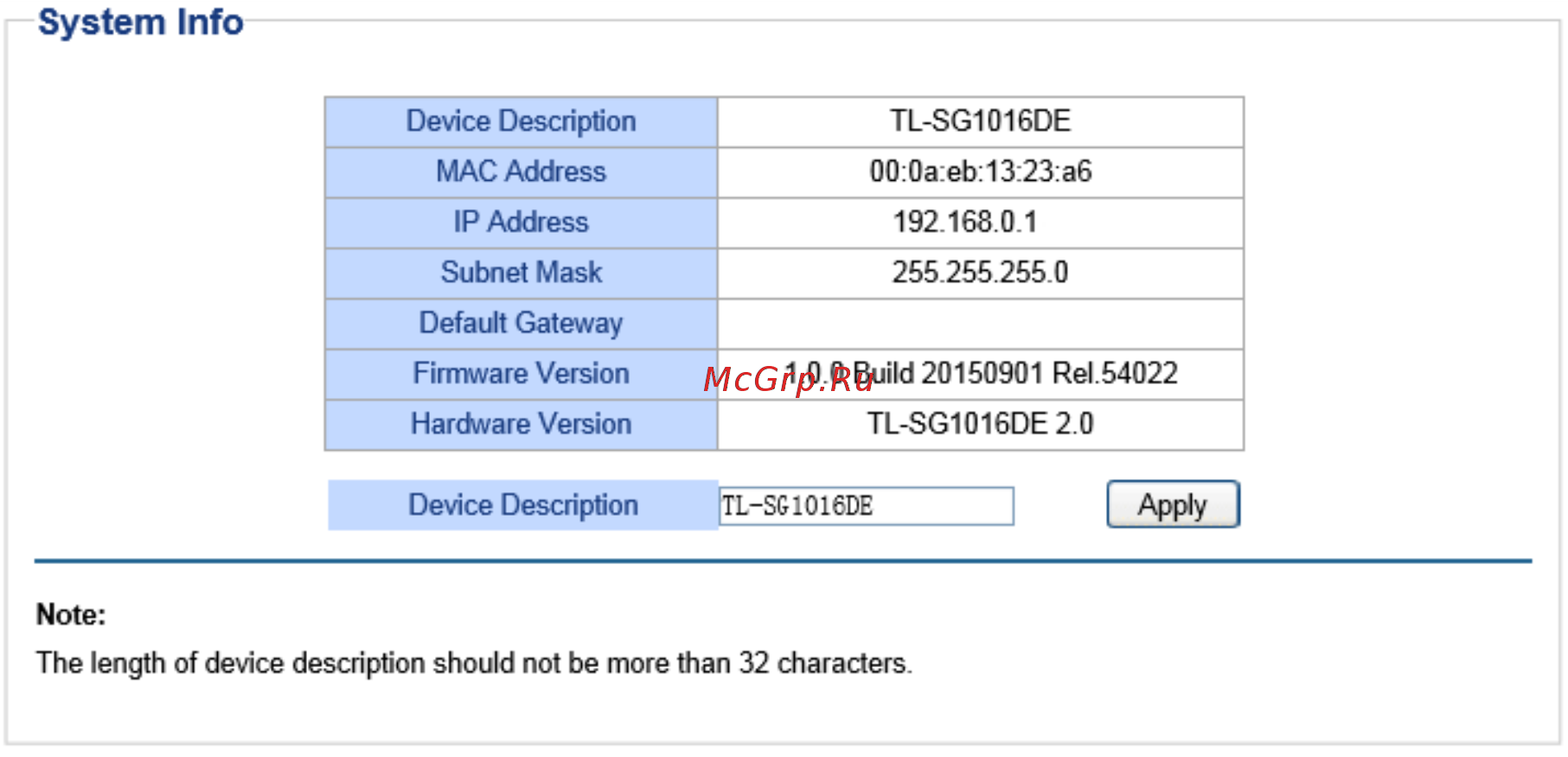

Figure 4-1 System Info
The following entries are displayed on this screen:
System Info
Device Description: Displays the device model number.
MAC Address: Displays the MAC address of the switch.
IP Address:
Displays the system IP address
of the switch. The default system
IP is 192.168.0.1 and you can change it appropriate to your needs.
Subnet Mask: Displays the subnet mask of the switch.
Default Gateway: Displays the default gateway of the switch.
Firmware Version:
Displays the installed software version number.
Hardware Version:
Displays the installed device hardware version number.
Device Description: Give a description to the device for identification.
4.2 IP Setting
Each device in the network possesses a unique IP Address. You can log on to the Web
management page to operate the switch using this IP Address.
On this page you can get and modify the network parameters of the switch.
11
