User’s Guide for DS1000B Series

2-71

(2) By Commands

DS1000B is a USB TMC (USB Test & Measurement Class) instrument, which

could be controlled by commands on the basis of NI-VISA (NI-National

Instrument, VISA-Virtual Instrument Software Architecture) or Agilent-VISA (for

the details about commands, refer to the relative Programming Guide). USB or

network is recommended for the communication between the instrument and a

PC to integrate it into your testing system.

The library related to VISA should be installed before using it. If both the

NI-VISA and Agilent-VISA were installed in your computer, it would automatically

identify the available VISA driver. Only one VISA driver is recommended to be

used in a computer such as NI-VISA (visit

www.ni.com to download). Here we

show you NI-VISA as an example:

 Make a connection by network

 After the network is properly connected, the oscilloscope will automatically

detect it and make configuration.

 In Measurement & Automation Explorer, select “Device and Interface” →

“Create New”.

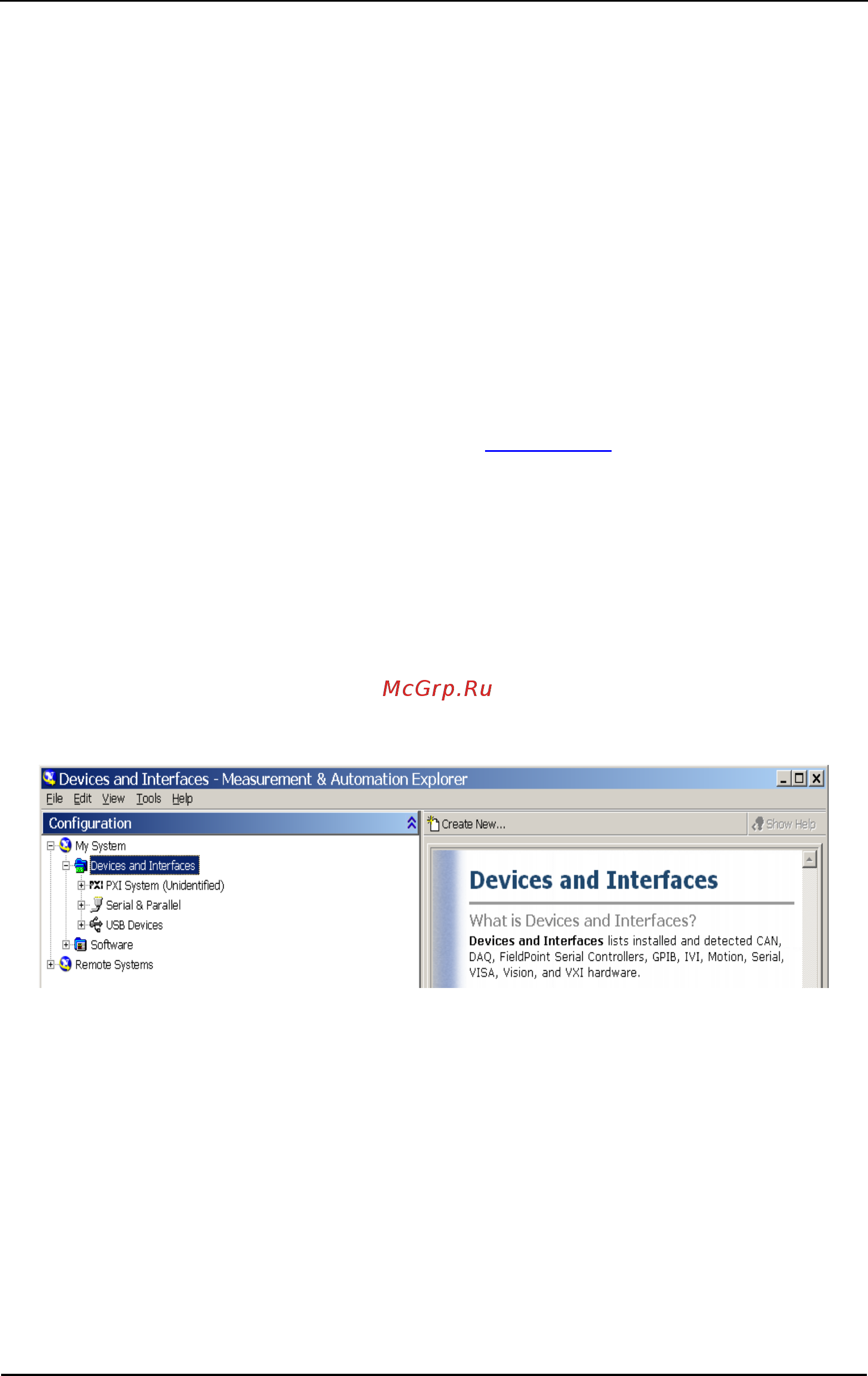

Figure 2-92

Measurement & Automation Explorer interface

 Select “VISA TCP/IP Resource” in the dialog “Create New…” appeared.
