RIGOL
User’s Guide for DS1000B series
2-72

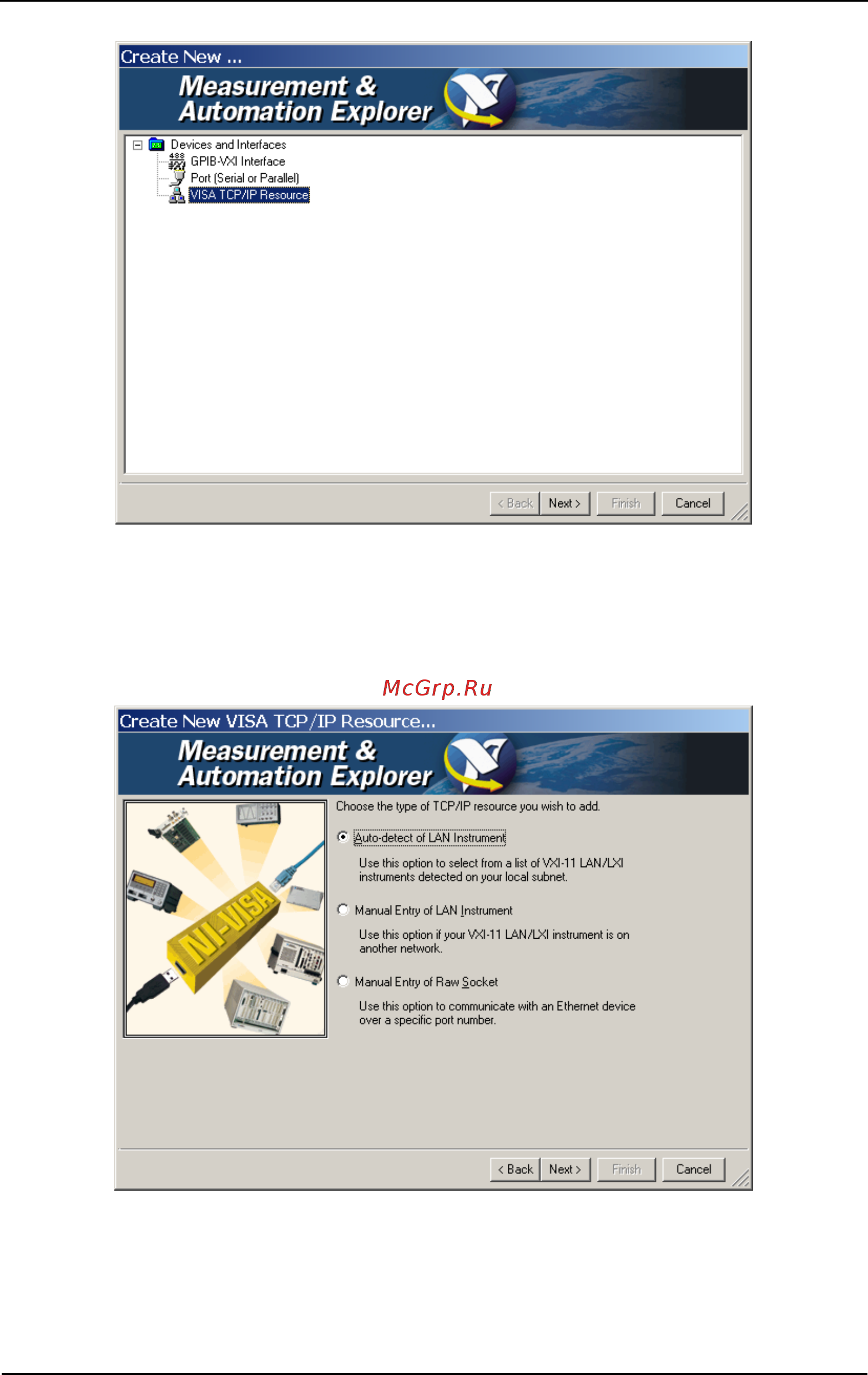

Figure 2-93
VISA TCP/IP Resource interface
Click “Next” and select “Auto-detect of LAN Instrument”.
Figure 2-94
Auto-detect of LAN Instrument interface
