RIGOL

User’s Guide for DS1000B Series

2-73

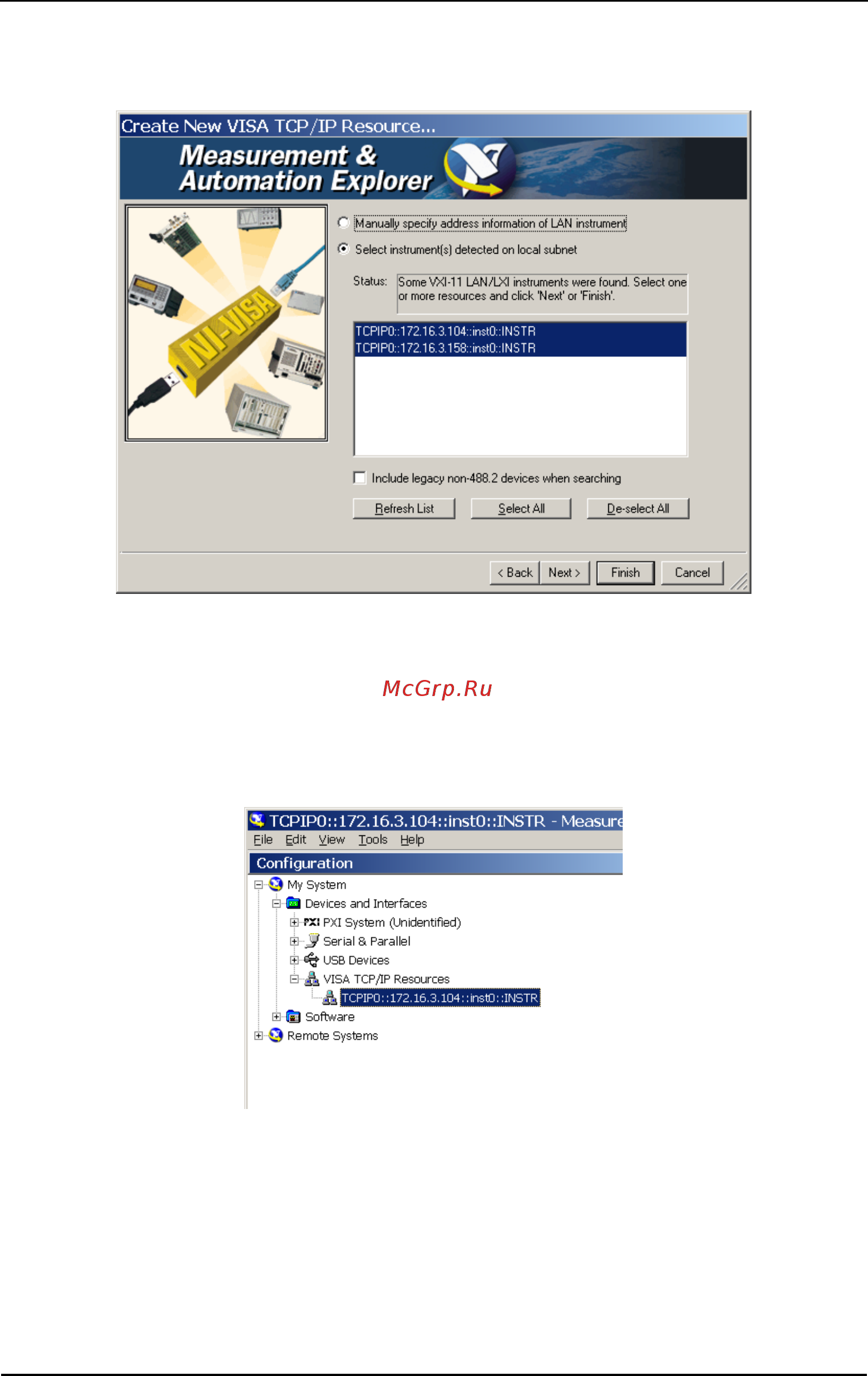

 The software searching the available network device automatically.

Figure 2-95

Search the network device interface

 Click “Finish” and you will see the oscilloscope that has been accessed to the

network from the subdirectory “VISA TCP/IP Resource” under the main Explorer

interface.

Figure 2-96

Subdirectory of VISA TCP/IP Resource

 Choose a relative resource and open the communication testing panel to send

commands and read the data.
