RIGOL

User’s Guide for DS1000B series

2-74

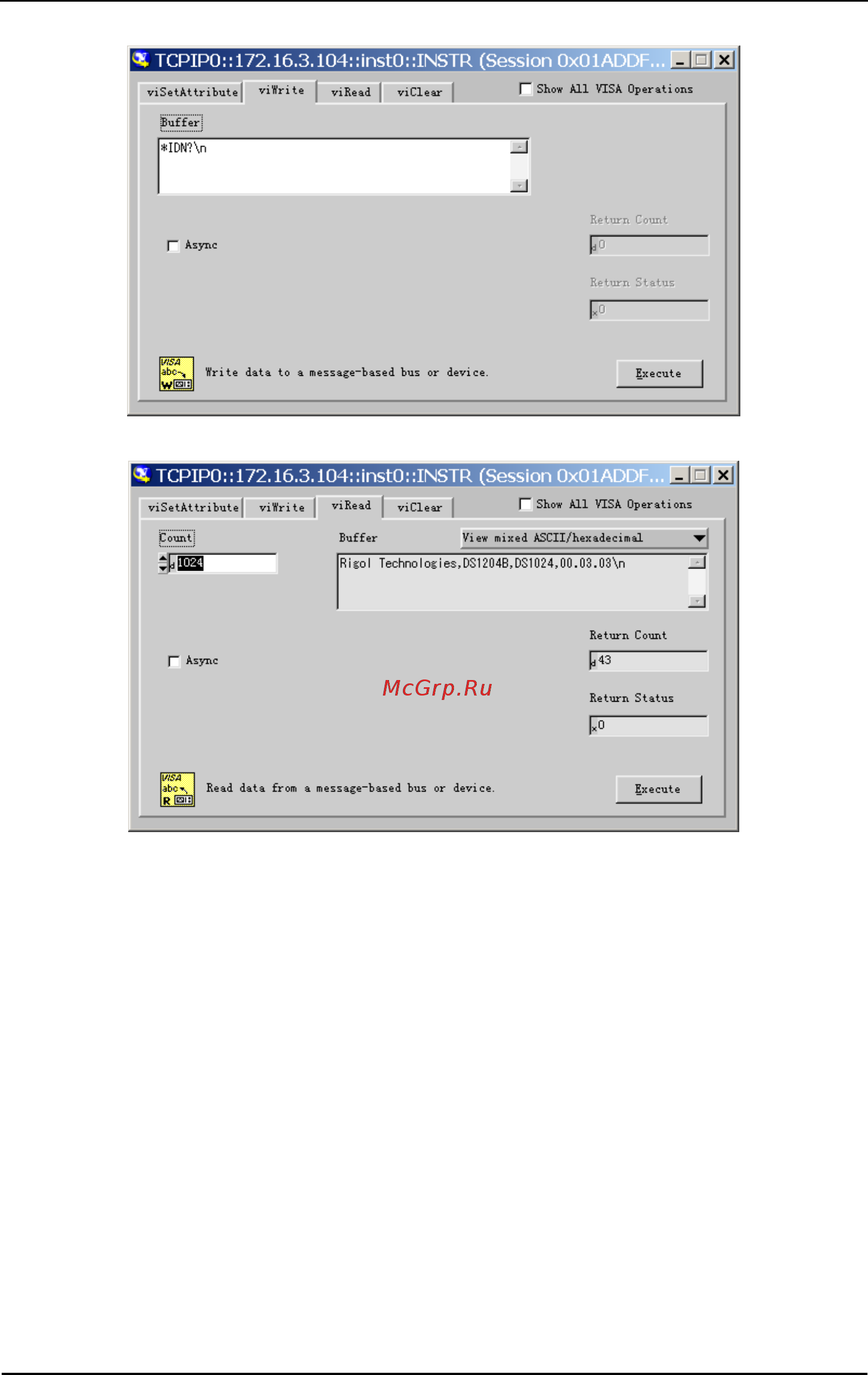

Figure 2-97

Communication testing dialog

 Make a connection by USB

 Connect the oscilloscope to a PC by using an USB data cable. Then, turn on the

oscilloscope, at the moment, the computer will pop up a Hardware Installation

wizard and please install the “USB Test and Measurement Device” according to

the wizards.

 After installation, open Measurement & Automation Explorer and you will

see the information about USB device that has been connected in the

subdirectory.
