- 18 -GA-8IPE1000 Series Motherboard
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply

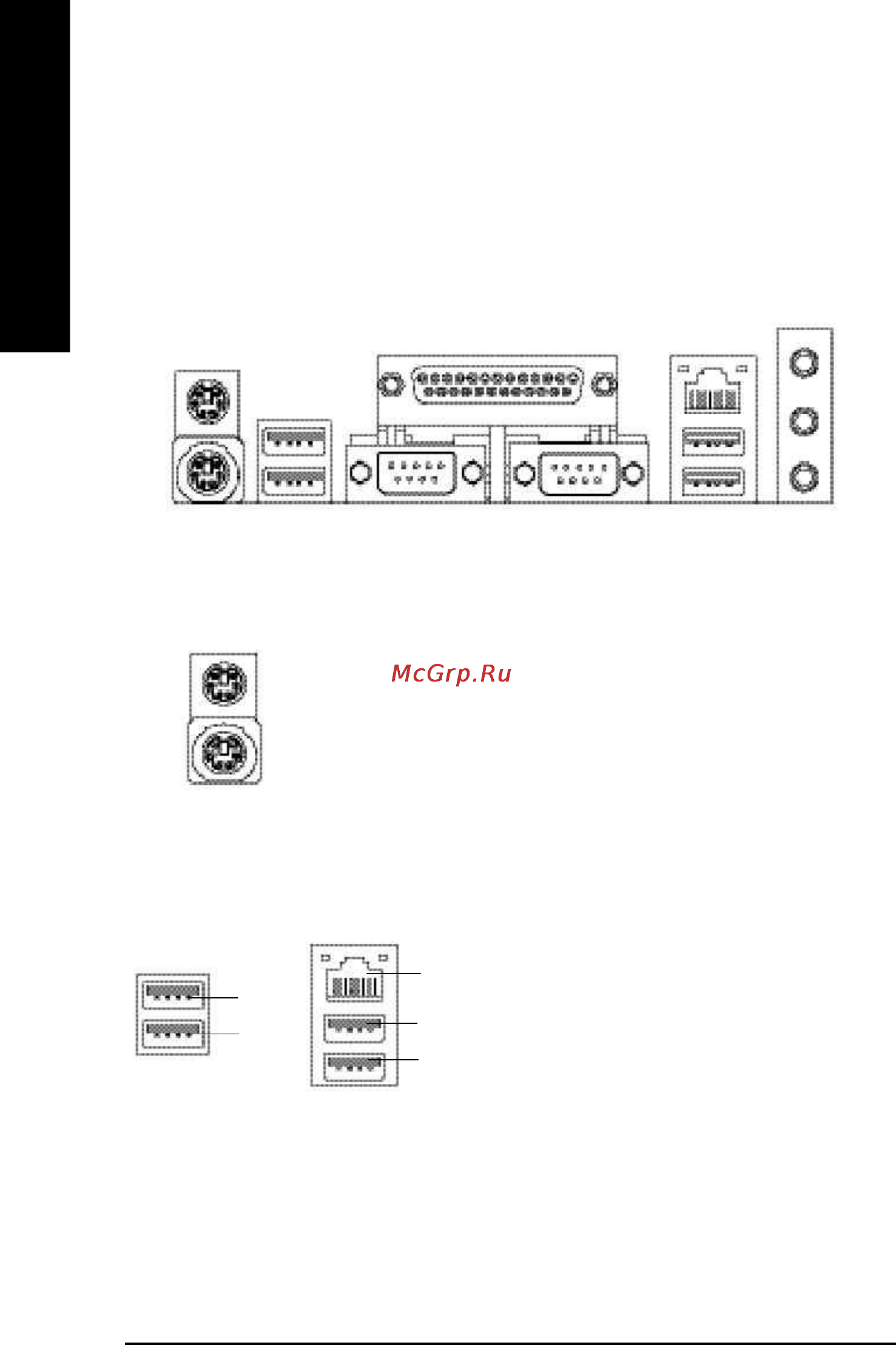

Step 4-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
Ø This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
u
v
w x
y
v/x USB / LAN Connector
Ø Before you connect your device(s) into USB
connector(s), please make sure your
device(s) such as USB keyboard,mouse,
scanner, zip, speaker..etc. Have a standard
USB interface. Also make sure your OS
supports USB controller.
If your OS does not support USB controller,
please contact OS vendor for possible patch
or driver upgrade. For more information
please contact your OS or device(s) vendors.
LAN
(
*
Yu)
USB 3
USB 2
USB 4
USB 5
(*) For GA-8IPE1000 Pro only.
(
Y
) For GA-8IPE1000 Pro2 only.
(
u
) For GA-8IPE1000-L only.
