Gigabyte GA-GC220 (rev. 1.0) [42/72] 2 software applications

GA-GC220 Motherboard - 42 -

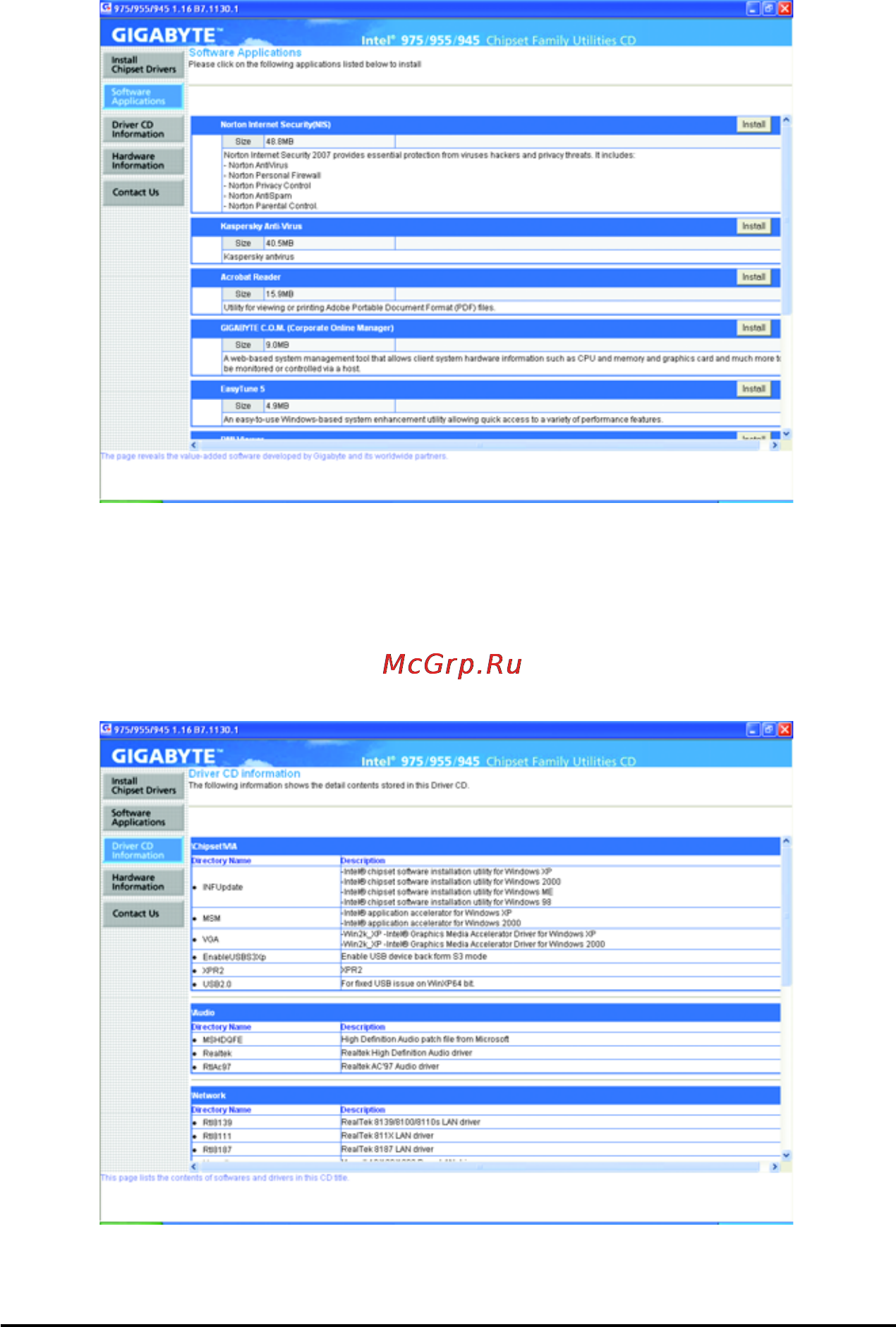

3-2 Software Applications

This page displays all the tools and applications that GIGABYTE develops and some free software. You

may press the Install button following an item to install it.
