GA-GC220 (rev. 1.0)
Инструкция по эксплуатации Страница: 43

Gigabyte GA-GC220 (rev. 1.0) [43/72] 4 hardware information

Drivers Installation- 43 -

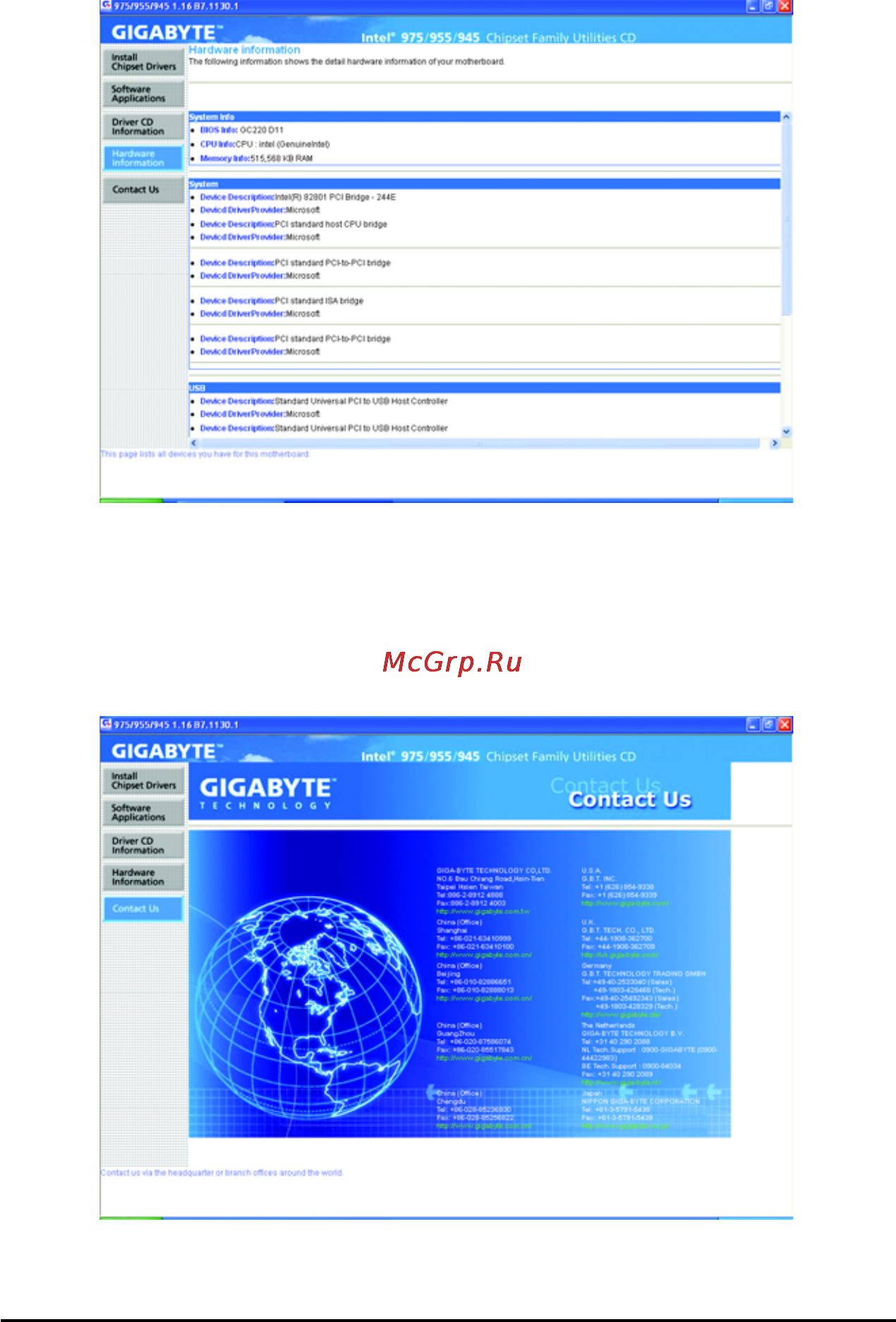

3-4 Hardware Information

This page provides information about the hardware devices on this motherboard.

3-5 Contact Us

Check the contacts information of the GIGABYTE headquarter in Taiwan and the overseas branch

offices on the last page of this manual.
