Chapter 1 Get to Know Your Multy WiFi System
Multy WiFi System User’s Guide
8
1.5.1 WSQ50 Installation
If your Multy Device comes with mounting holes at the bottom, you can use mounting brackets to
attach it to a wall or ceiling. If not, you have to place it on a desk, table, shelf, etc.

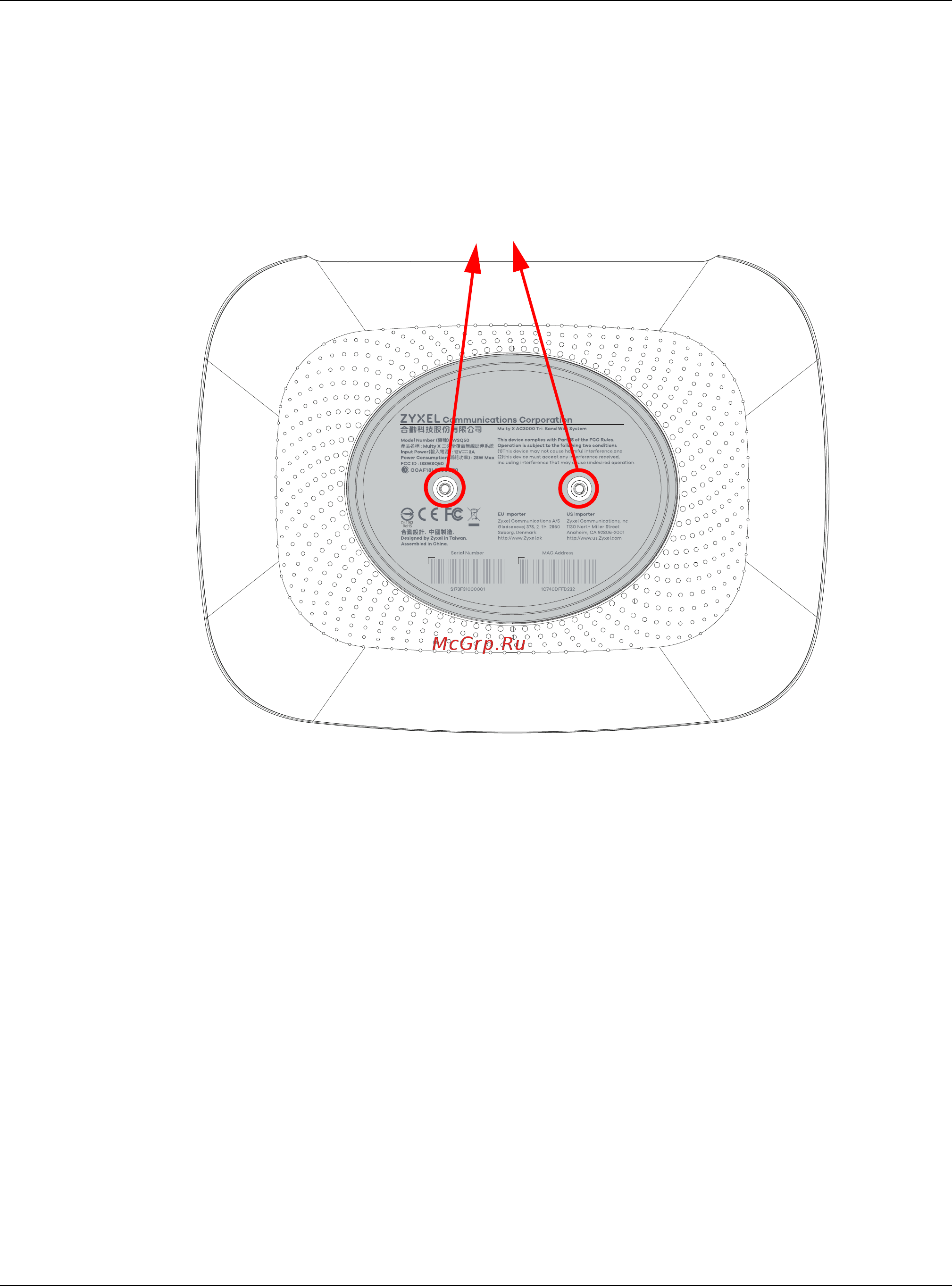

Figure 3 WSQ50 Mounting Holes
1.5.2 WSR30 Installation
There are two ways to set up your WSR30 Multy Device:
• You can attach the leather strap to the hole at the top of your Multy Device to hang it to a wall or
ceiling, as shown in Figure 4 on page 9.
• You can also use the back port cover as a stand by attaching it to the bottom of the Multy Device
(shown blue in Figure 5 on page 9).
Mounting Holes
