Install Drivers- 51 -
English
3-4 Hardware Information

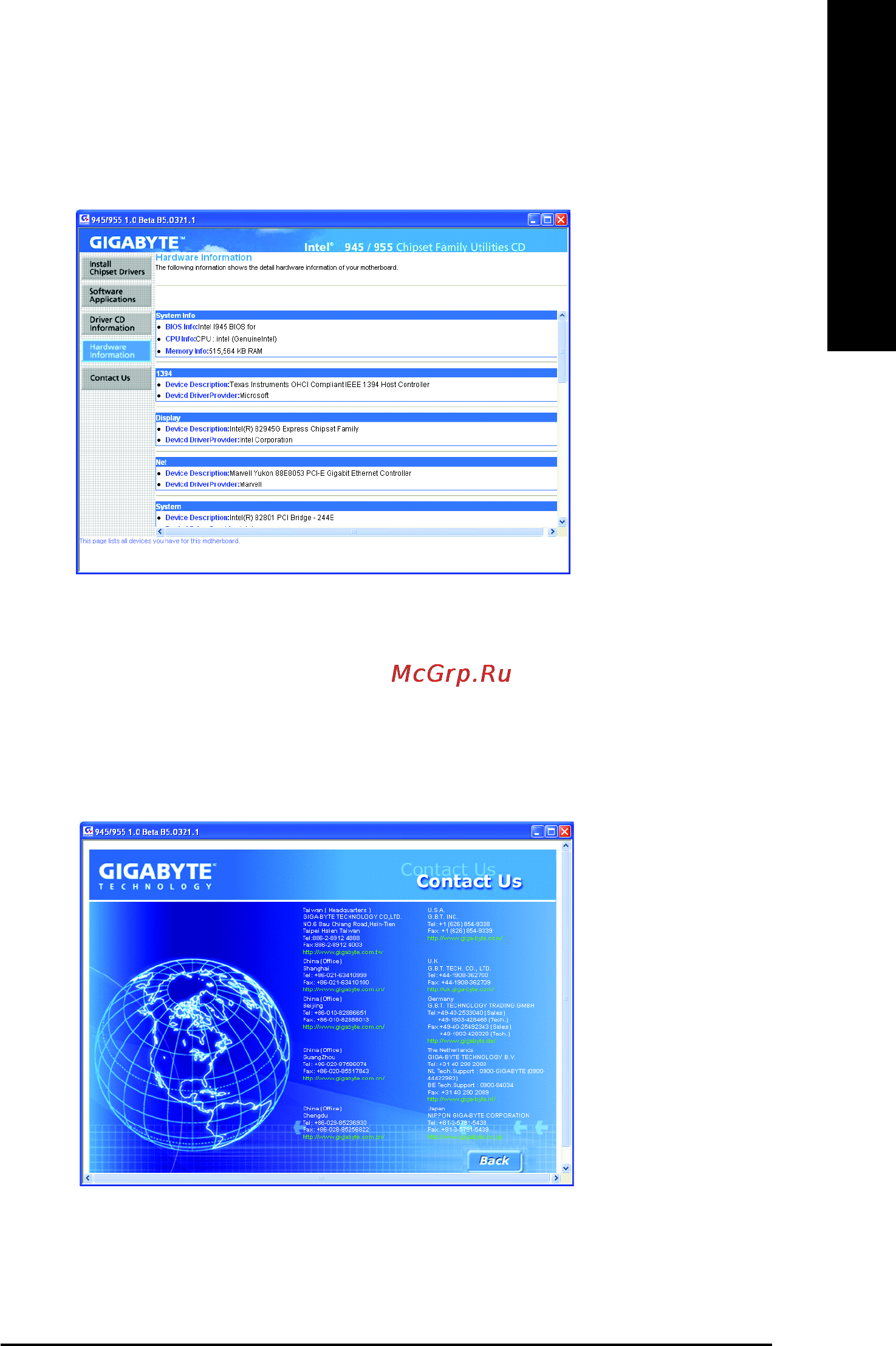

This page lists all device you have for this motherboard.
3-5 Contact Us
Please see the last page for details.
8I945PMF F2
