Instruction Manual
1. Safety Instructions
• The device is not recommended to be placed on low thermal conductive surface. For
example, plastics.
• For safety reasons, please ensure the mounted device is kept at ≥ 4mm safety distance at
all sides from other components and equipments (Refer to Fig. 2). Please insert an
insulation sheet between the system and product, if the safety distance is < 4mm.
• Note that the enclosure of the device can become very hot depending on the ambient
temperature and load of the power supply. Do not touch the device while it is in operation
or immediately after power is turned OFF. Risk of burning!
• Do not touch the terminals while power is being supplied. Risk of electric shock.
• Prevent any foreign metal, particles or conductors from entering the device through the
openings during installation. It may cause: - Electric shock; Safety Hazard; Fire; Product
failure.
• Warning: The power supply must be mounted by metal screws onto a grounded metal
surface. It is highly recommended that the Earth terminal on the connector be connected
to the grounded metal surface.
For Open Frame type of installation, ensure the power supply’s Protective Earthing
(Marked “PE” in Fig. 1) point is connected to the system’s Protective Earthing (PE). It is
also recommended that the input FG (Fig. 1 location 1 ) be connected to the system’s PE.
2. Device Descriptions
Refer to Fig. 1.:
1 Input terminal block connector
2 Output terminal block connector (V−)
3 Output terminal block connector (V+)
4 Remote ON/OFF function connector (Option)
5 DC voltage adjustment potentiometer
3. Installation of the Device
Refer to Fig. 1.:
A Mounting holes for the Enclosed type of power supply (device). The device shall be
mounted on minimum of 3 mounting holes using M4 screw of minimum 5mm length.
Recommended mounting torque for tightening: 4~8Kgf.cm. For the other mounting
holes without screw threads, please use suitable screw and nut.
Mounting holes for the Open Frame type of power supply (device). The device shall
be mounted on minimum of 4 mounting holes using M3 screw of minimum 5mm
length. Recommended mounting torque for tightening: 4~8Kgf.cm.
B This surface belongs to customer’s end system or panel where the device is mounted.
• Use flexible cable (stranded or solid) of AWG No. 22-18. Please refer to Tab. 1 for the
recommended Housing and Terminal.
• For the Remote ON/OFF function, use flexible cable (stranded or solid) of AWG No. 28-22.
Tab. 1:
Connector (Board Mounting)
Housing
Terminal
Input (JST)
B3P5-VH(LF)(SN)
VHR-5N
SVH-21T-P1.1
Output (JST)(V−)
B7P-VH(LF)(SN)
VHR-7N
Output (JST)(V+)
B6P-VH(LF)(SN)
VHR-6N
Remote ON/OFF
Function (Option)
B2B-XH-A(LF)(SN) XHP-2 SXH-001T-P0.6
PJ-☐V150W☐☐☐
D1 = 4mm
D2 = 8mm (For Open Frame type)

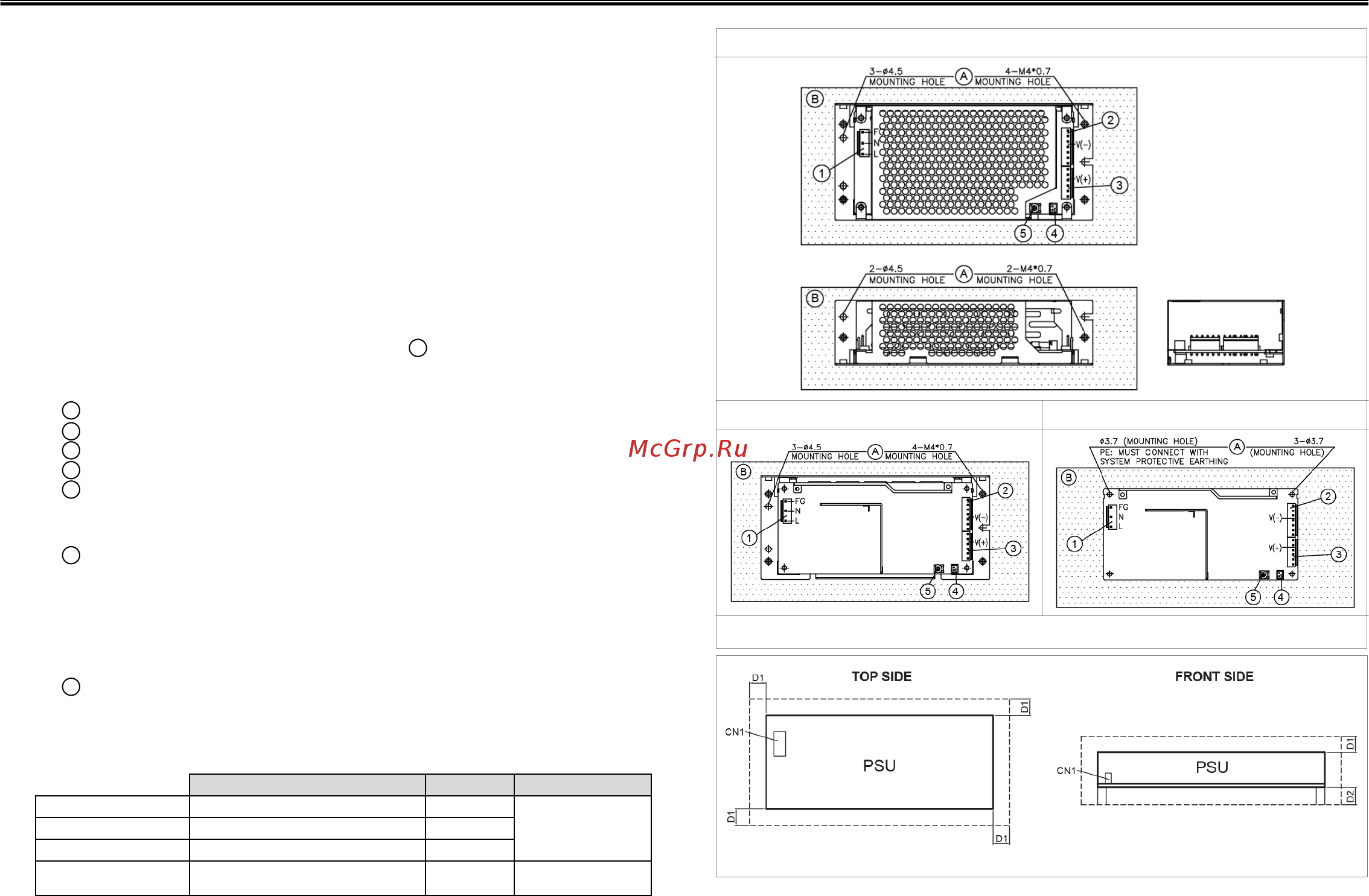

Fig. 1: Device Descriptions
PJ-☐V150WCNA: Enclosed (with cover and chassis)
PJ-☐V150WLNA: L Frame (without cover)
PJ-☐V150WBNA: Open Frame
