Chapter 2 Hardware Description

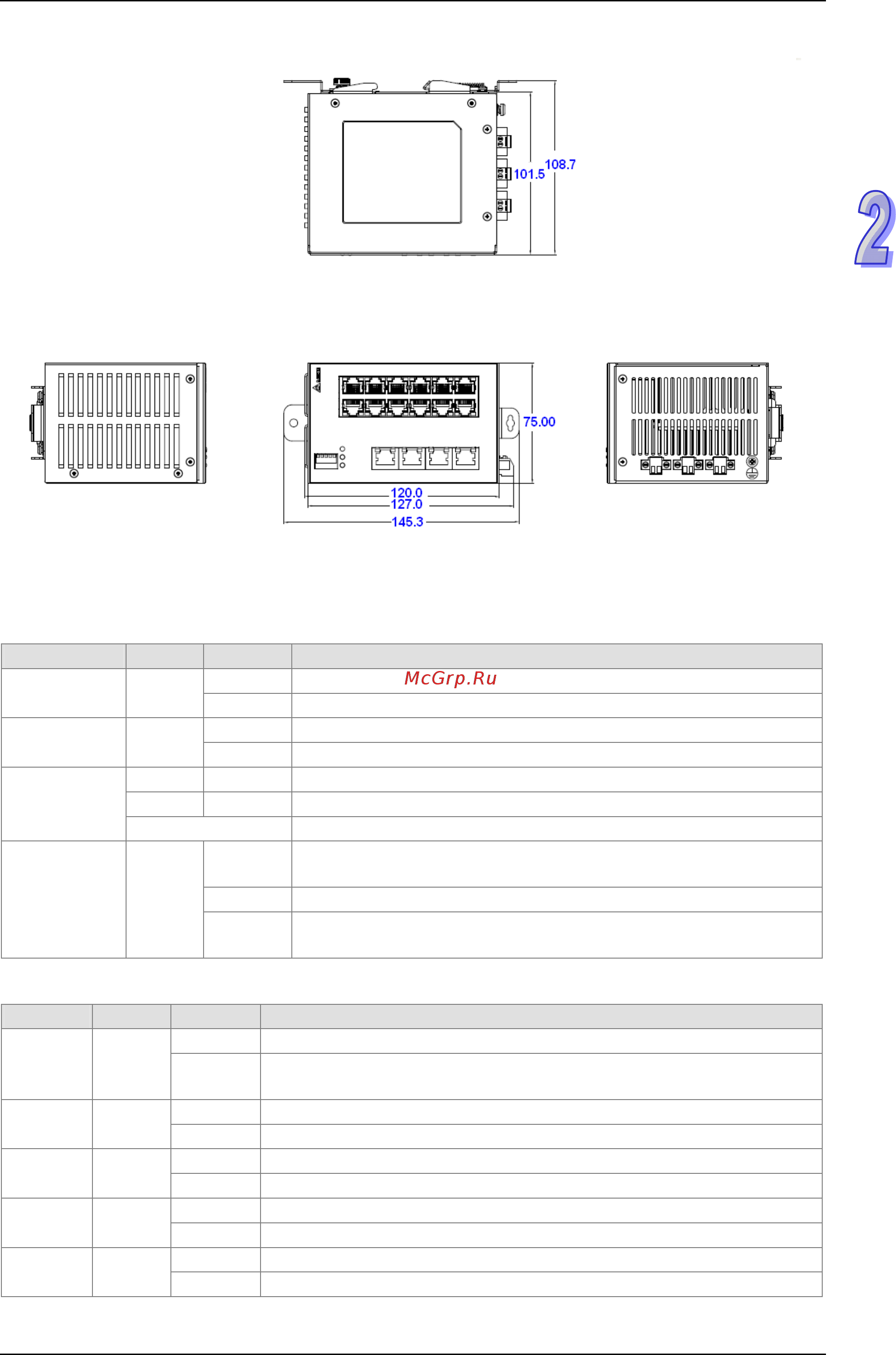

DVS-016W01/016W01-MC01/016W01-SC01

145.3(H) x 75(W) x 108.7(D) mm

2.3 LED Indicators

DVS-005I00 / DVS-008I00 / G005I00A / G008I00A

LED Color Status Description

ON The power is supplied normally.

PWR Green

OFF The power is not supplied.

ON The port is connected at a speed of 100 Mbps.

100M Orange

OFF The port is connected at a speed of 10 Mbps or disconnected.

Green ON The port is connected at a speed of 1000Mbps.

Orange ON The port is connected at a speed of 100Mbps.

10/100/1000M

OFF The port is connected at a speed of 10 Mbps or disconnected.

The Network communication connection has been

established.

Blinking The data is being transmitted.

LINK/ACT Green

OFF

The Network communication connection has not been

stablished.

DVS-005W01 / DVS-008W01 / DVS-016W01

LED Color Status Description

ON The communication is interrupted, or there is a power failure.

ALARM Red

OFF

The communication is not interrupted, or there is no power failure.

The DIP switch is not enabled.

ON The power is supplied normally.

PWR1 Green

OFF The power is not supplied.

ON The power is supplied normally.

PWR2 Green

OFF The power is not supplied.

ON The port is connected at a speed of 100 Mbps.

100M Orange

OFF The port is connected at a speed of 10 Mbps or disconnected.

ON The Network communication connection has been established.

LINK/ACT Green

Blinking The data is being transmitted.

2-25
