3.2 Wall Mounting

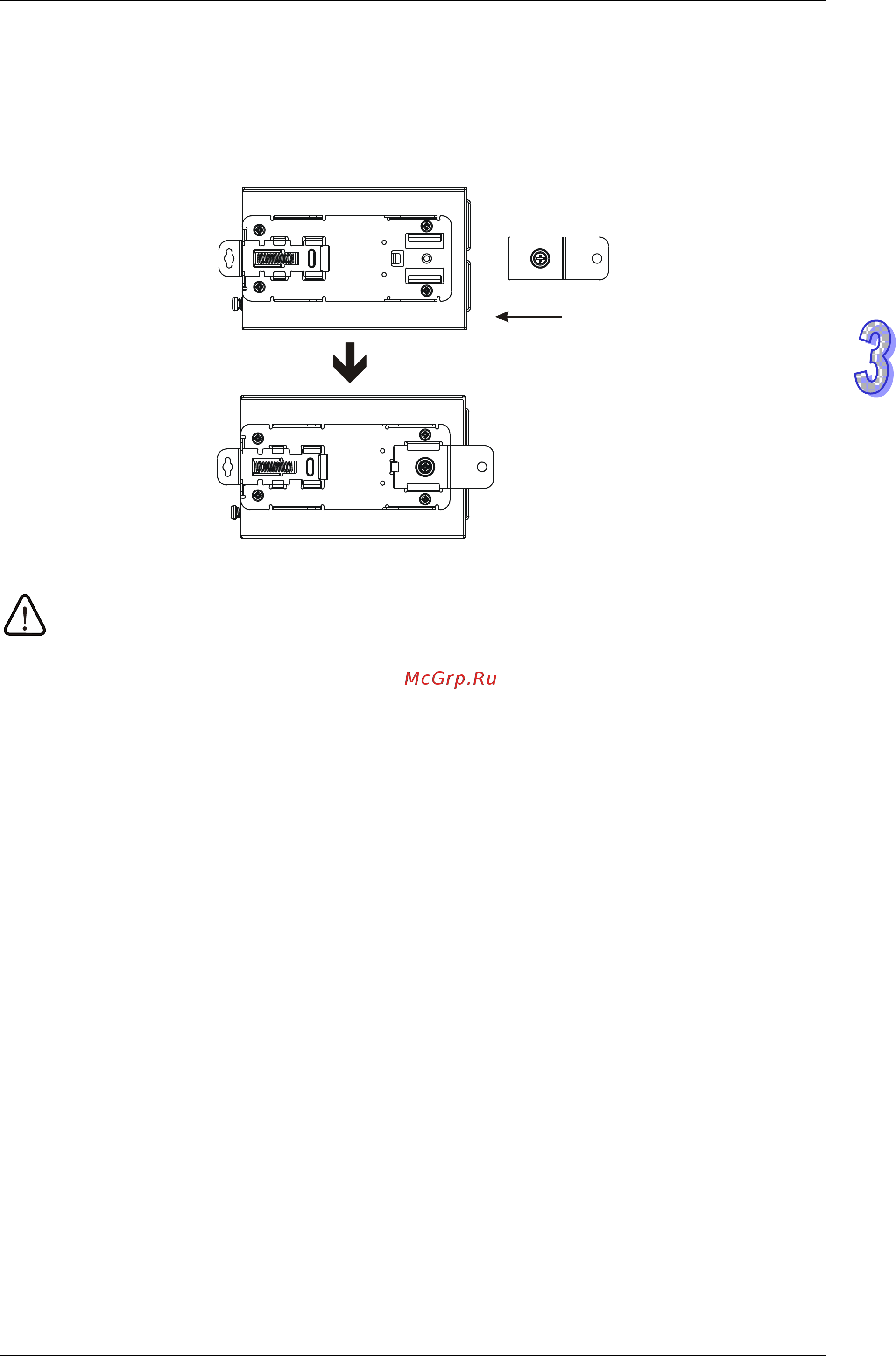

Step 1: Insert the wall mounting bracket into the slot on the rear panel of the DVS series switch, and

tighten the screw on it, as shown in the diagram below.

Step 2: Place the wall mounting bracket in an appropriate position, and tighten the two screws on

the bracket and the DIN clip.

Please install the DVS with necessary airflow applied, and sufficient space around it to

allow heat dissipation.
