5.2 Descriptions of Wiring
This chapter illustrates how wiring is done for this panel.
■
Measured Voltage:
When measured voltage is higher than the rated speci cation (refer to Electrical Speci cation 9.1) for
the device, use of an external potential transformer should be considered.
■
Measured Current:
When measured current is higher than the rated speci cation (refer to Electrical Speci cation 9.1) for
the device, use of an external current transformer should be considered.
■
Supported Methods of Wiring:

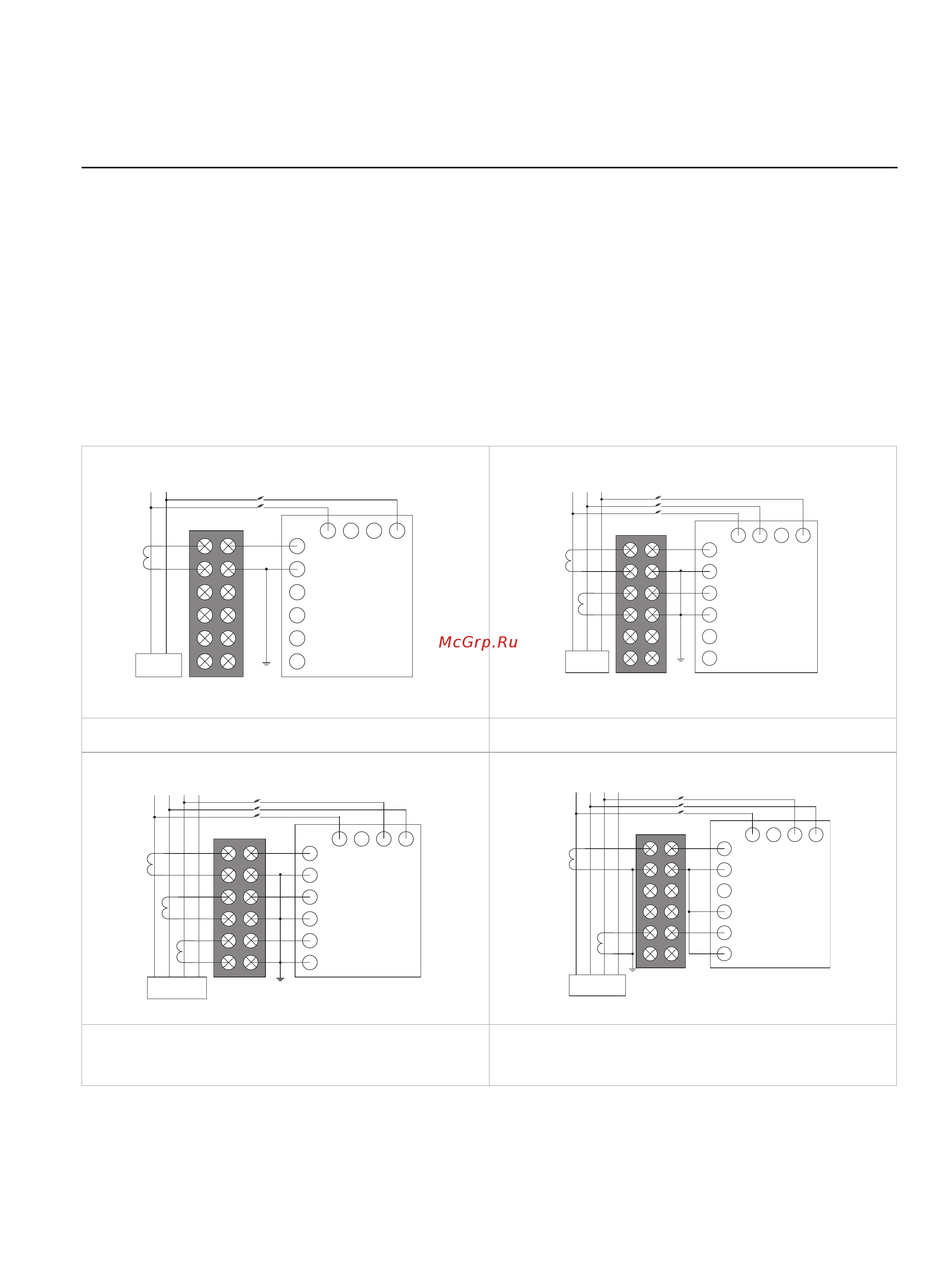

Diagram 5 - 1: One - phase two - wire, 1 CT Diagram 5 - 2: One - phase three - wire, 2 CT
Diagram 5 - 3: Three - phase three - wire,
Δ Delta - connection, 3 CT, No PT
Diagram 5 - 4: Three - phase three - wire,
Δ Delta - connection, 2 CT, No PT
A
N
I1+
I1-
I2+
I2-
I3+
I3-
V1
V2 V3 Vn
Load
I1+
I1-
I2+
I2-
I3+
I3-
V1
V2 V3 Vn
A N
B
Load
I1+
I1-
I2+
I2-
I3+
I3-
V1
V2 V3 Vn
A N
B
C
Load
I1+
I1-
I2+
I2-
I3+
I3-
V1
V2 V3 Vn
A N
B
C
Load
