Chapter 2 Installation AFE2000 Series

2-7

Chapter 2 Installation

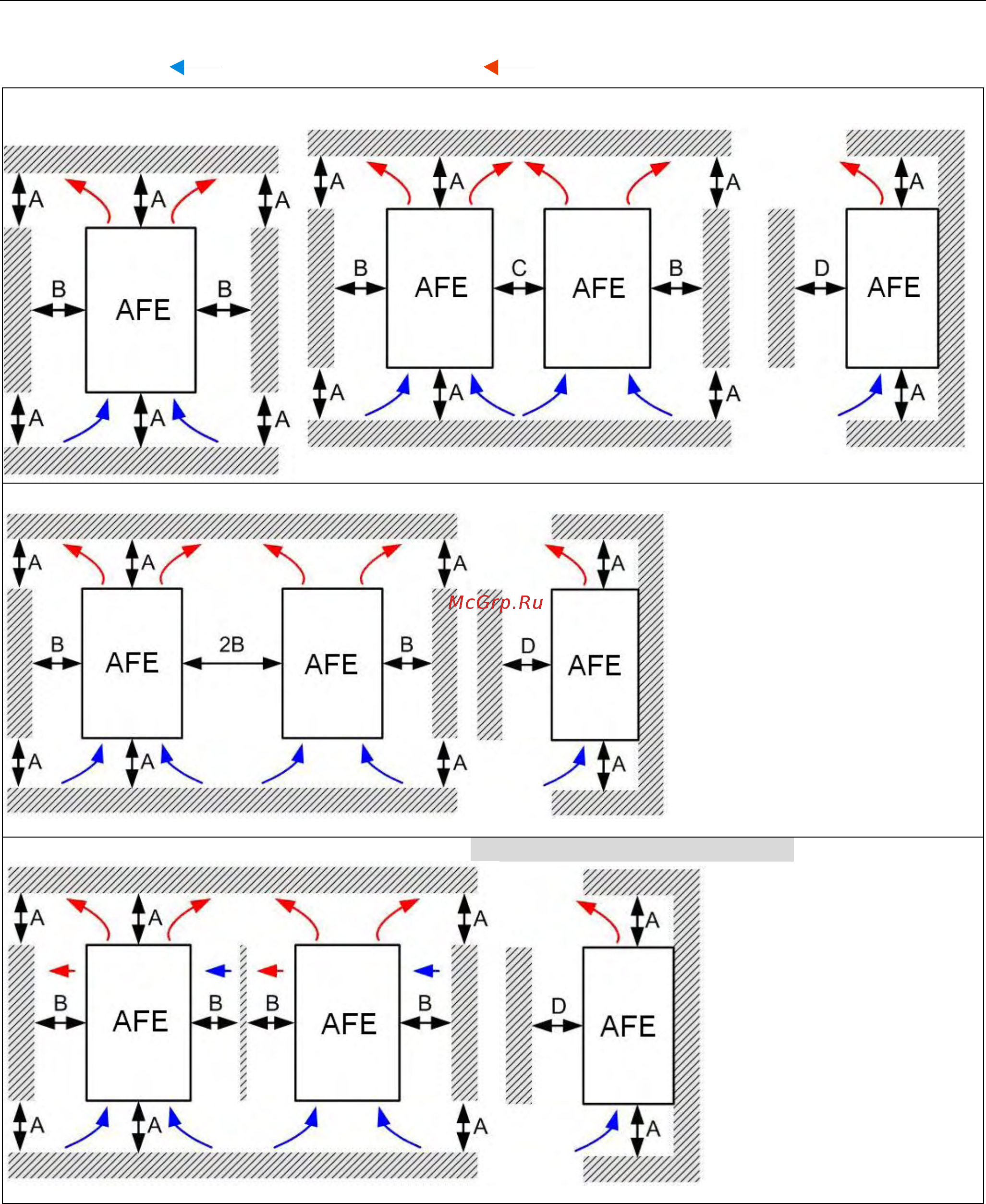

The appearances shown in the following figures are for reference only.

Airflow direction: (Blue arrow) inflow (Red arrow) outflow

Single driv installation

(Frame B-D)

Side-by-side installation (Frame B-C)

Multiple drives installation side-by-side (Frame B,C)

Multiple drives installation side-by-side (Frame D) Install a barrier between the drives
