- 8 -
Only for GA-8I915GM-G

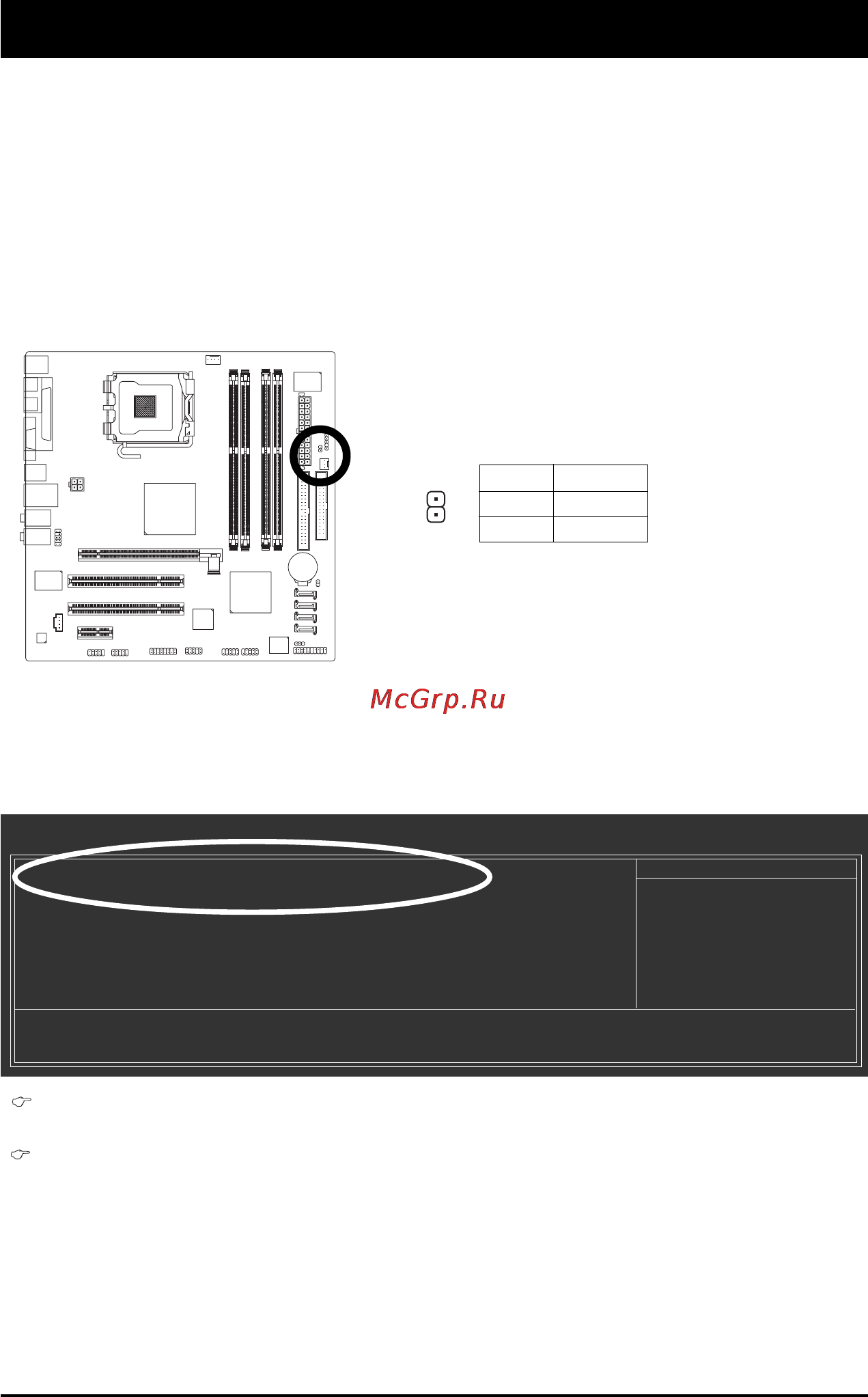

CI (Chassis Intrusion, Case Open)
This 2-pin connector allows your system to enable or disable the "Case Open" item in BIOS, if the
system case begin remove.
1
2-6 PC Health Status
(For example: BIOS Ver. : F5)
Reset Case Open Status
Case Opened
If the case is closed, "Case Opened" will show "No".
If the case have been opened, "Case Opened" will show "Yes".
If you want to reset "Case Opened" value, set "Reset Case Open Status" to
"Enabled" and save CMOS, your computer will restart.
Pin No. Definition
1 Signal
2 GND
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
PC Health Status
Reset Case Open Status [Disabled]
Case Opened Yes
Vcore OK
DDR25V OK
.
.
.
KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Save Default F7: Optimized Defaults
Item Help
Menu Level`
Onboard LAN Onboard Realtek 8110S chip (10/100/1000 Mbit)
