GA-8I915G Pro Motherboard - 18 -
English

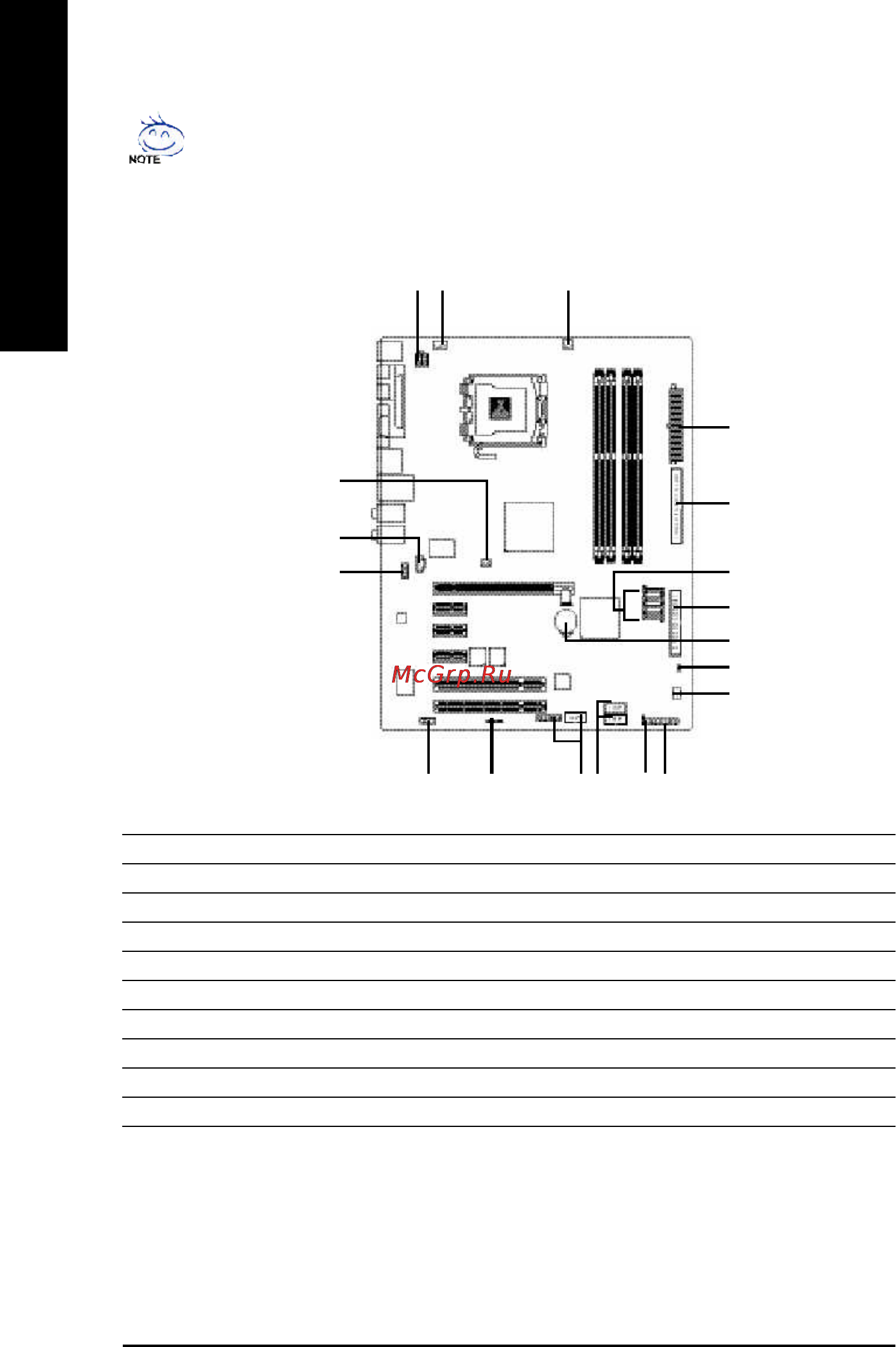

1-7 Connectors Introduction
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) PWR_FAN
6) NB_FAN
7) FDD
8) IDE
9) S_ATA1/S_ATA2/S_ATA3/S_ATA4
10) PWR_LED
11) F_PANEL
12) AZALIA_FP
13) CD_IN
14) F_USB1 / F_USB2
15) F1_1394 / F2_1394
16) IR
17) COMA
18) CLR_CMOS
19) BAT
2
1
13
4
18
8
3
11
12
151617
10
14
7
5
9
19
You can use audio software to configure 2-/4-/5.1-/7.1-channel audio functioning.
6
