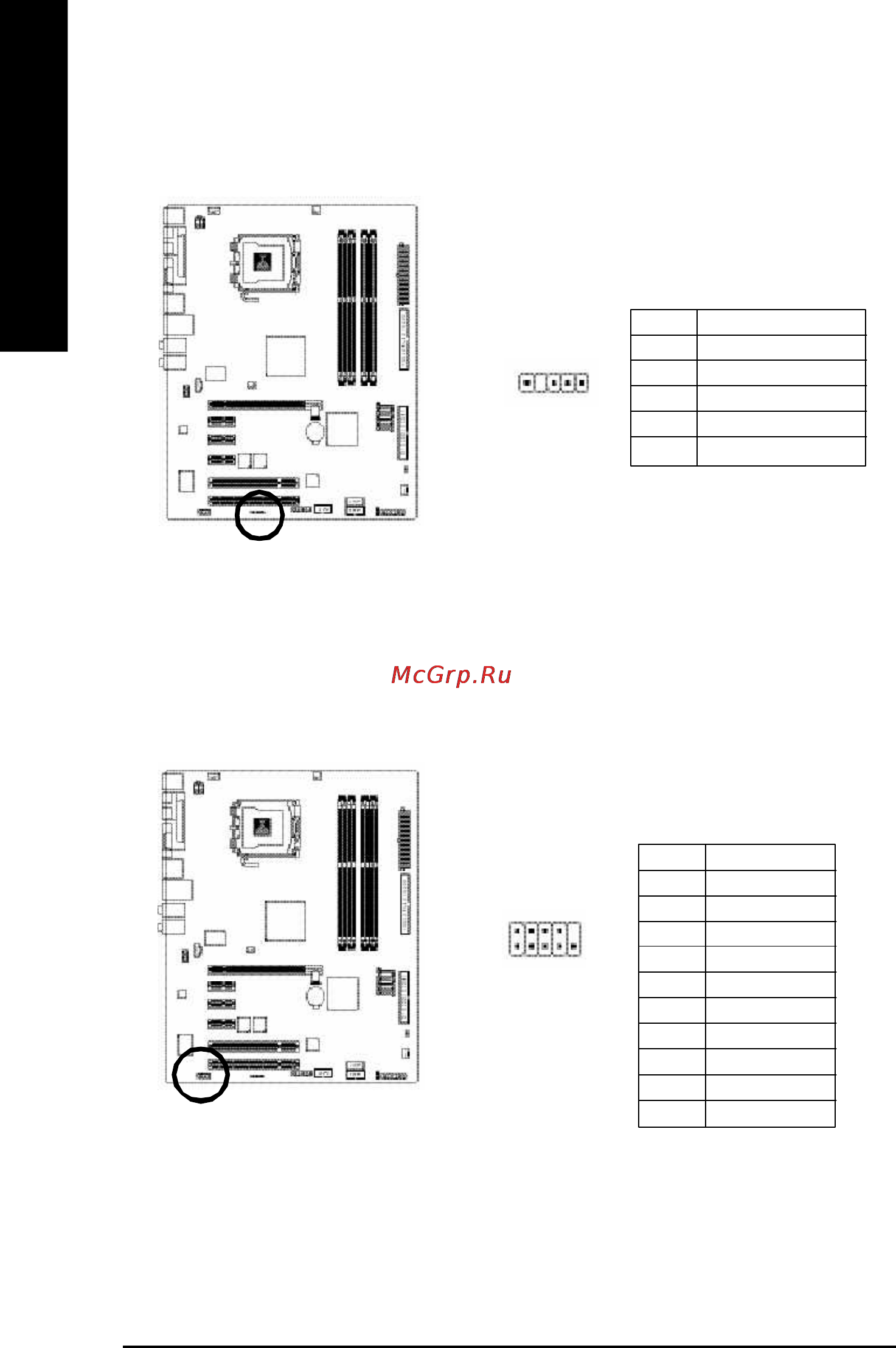

GA-8I915G Pro Motherboard - 26 -
English
17) COMA (COM A Connector)
Be careful with the polarity of the COMA connector. Check the pin assignment while you connect
the COMA cable. Please contact your nearest dealer for optional COMA cable.
Pin No. Definition
1 NDCDA-
2 NSINA
3 NSOUTA
4 NDTRA-
5 GND
6 NDSRA-
7 NRTSA-
8 NCTSA-
9 NRIA-
10 No Pin
2
1 0
1 9
16) IR
Be careful with the polarity of the IR connector while you connect the IR. Please contact you
nearest dealer for optional IR device.
1
Pin No. Definition
1 VCC
2 No Pin
3 IR RX
4 GND
5 IR TX
