Crate VTX212B Инструкция по эксплуатации онлайн
Содержание
- Vtx212 1
- Introduction the top panel 5 the bottom panel the dsp section storing your own presets restoring the factory presets more about the save tap button using the footswitch for more presets dsp factory presets 0 11 suggested settings 2 13 dsp fill in the blanks for user presets 4 system block diagram 5 technical specifications back cover 2
- Table of contents 2

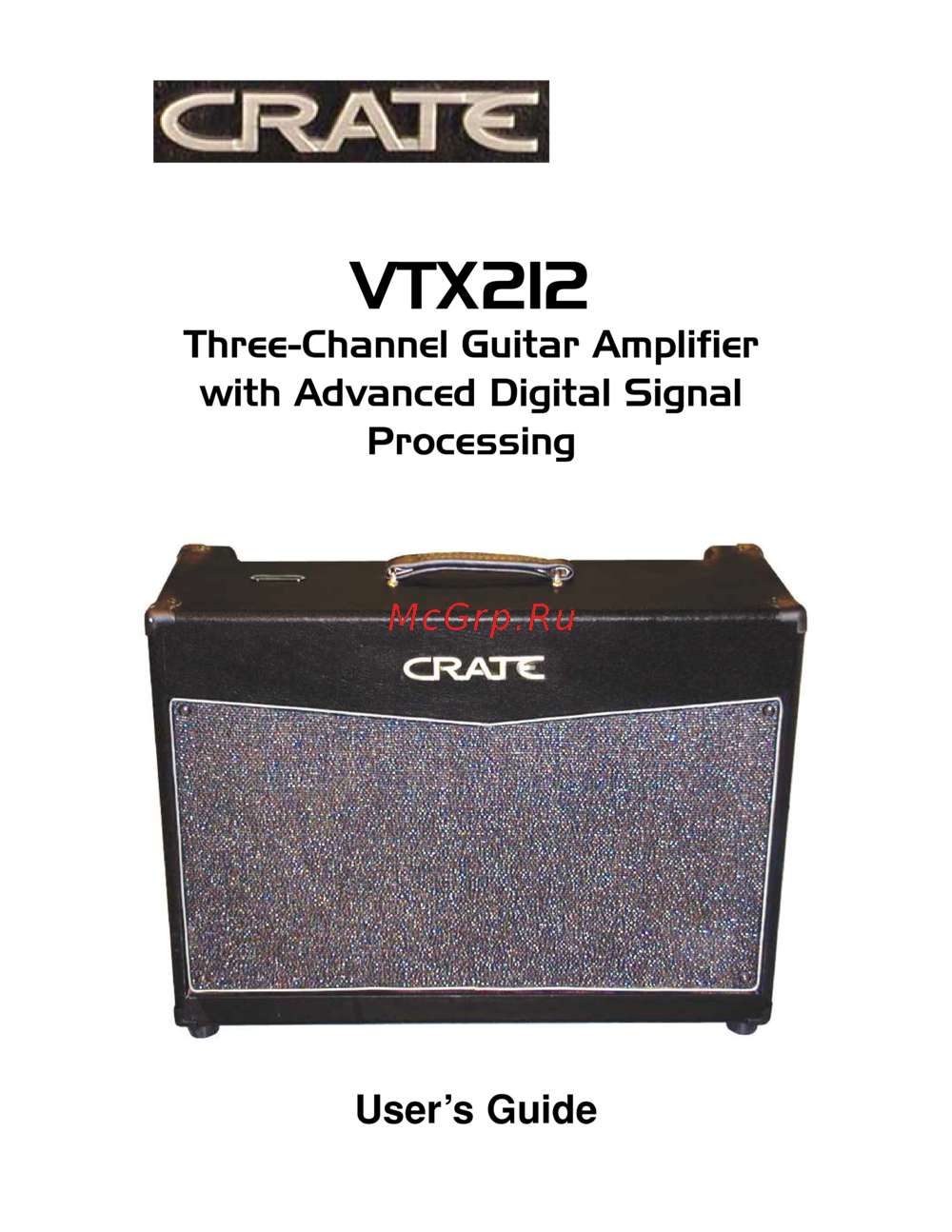

- Three channel guitar amplifier with advanced dsp 2
- Congratulation 3
- The top panel 4
- Three channel guitar amplifier with advanced dsp 4
- Three channel guitar amplifier with advanced dsp 5
- Ac line cord not shown this grounded power cord is to be plugged into a grounded power outlet wired to current electrical codes and compatible with the voltage power and frequency requirements stated on the bot tom panel do not attempt to defeat the safety ground connection 6
- Clean solo rhythm footswitch use this jack to connect one of the footswitch cables to the three button footswitch supplied this allows you to remotely switch between the clean and distortion channels and between the solo and rhythm channels see page 9 6
- Dsp a b footswitch use this jack to connect one of the footswitch cables to the three button footswitch supplied this allows you to select between two presets for each of the three channels additional information about the operation of the footswitch is on page 9 6
- Extension speaker use this jack to connect the amplifier to an external speaker cabinet this jack is wired in series with the internal speaker s which remain active when an extension speaker is connected 6
- Fuse the fuse protects the amplifier from damages caused by a faulty ac power source and or other prob lems if the fuse opens replace it only with the same size and type if fuses continue to fail check the ac source if the source is okay contact your crate dealer for service information 6
- Insert use this jack to connect an external signal processor to the amplifier use crate s stp201 stp202 or stp203 stereo to mono y cord or an adapter such as crate s ypp117 and two 1 4 mono signal cables to con nect to the effect as shown below 6
- The bottom panel 6
- Three channel guitar amplifier with advanced dsp 6
- Dsp dsp 7
- The dsp section 7
- Three channel guitar amplifier with advanced dsp 7
- Each channel of the vtx212 has two factory assigned dsp presets as shown on pages 10 and 11 no matter what the settings of the dsp controls the preset is recalled when a channel is selected you may change the dsp settings by rotating the dsp con trols these changes will remain active until a different channel is selected but will not be there for later use unless they are saved to save a new dsp preset to a channel first make the desired dsp changes then press and hold the save tap button for about three seconds the save tap led will flash through three quick sequences indicating the preset was saved the new preset is stored for that channel and will remain in mem ory until a new preset is stored for that channel or the factory presets are restored 8
- More about the save tap button 8
- Restoring the factory presets 8
- Save tap save tap 8
- Storing your own presets 8
- The factory assigned dsp presets may be restored erasing any changes you have made turn the amplifier off press and hold the save tap button as you turn the amplifi er on the save tap led will flash through two quick sequences indicating the factory presets have been restored 8
- The multi effects and the delay effects may each have a different tap speed the default target for the save tap button is the delay control to select the multi control as the tap button s target rotate the multi control the save tap tempo function will auto matically revert back to the delay control 16 seconds after the multi control is rotated or when the tap speed was last changed for the multi effect 8
- The save tap button is used to set the tempo of an effect by pressing it twice within a one second time frame the time between the two taps sets the timing of the effect if the save tap button is pressed an odd number of times once three times etc the tim ing will default to the maximum one second time period 8
- Three channel guitar amplifier with advanced dsp 8
- The crate three button footswitch supplied with the vtx65 allows access to an addi tional dsp preset for each channel of the amplifier when the footswitch is connected to the amplifier as shown below the original dsp presets are active for each channel when the 3 footswitch led is illuminated these are referred to as dsp bank a when the 3 button is switched and the led is out a second dsp preset may be stored and recalled for each channel dsp bank b 9
- Three channel guitar amplifier with advanced dsp 9
- Using the footswitch for more presets 9
- Dsp dsp 10
- Dsp factory presets 10
- Save tap save tap 10
- Three channel guitar amplifier with advanced dsp 10
- Dsp dsp 11
- Dsp factory presets 11
- Save tap save tap 11
- Three channel guitar amplifier with advanced dsp 11
- Delay delay 12
- Multi multi 12
- Oceanic 12
- Reverb reverb 12
- Rhythm clean 12
- Rhythm solo 12
- Save tap save tap 12
- Suggested settings 12
- Super funk 12
- Three channel guitar amplifier with advanced dsp 12
- Volume shape gain low mid high level low mid high level gain 12
- Delay delay 13
- Haze faze 13
- Multi multi 13
- Octanator 13
- Reverb reverb 13
- Rhythm clean 13
- Rhythm solo 13
- Save tap save tap 13
- Solo wah 13
- Suggested settings 13
- Three channel guitar amplifier with advanced dsp 13
- Volume shape gain low mid high level low mid high level gain 13
- Dsp dsp 14
- Dsp fill in the blanks user settings 14
- Save tap save tap 14
- Three channel guitar amplifier with advanced dsp 14
- System block diagram 15
- Three channel guitar amplifier with advanced dsp 15
- Three channel guitar amplifier with advanced dsp 16
- Vtx212 technical specifications 16
