Connection

Precaution: Do not turn on the power of the player before all connections are

done correctly.

Note: The diagram may be different from your DVD player; the connections are

only for your reference.

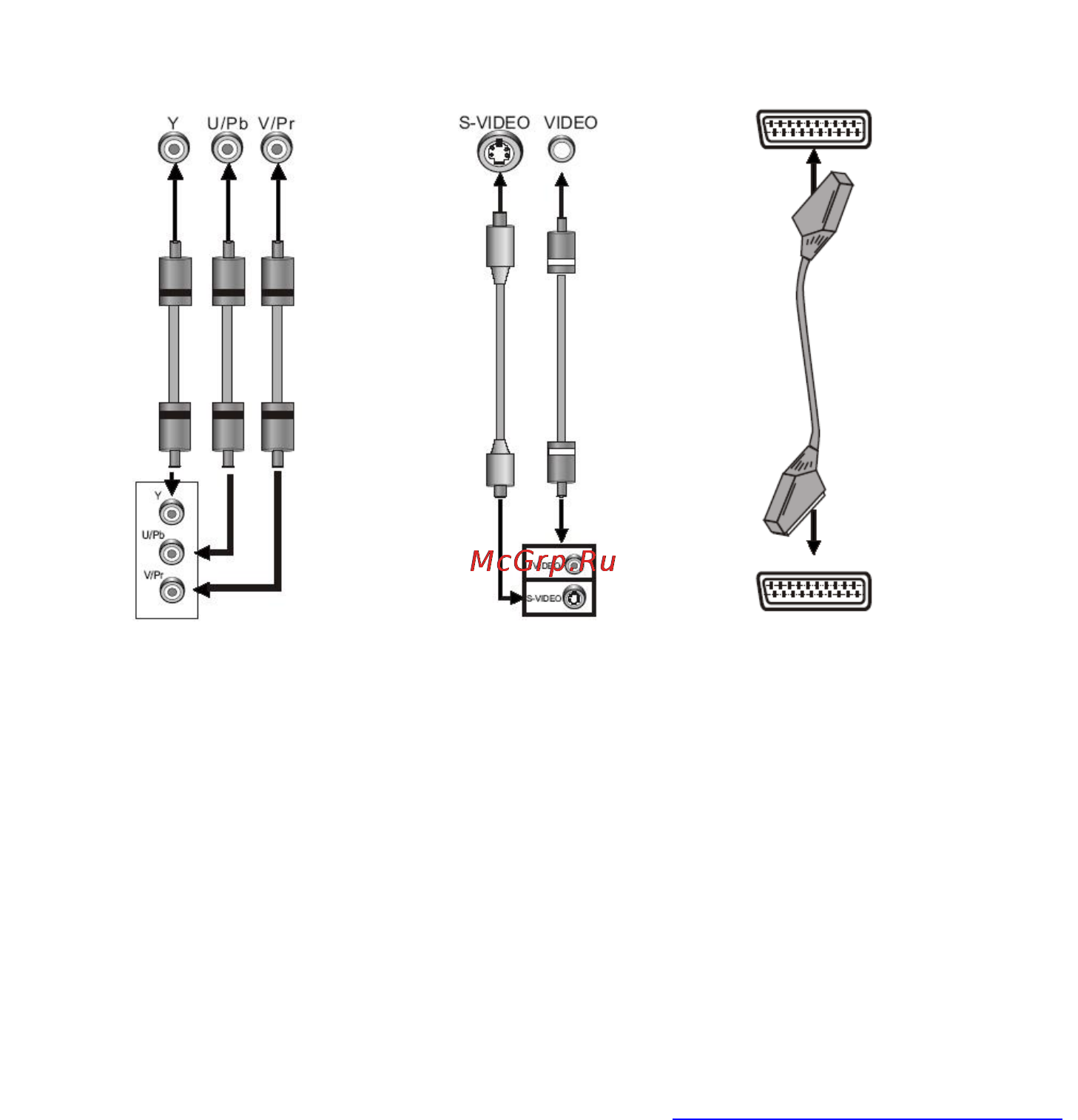

Video system connection

TV/Monitor video input

Component video Composite video and SCART input

input S-video input

Component video Composite video and SCART output

output S-video output

DVD player video output

Following video outputs are available in this unit.

Composite video

Use the cable with yellow plug of an AV cable to connect the composite video

output of this unit to the video input of a TV/monitor.

Component video
