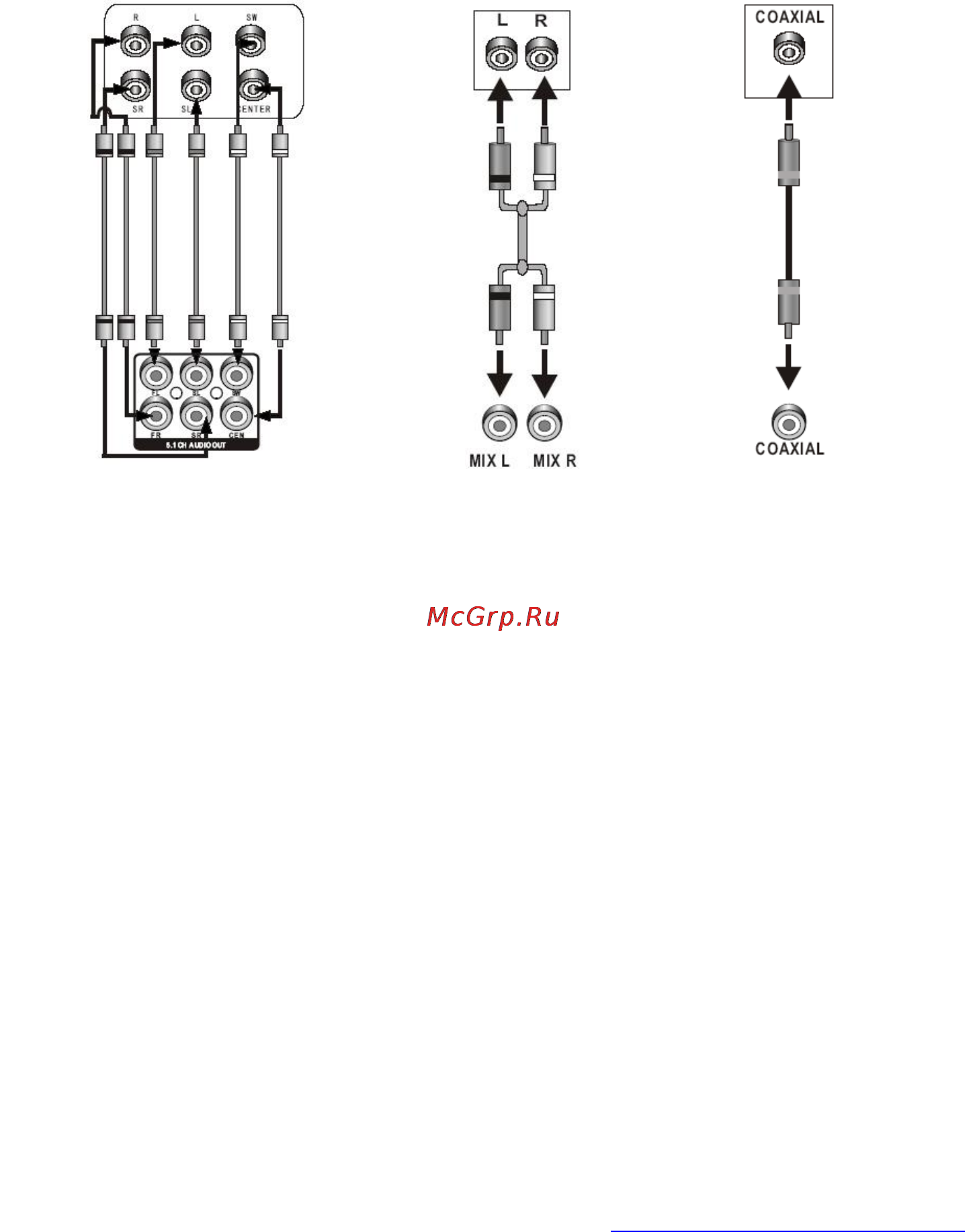

Audio system connection

TV/monitor/amplifier audio input

5.1CH audio input 2CH audio input Digital audio input

5.1CH audio output 2CH audio output Digital audio output

DVD player audio output

There are two types of audio output systems. They are analog audio output

system and digital audio output system.

Analog audio output system includes 2-channel stereo output and Dolby AC-3

5.1 channel output. Digital audio output system includes coaxial output.

Stereo audio

Use a pair of audio cable (white for left, red for right) to connect the stereo audio

outputs of this unit to the stereo inputs of a TV or a power amplifier.

5.1 CH audio

Use 3 pairs of audio cables to connect the 5.1 CH audio outputs of this unit to the

5.1 channel inputs of external audio amplifiers or other players.

Coaxial audio

Use a coaxial cable to connect the coaxial output of this unit to the coaxial input

of a power amplifier.
