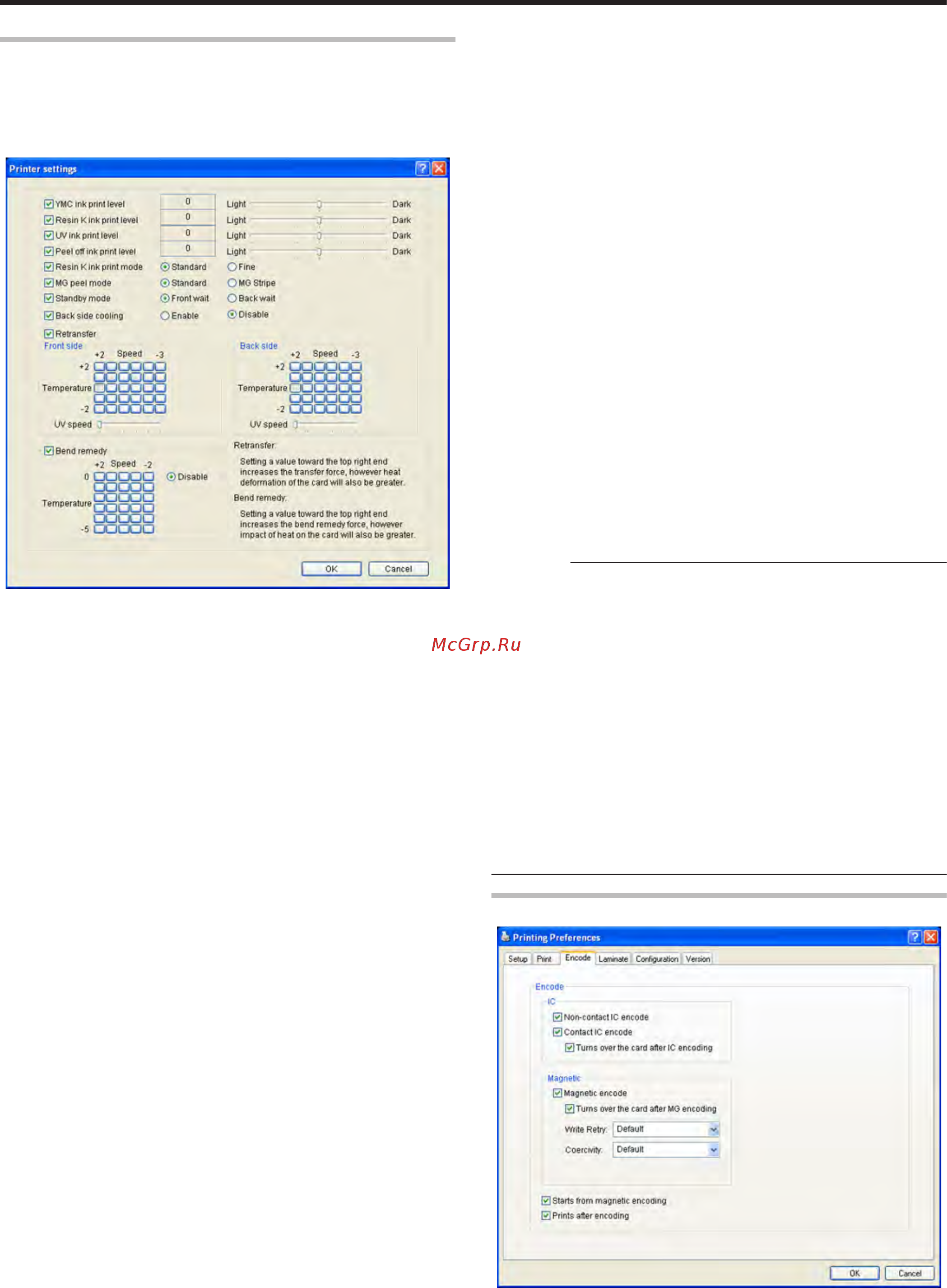

[Printer settings] Dialog Box
Settings related to the printer.
Select the checkbox for the setting item to enable, followed by
specifying a value. Doing so prints the data using the set values.
When the setting is not enabled, data is printed using the preset values
of the printer unit.
.
m
YMC ink print level
Print density of the YMC ink.
Use the [+] values to increase, and [-] values to decrease the density.
m
Resin K ink print level
Print density of the Resin K ink.
Use the [+] values to increase, and [-] values to decrease the density.
m
UV ink print level
Print density of the UV ink.
Use the [+] values to increase, and [-] values to decrease the density.
m
Peel off ink print level
Print density of the peel-off ink.
Use the [+] values to increase, and [-] values to decrease the density.
m
Resin K ink print mode
Print quality of the Resin K ink.
Selecting [Fine] enhances the printing quality, but slows down the
printing speed.
m
MG peel mode
When a magnetic encoder unit is installed, selecting [MG Stripe]
optimizes the peeling operation of retransfer films for magnetic stripe
cards.
m
Standby mode
Specify a position when a laminator is connected.
This is used for setting the standby position of the card during double-
sided printing until the laminator is ready. [Front wait] is selected by
default.
m
Back side cooling
This setting is only valid during double-sided printing.
Setting this item may help to reduce card bend during double-sided
printing. However, the printing time may also be affected.
m
Retransfer
Settings related to retransfer. Click on the corresponding square to
change the value.
Setting a value toward the top right end increases the transfer force.
However, the stronger heat also increases the deformation of the card.
v
Temperature
Temperature of the retransfer heating roller.
v
Speed
Retransfer speed.
v
UV speed
Setting for printing the retransfer film in two panels when UV ink is
used.
It is used to set the speed of the retransfer heating roller during
retransfer of the UV ink.
This setting helps to increase the retransfer speed without affecting
the quality of the UV print.
m
Bend remedy
Settings related to bend remedy.
Click on the corresponding square to change the value.
Setting a value toward the top right end increases the bend remedy
force. However, the stronger heat may have a greater impact on the
card.
To disable bend remedy, select the [Disable] button.
v
Temperature
Temperature of the bend remedy heating roller.
v
Speed
Bend remedy speed.
Cautions:
v
The optimal retransfer and bend remedy settings vary according to
the card type as well as environment in which the printer is used.
Adjust the setting according to the actual environment.
v
If the retransfer or bend remedy settings are different from the preset
temperature of the printer, it may take a while before printing starts.
v
There is only one standard retransfer temperature. Altering the
retransfer temperature on one side changes the temperature on the
other side.
v
Bend remedy is effective when printing on only one side. Setting
bend remedy to a high temperature during double-sided printing may
cause the card to deform significantly.
As such, select the [Disable] button during double-sided printing.
v
When bend remedy is disabled using the [Disable] button, the speed
is automatically set to the maximum value of [+2].
v
The stronger the bend remedy force, the less glossy the surface of
the remedy side will be.
[Encode] Tab
.
Setup
94
