Fluke 115С [19/26] True rms multimeters maintenance

True-rms Multimeters

Maintenance

Maintenance of the Meter consists of battery and fuse

replacement, as well as case cleaning.

Replacing the Battery and Fuse

XWWarning

To avoid shock, injury, or damage to

the Meter:

• Remove test leads from the Meter

before opening the case or battery door.

• Use ONLY a fuse with the amperage,

interrupt voltage, and speed ratings

specified.

To remove the battery door for battery replacement:

1. Remove the test leads from the Meter.

2. Remove the battery door screw.

3. Use the finger recess to lift the door slightly.

4. Lift the door straight up to separate it from the case.

The battery fits inside the battery door, which is then

inserted into the case, bottom edge first, until it is fully

seated. Do not attempt to install the battery directly into the

case.

5. Install and tighten battery door screw.

Fuse

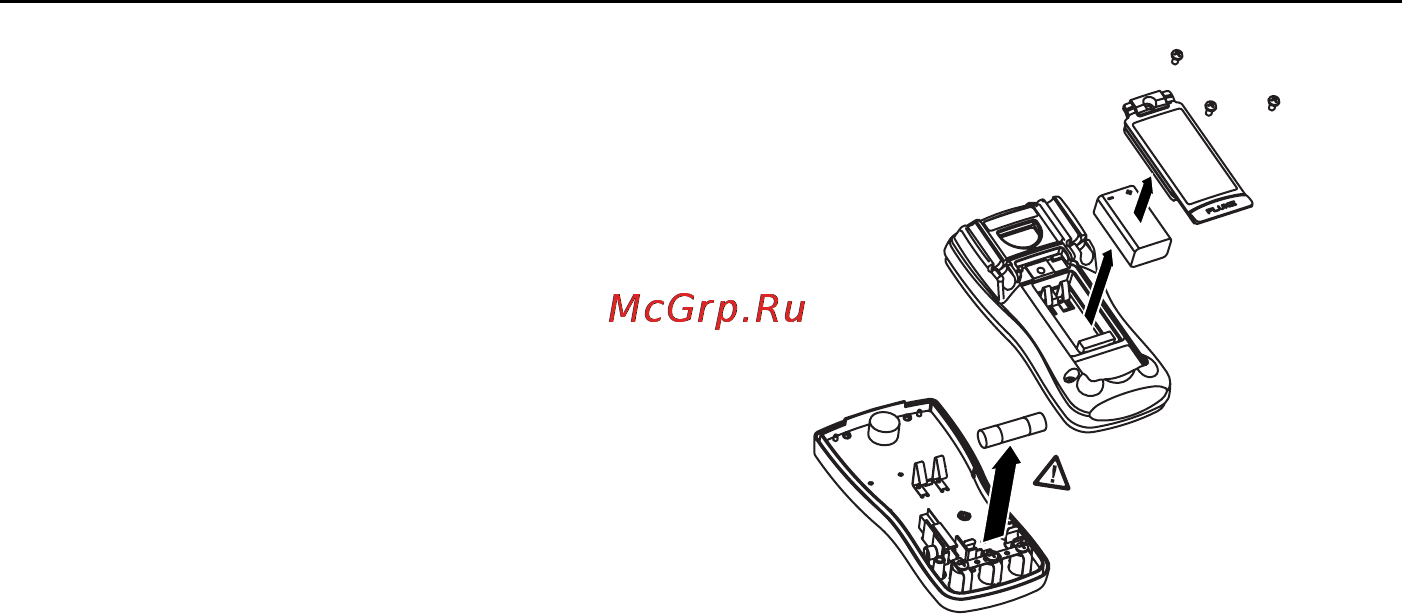

edy11f.eps
