Hyundai H-DVD5061 [13/48] Connection

H-DVD5061 (www.hyundai-electronics.ru) 13

Connection

Attention: Before connection disconnect the AC power supply cord.

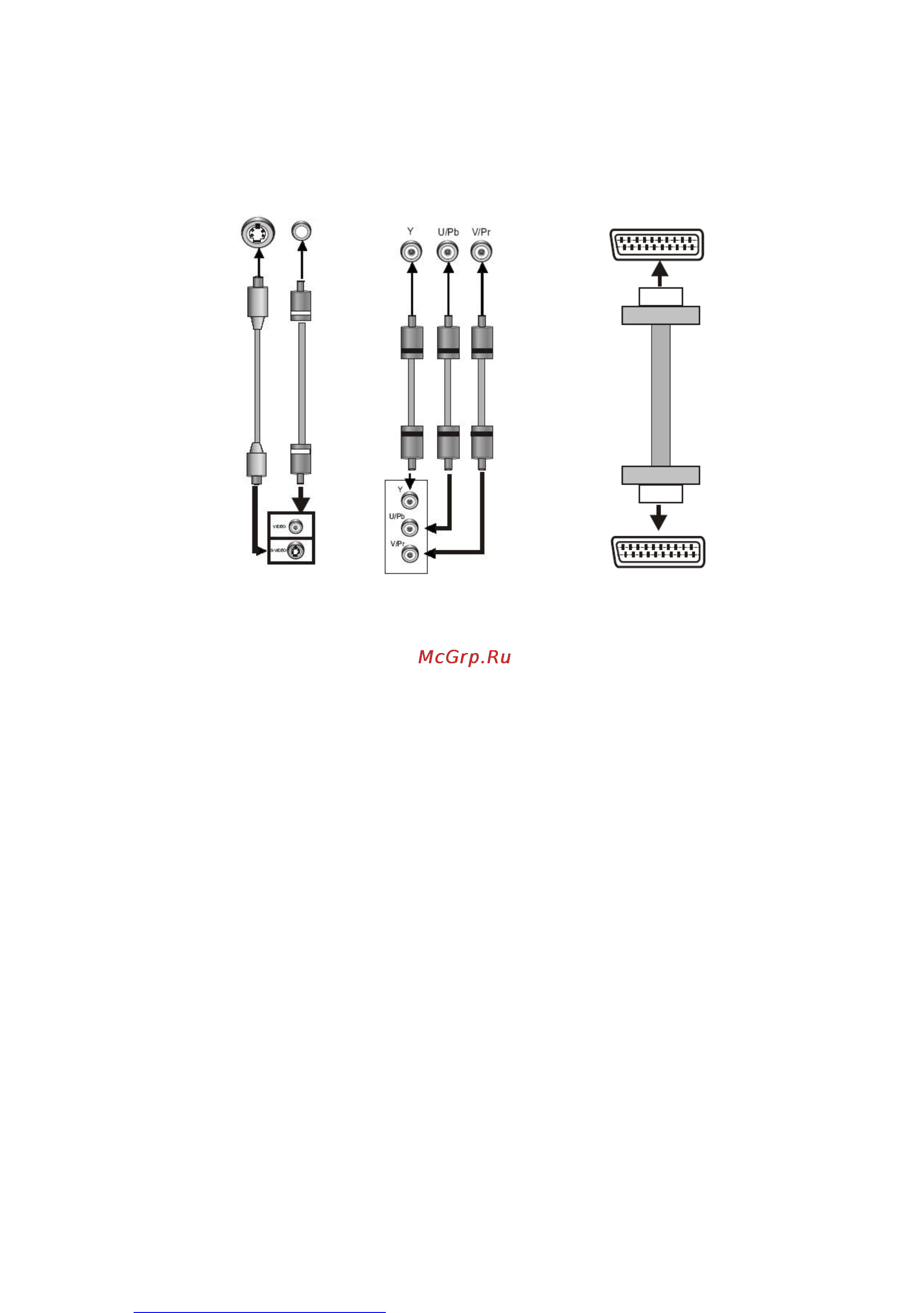

Video system connection

The following video outputs are available for this unit.

Composite video

Use the AV cable (yellow terminal) to connect composite VIDEO output of this unit to the

TV/monitor video input.

S-Video

Use the S-video cable to connect the S-VIDEO output of this unit to the TV/monitor S-video

input.

Component video (YUV)

Use 3-core AV cable to connect the component output terminals of this unit to the corresponding

TV/monitor input.

SCART

Use a 21-pin SCART cable to connect the SCART output to the TV/monitor SCART input

terminal.

Notes:

Which connection depends on the TV/monitor input terminal.

Don't use all connections at one time; otherwise the picture will be affected.

Only the physical connection conforms to the video setting can produce the normal picture

(reference to the Video setup in System setup).

S-Video Video

Component

video input

Component

video output

Video and S-

Video

outputs

SCART

output

SCART

input
