Audio connection system

Two types of audio output systems: analog audio and digital audio. Analog audio includes 2-channel

stereo. Digital audio includes optical and coaxial output.

Stereo audio

Use a pair of AV cables (red for right/white for left) to connect the stereo audio outputs of this unit to

the TV or a stereo input of power amplifier.

Coaxial digital audio

Use the special coaxial cable to connect the coaxial output of this unit to the coaxial input of power

amplifier.

Optical digital audio

Use the special optical cable to connect the optical audio output of this unit to the optical input of

power amplifier.

Note: The physical connection should accord to the audio output setup of this unit. Please refer to

Audio setup in System setup.

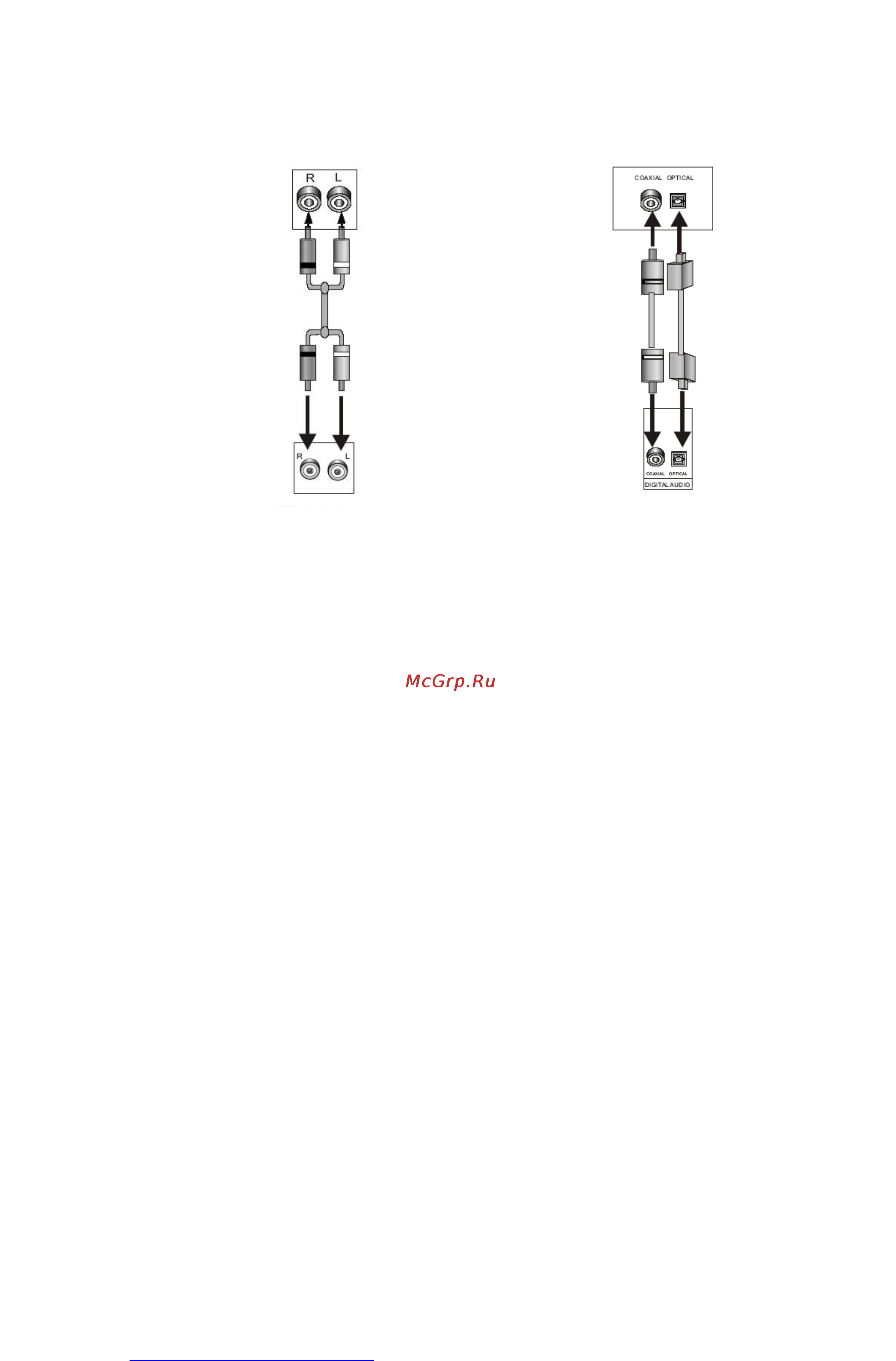

2 CH audio outputs

Digital audio inputs

2 CH audio inputs

Optical and coaxial

outputs
