VTX30
Two-Channel Guitar Amplifier with DSP
5
14: POWER: Use this switch to turn the amplifier on (top of the switch depressed) and off
(bottom of the switch depressed). The switch illuminates when the amplifier is turned on.

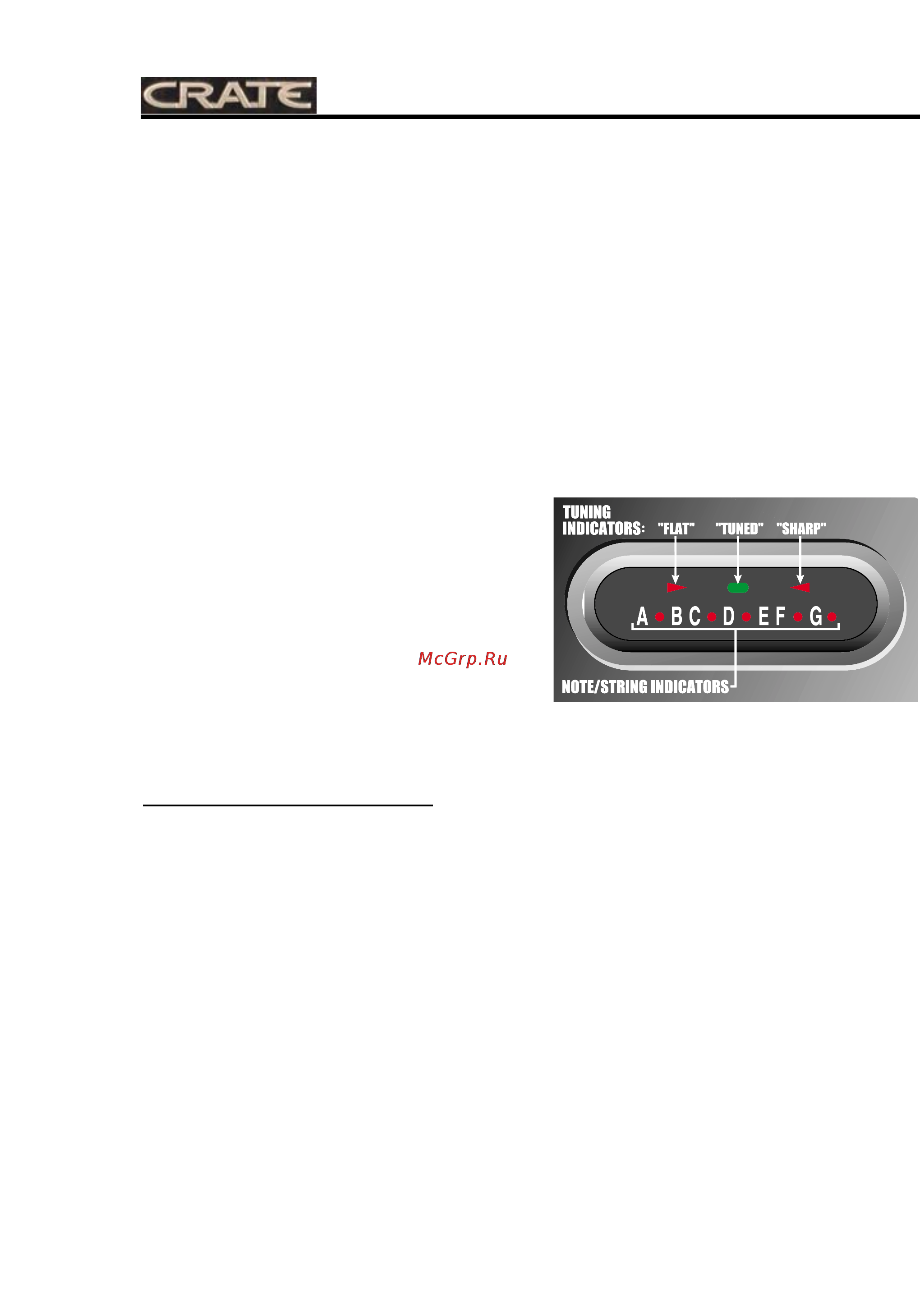

15: TUNER: The electronic tuner is active
whenever the amplifier is turned on, providing
constant, “real-time” tuning. The bottom row
of LEDs indicate which note (string) is being
tuned. The top row of LEDs provides direc-
tional queues to facilitate quick and precise
tuning of your instrument. The indicated note
(string) is properly tuned when only the center
LED is illuminated.
The Bottom Panel (not shown):
16: EXTENSION SPEAKER: Use this jack to connect the amplifier to an external speak-
er. The internal speaker is disconnected when this jack is used. The impedance of the
external speaker must be 4 ohms or greater.
WARNING: Do not attempt to use headphones in the Speaker jack! Permanent
hearing damage could result!
17: FOOTSWITCH: Use this jack to connect the 1/4” stereo plug on the cable of a two-but-
ton footswitch (such as the Crate CFP2). This allows you to remotely switch between the
Clean and Solo channels and turn the DSP function on and off.
18: POWER CORD: The grounded power cord should only be plugged into a grounded
power outlet that meets all applicable electrical codes and is compatible with the voltage,
power, and frequency requirements stated on the bottom panel. Do not attempt to defeat
the safety ground connection.
