INSTALLATION OF BATTERIES
Slide and open the battery cover (12).
Insert batteries (or rechargeable batteries) into the battery container observing polarity on the battery
cover.
Slide back the battery cover to its original position.
Attention! Do not use batteries of different types or batteries with various charge level because
this may significantly decrease operating time.
EXTERNAL POWER SUPPLY
The unit can operate on an external battery such as Power Bank (5V) or a computer (laptop).
3
Connect the plug of the USB cable to the unit’s USB port (9).
Connect the other plug of the USB cable to a Power bank or a computer.
Upon connection of an external power supply the unit stops operating on batteries.
Operation on external power supply is shown with an icon
More about powering from Power Bank and computer in section 13.

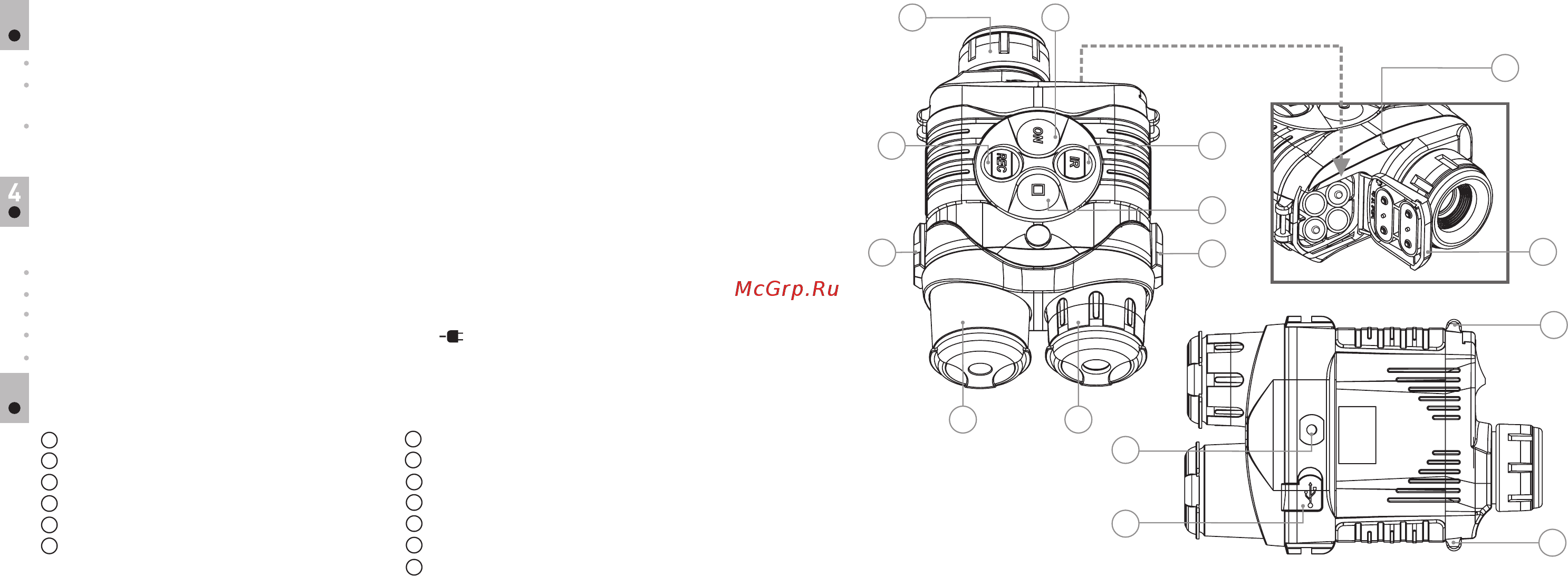

EXTERNAL VIEW AND CONTROLS
5
5
6
7
8
1
2
3
4
Objective lens
Button ON
Button IR
Button ZOOM
Button REC
IR Illuminator
9
10
11
12
13
Eyepiece diopter adjustment ring
Weaver rail
Micro USB port
Tripod mount
Neck strap lugs
Battery container cover
Microphone
4
3
7
2
5 3
4
8
8
6 1
13
12
9
10
11
11
