10 2.4 Inch TFT POE Terminal User Manual
2.2.4 Ceiling Mounted
Installation conditions:
Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should
be enough to install expansion bolt in indoor and outdoor environment. The ceiling can bear at least 4
times the weight of the dome. Install the base of ceiling and boom:
a. As shown in fig 2.10, with the installation holes in the base of ceiling as pattern, draw punched
locations in the ceiling and punch to install M6 expansion bolt.
Fig 2.10

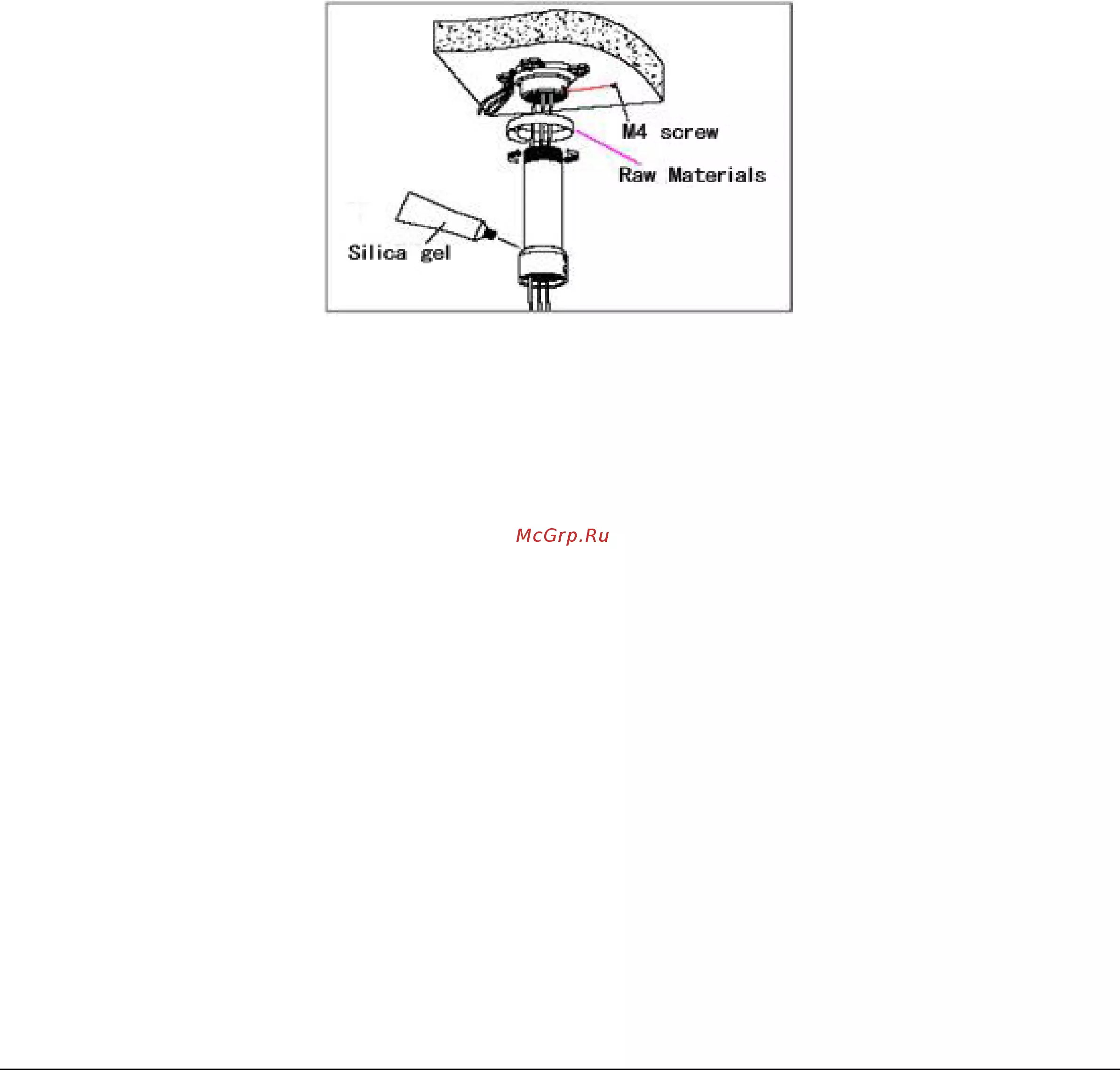

b. As shown in fig 2.11, at first unscrew the M4 screw at the side of the base of ceiling and split the base
of ceiling and boom. Then make the three groups of cables of power, video/control and alarming into
the side recessing seal groove of the ceiling connector bottom and through the core hole of the base of
ceiling mounted. Fix the base of hang ceiling on the ceiling board.
Fig 2.11
