40 2.4 Inch TFT POE Terminal User Manual

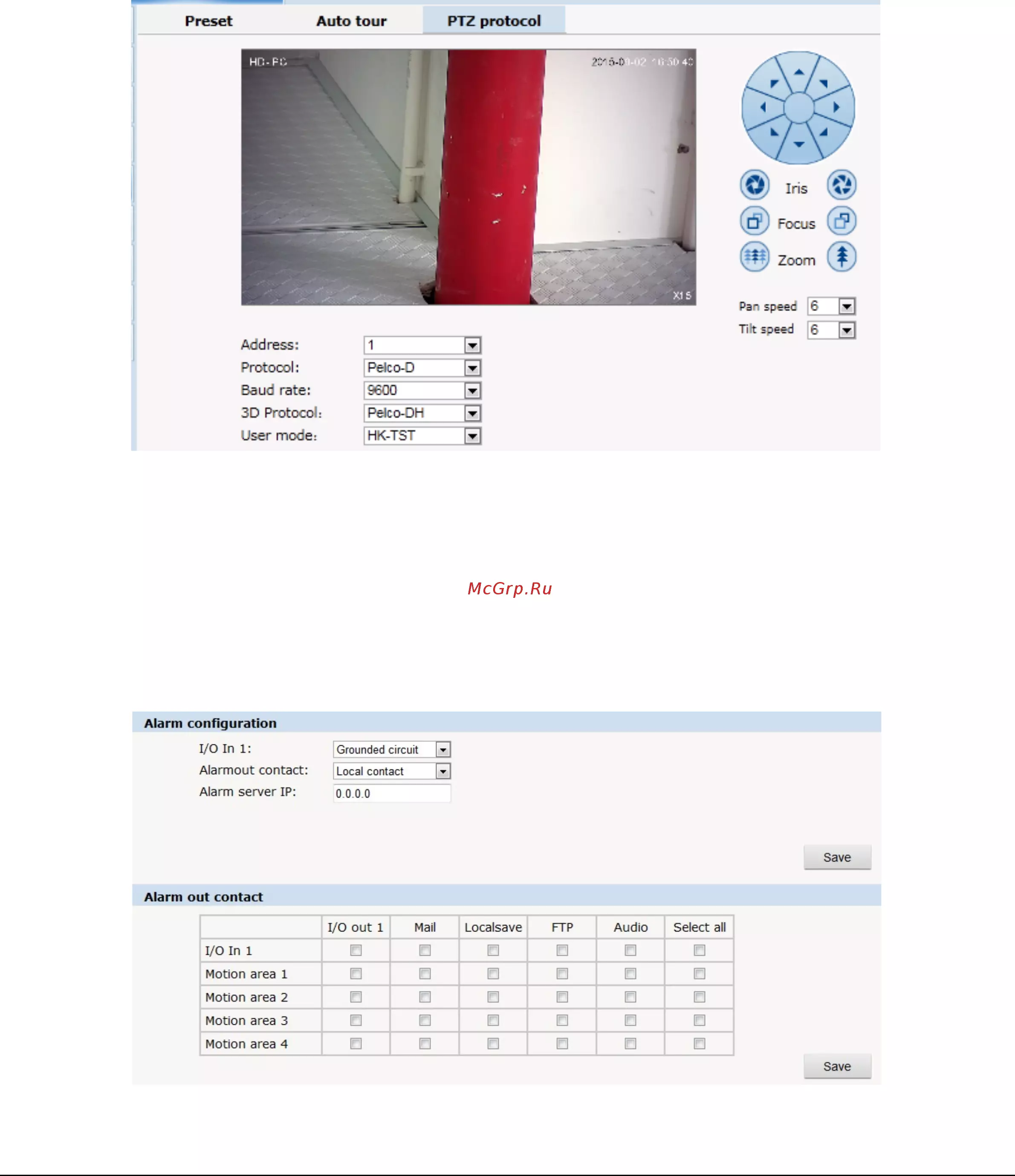

Fig 2.51
The IP camera supports 2 channel alarm in. User can set grounded or open circuit for each I/O.
Alarm out contact: transmission method of alarm signal.
Local contact: local alarm out. Default local contact.
Net contact: internet transmission.
Note: The function requires the synchronous use of digital video management software, e.g. HVMS.
Choosing net contact, user is supposed to set the alarm IP as HVMS-CMS IP.Finishing data set of HVMS,
the relay switch can be remotely controlled. For more details, please refer to HVMS manual.
Alarm IP: set the IP address of the alarm.
User can set each channel signal alarm in or alarm method of each motion detection: Alarm in 1 (for net
contact, the alarm in 1 is ineffective.), sending emails, FTP uploading, audio and others. The setting takes
into effect after clicking setting button.
Alarm Schedule: user can set alarm schedule by day and exactly time.
2.6.8 User
User: Administrator’s authority to operate the camera.
Fig 2.52
