Zkteco TS5000A [2/4] Preparing

- 1 -

1 Preparing

Tools: Measuring tape, adjustable wrench, impact drill and small screwdriver (Included).

Material: PVC anti fire and insulation tube (diameter≥25mm), Standard three-core power

extension wire, M12 expansion screw (included).

Put the connection wire of devices into tube before burying them underground.

Power wire and signal wire should be set separately for distinguishing strong and weak power. It

is recommended to be wired by a professional, and the device must be connected to the ground.

2 Fixing and testing

Drill holes based on the locations of the holes. Then set the expansion screw into holes.

Pre-fixed the device by these expansion screws

Test with temporary cable, ensure that ground wire of AC power was connected to cabinet.

Turn on air switch and waiting for 10s for device self-testing. At the same time check all lights to

ensure that they operate properly. Fasten screws and fixed device if everything works fine.

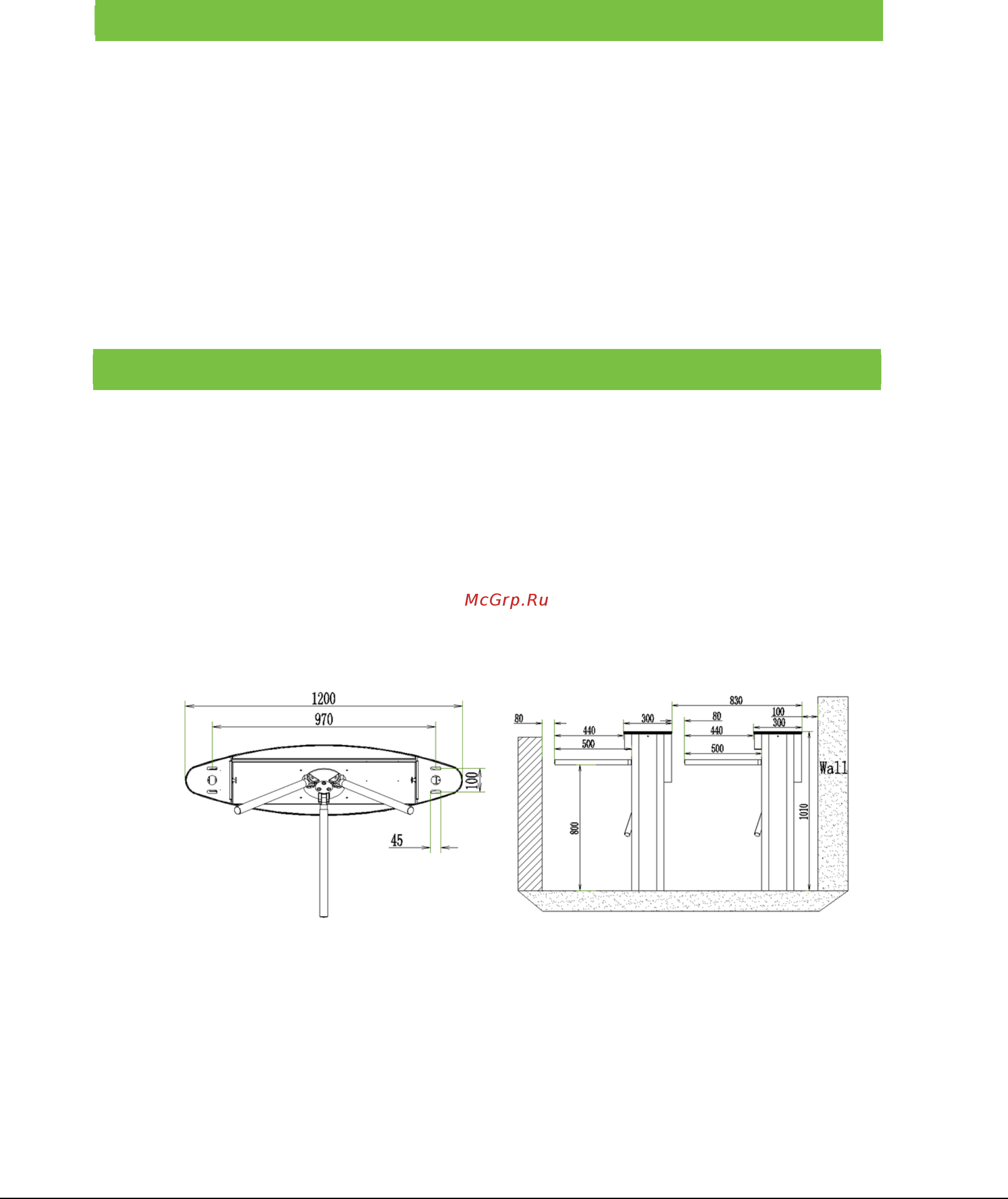

Installation site of device reference the figure of below:

Figure2-1 Figure2-2
