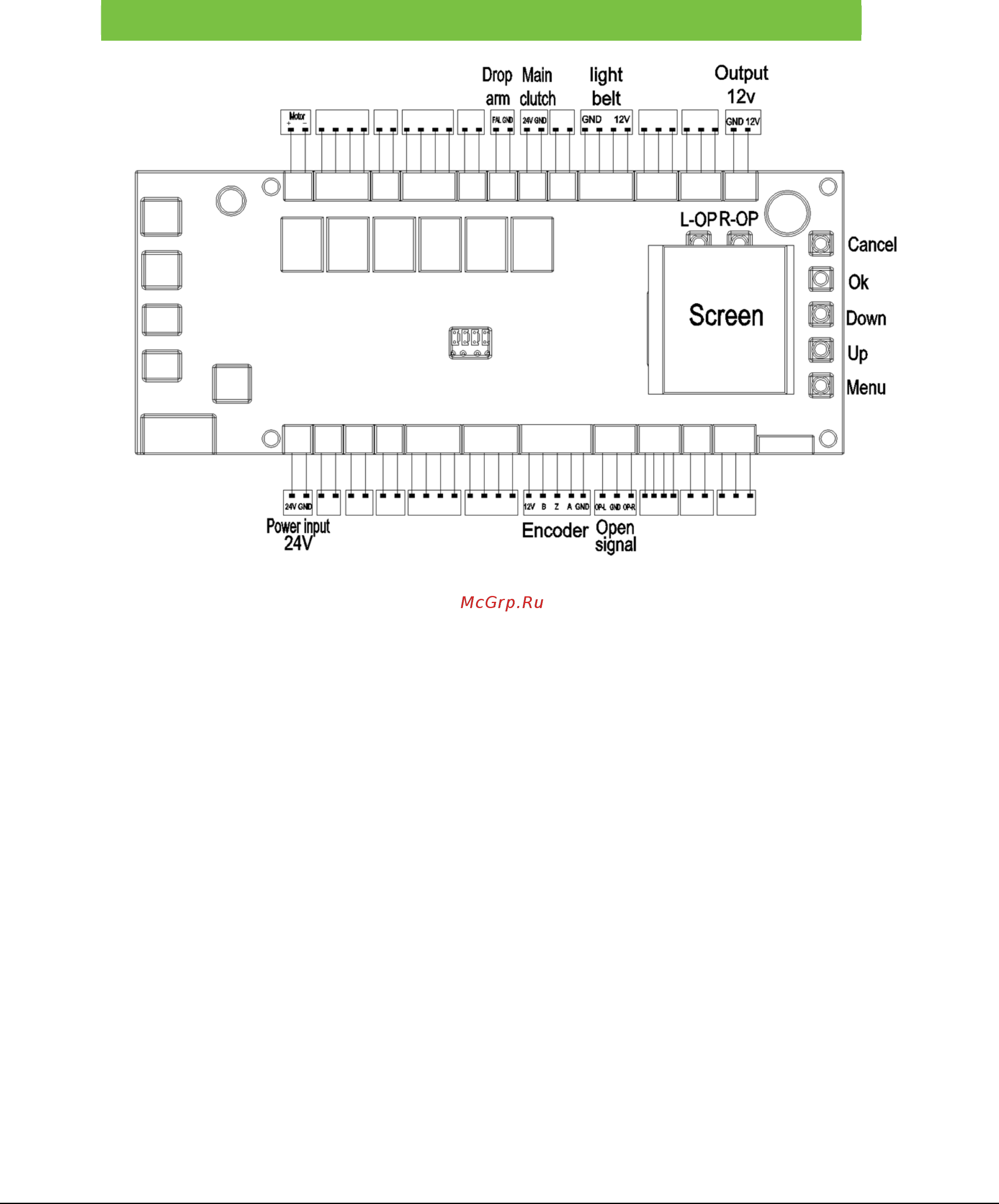

3 Terminal of control board

Figure 3-1

3.1 Functions Introduce

After connecting to power, the LCD screen on control board will displays default state, which display

currently Work Model, count of In and Out.

There are 5 buttons ‘‘MENU, UP, DOWN, OK, ESC’’ below LCD screen, and another 2 buttons are ‘‘Right open,

Left open’’ located on bottom right corner.

3.2 Button Introduce

Menu: to enter menu setting item.

Up: to move up menu item or increase value

Down: to move down menu item or decrease value

OK: to enter menu setting item or defined the currently modified value

ESC: to return to the previous menu or cancel the current operation.

3.3 Menu Operation

Press the MENU button, enter the password input interface, the default password is: ‘UP, UP, DOWN, DOWN,

DOWN, DOWN’. If any step fails please press the ESC button to get back. After entering the menu press UP or

DOWN to choose a menu item and then press OK to enter the interface and adjust function or value.
