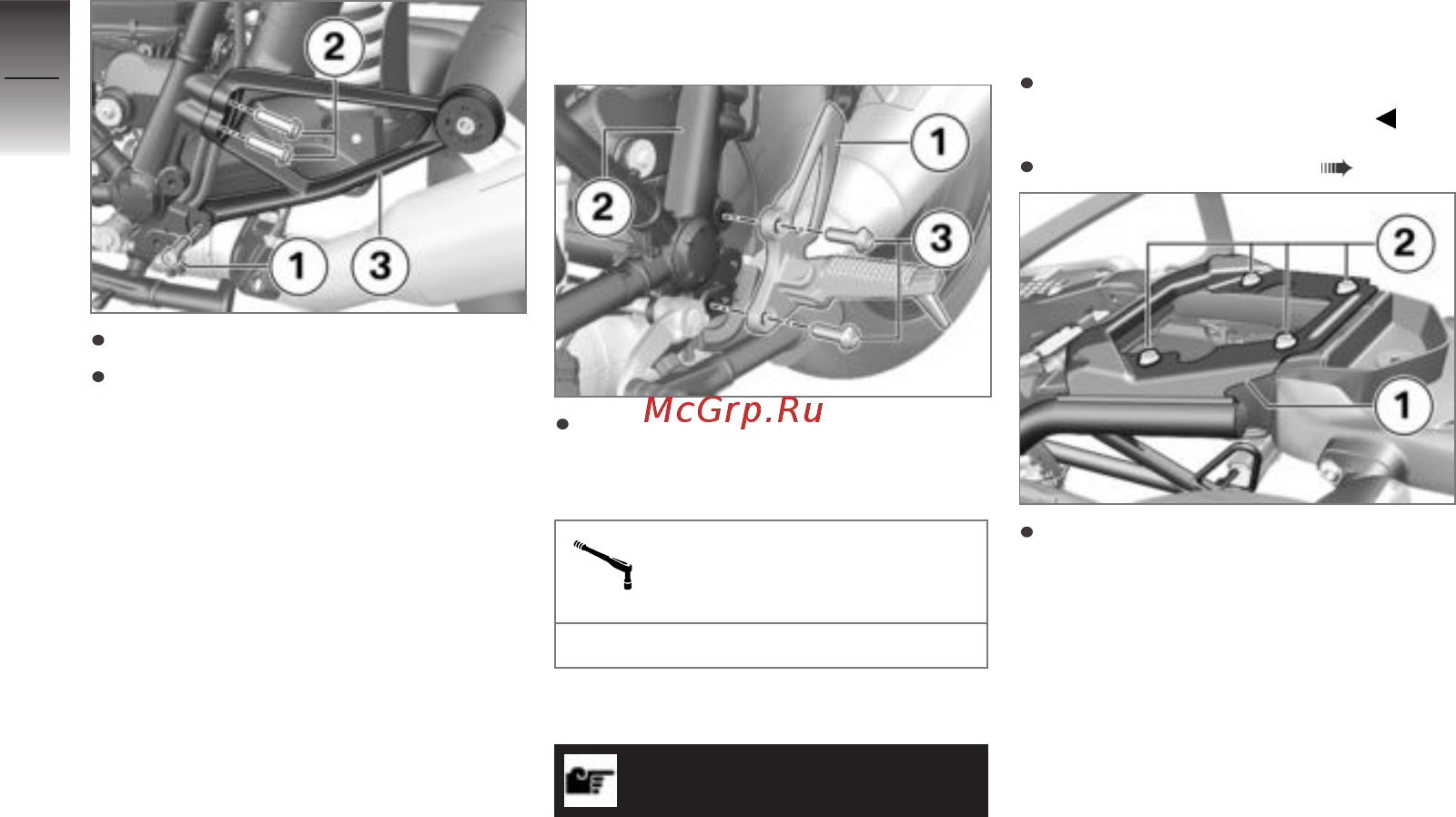

BMW R Nine T [114/169] Accessories
![BMW R Nine T [114/169] Accessories](/views2/1498021/page114/bg72.png)
Remove screws 1 and 2.
Remove the bracket 3 for the
silencer.
Installing left footrest
system
Position the footrest system 1
on the left of the rear frame 2
and install the screws 3.
Footrest system to rear
frame
19 Nm
Installing the pillion frame
ATTENTION
Hard or sharp-edged com-
ponents
Scratches and damage to paint-
work
Use a suitable soft cover or
mask off the areas at risk.
Removing front seat ( 49).
Insert the pillion frame 1 from
the rear and loosely install the
screws 2.
9
112
z
Accessories
