BMW R Nine T [51/169] Front and rear seats
![BMW R Nine T [51/169] Front and rear seats](/views2/1498021/page51/bg33.png)
length of time to pass without
making further changes.
To switch off the heated grips,
repeatedly press button 1 until
the heated grip symbol 2 is no
longer shown on the display.

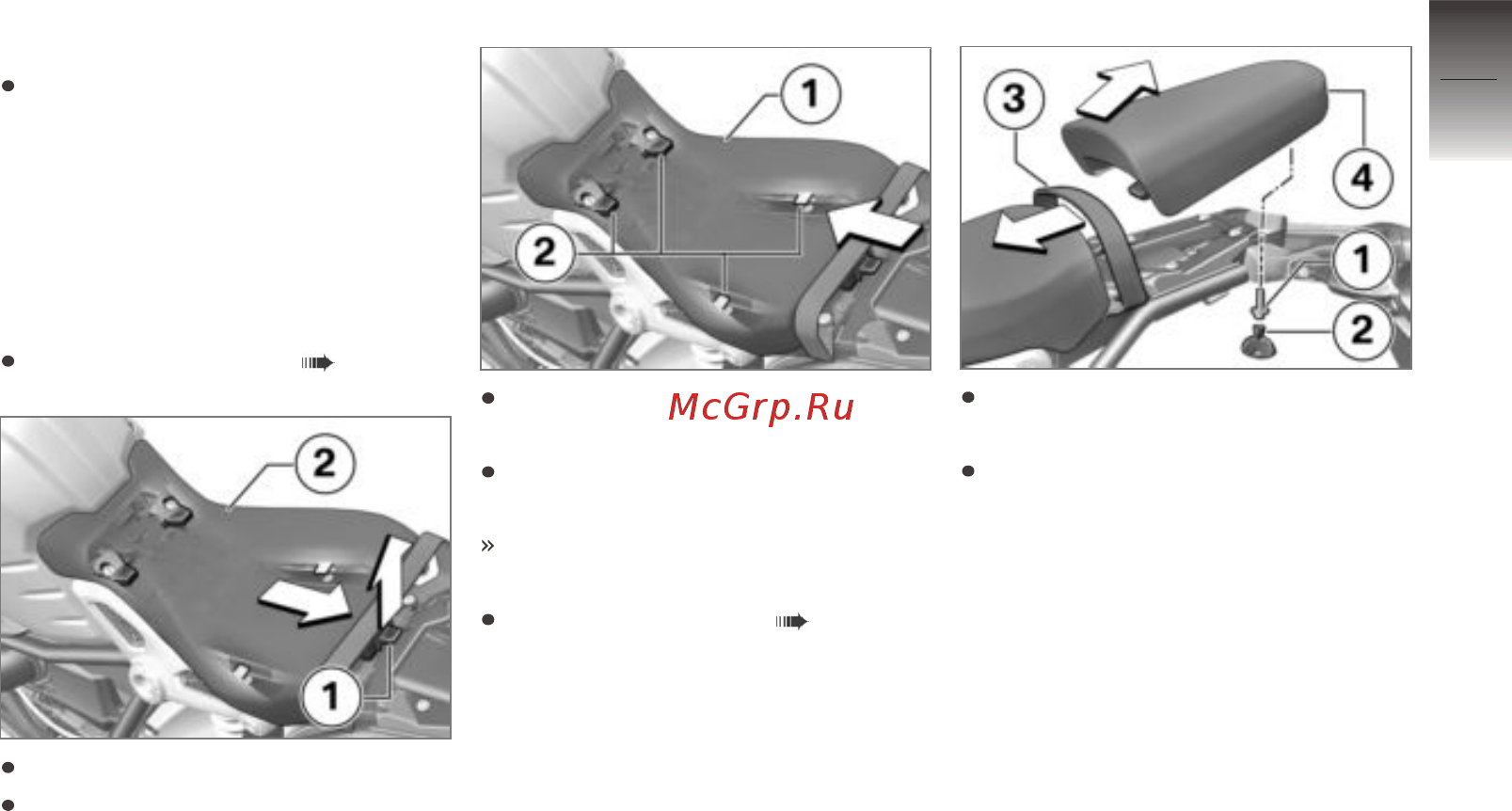

Front and rear seats
Removing front seat
Removing rear seat ( 49).
Pull the lock 1 upwards.
Pull the rider's seat 2 towards
the rear and remove it.
Installing front seat
Insert the rider's seat 1 into the
tabs (arrows).
Press the rider's seat 1 down-
wards at the rear.
The rider’s seat engages with
an audible click.
Install the rear seat ( 50).
Removing rear seat
Remove the screw 1 using the
motorcycle seat key 2.
Pull the retaining belt 3 to-
wards the rider's seat and re-
move the passenger seat 4
towards the rear.
4
49
z
Operation
