C. POWER SUPPLY
AC Household Current:
The optional AC adaptor allows the TV to be powered by standard household cur
rent (please look over the symbol of the AC adaptor.)
Car Battery (DC 12V):
The optional car adaptor (apply to the car with "" polarity connected to the
ground) allows the TV to be powered by a car battery through the vehicale's ciga
rette lighter.
Batteries Pack (DC 12V): (battery not included)
The optional batteries pack allows the TV to be powered (When powered, please
aim at the batteries polarity location, at first press the batteries pack on the TV
back cover closely, then play it from top to bottom).
D. BASIC OPERA
TION
1. Turning ON/OFF TV
1) Connecting the power sources, and press the [POWER ON/OFF] button.
Press the [POWER ON/OFF button each time, then you can change from ON to
OFF or from OFF to ON.
2) Under the condition of being OFF, you could select [CH+] or [CH] to turn on
the unit except to turn on the [POWER ON/OFF] button.
3) After disconnecting the power socket, you could cancel the set up of the
sleeping time and off time.
4
E. УСТРАНЕНИЕ НЕИСПРАВНОСТЕЙ
Наличие следующих неисправностей не обязательно является следствием
неисправности телевизора. Перед обращением в сервисную службу проверьте
состояние телевизора в соответствии с таблицей.
F
. ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Тип: Цветной телевизор с жидкокристаллическим TFT
экраном
Диапазон приема 45,25 863,25 МГц
Система: Система указана на ярлычке
Элемент изображения: TFT элементы
Размер экрана: 5,6 дюйма (14,2 см)
Число пикселей: 960 x 234
Рабочая область экрана 114 мм x 86 мм
Звуковой выход: не более 500 мВт
Динамик: 1 прямоугольный динамик 16 мм x 35 мм
Задняя подсветка: флуоресцентный световод с высокой яркостью
РУССКИЙ
21

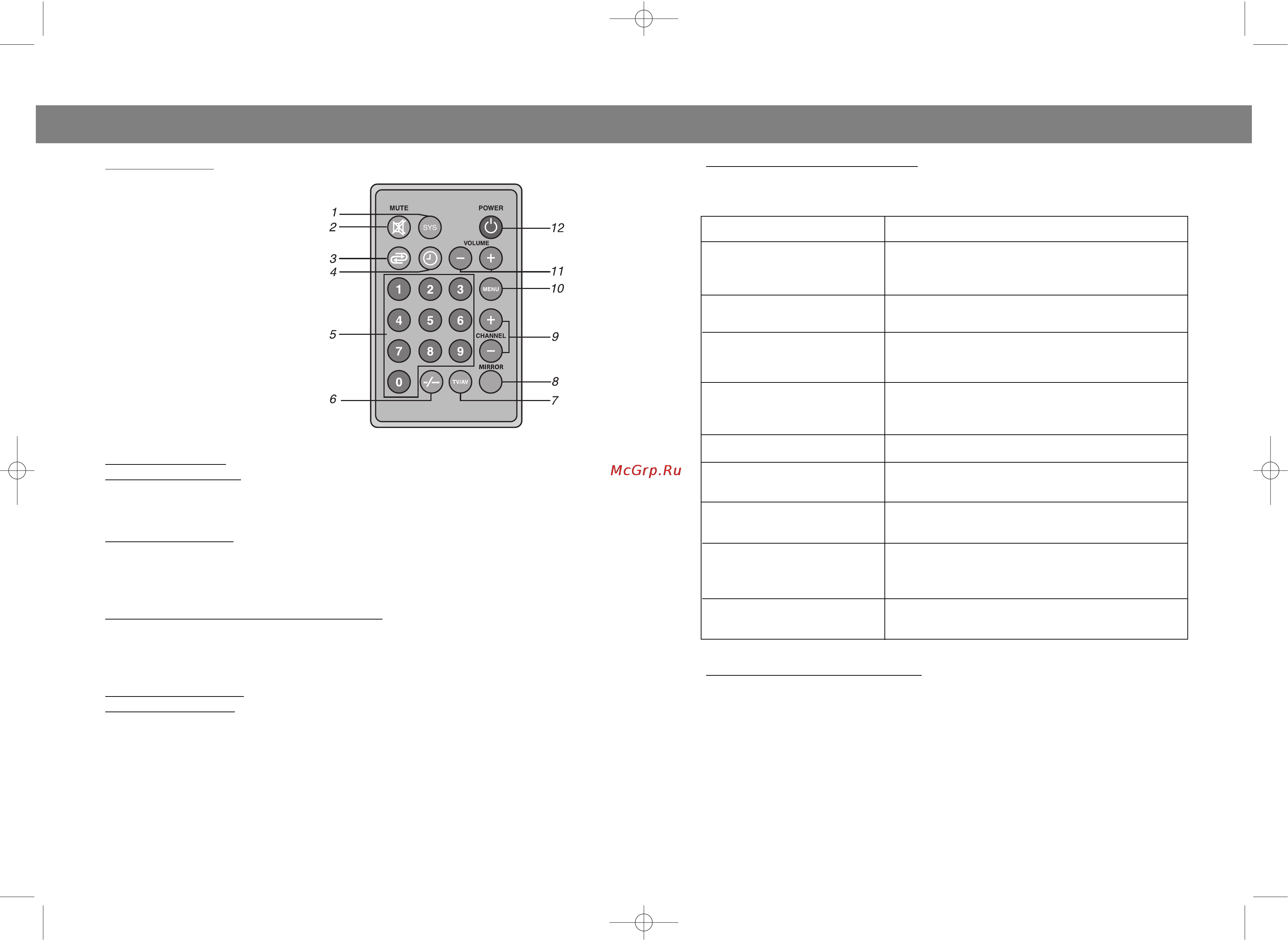

2. Remote Control
1. TV Sound system selecting
button
2. Mute button
3. Flash back button. Returns to
previous channel
4. Sleep timer button
5. Channel selecting button
6. Channel digit selecting button
7. TV/AV selecting button
8. Picture mirror button
9. Channel up and down buttons
10.Menu button
11.Volume adjusting buttons
12.Power ON/OFF button
ENGLISH
Признак
Отсутствие звука/изображения
Отсутствие изображения
Отсутствует звук
Плохой прием
Изображение затемнено
Некачественное изображение
"Снег" на экране
Нарушение цветности
ПДУ не работает
Причина
Неправильно подключено питание. Используется
неподходящий источник питания. Проверьте пере
ключатель ТВ/ВИДЕОМАГНИТОФОН
/DVD ПЛЕЕР
Правильно ли настроен канал? Сброс каналов.
Правильно ли выбран параметр S.SYS?
Не отключен ли звук с помощью кнопки громкости?
Не включен ли наушник? Звук глохнет изза слабого
сигнала. Правильно ли выбран параметр S.SYS?
Правильно ли настроена антенна? Правильно ли
настроен канал? Правильно ли выбран параметр
S.SYS?
Правильно ли отрегулированы яркость и контраст?
Вещательный сигнал слишком слабый. Правильно ли
настроена антенна? Не слабый ли сигнал?
Электрические помехи от двигателей автомобилей
или поездов, ЛЭП или неоновой рекламы.
Правильно ли настроен цвет? Цветность отсутствует
изза слабого сигнала. Правильно ли выбран
параметр S.SYS? Сигнал слишком слабый. Проверьте
установку цветности.
Не "села" ли батарея"? Доходят ли ИКлучи до
сенсора?
Vt-5006.qxd 2004.06.15. 12:54 Page 6
Содержание
- Модель vt 5006 1
- English 2
- B aspect 3
- English 3
- External antenna jack 2 av input 3 power switch on off 4 12v dc power socket 5 lcd screen panel 6 speaker 7 earphone socket 8 set stand 3
- External battery input 10 rod antenna 11 stand by switch 12 tv av selecting button 13 menu button 14 volume adjusting buttons 15 channel selecting buttons 16 remote sensor 3
- Main part 3
- Русский 3
- English 4
- Русский 4
- Adjusting the audio press menu at the second time to adjust the volume hold on v or v button to adjust the volume the screen display 5
- Menu operation 5
- Picture adjusting function press the menu button then you will find the picture contents as follows press ch or ch button to set each item press v or v button to adjust the volume 5
- Press av tv button each to change the mode from tv to av or from av to tv during the transfer the unit will be in mute 2 if selecting the tv mode please take the antenna out or connect with the household antenna if you never searched the local tv channels before you must proceed the auto searching or hand searching for details please read the preset function menu in the 3 menu operation 5
- Selecting the tv or av mode 5
- Русский english 5
- Calendar press ch or ch button to select the calendar press v or v button to adjust the month and date game press ch or ch button to select the game press v or v button to enter into the game the games russia square is available in this unit the operation methods are as follows press v button to move right press v button to move left press ch to turn up and down press ch button to accelerate 6
- Function adjustment press menu button three times to adjust the functions press ch or ch button to select the function press v or v button to transfer the function items the screen displays 6
- Further you could press v or v button to adjust the volume under the condi tion of no any menu displaying 6
- Picture mirror press ch or ch button to select the picture press v or v button to turn the picture left to right picture up and down press ch or ch button to select the picture press the v or v button to turn the picture up and down 6
- System adjustment press the menu button four times continuously then display the system adjust ment press ch or ch button to select the item press v or v button to change the functions the screen displays 6
- Vt 5006 qxd 2004 6 5 12 54 page 10 6
- Замечание показания часов будут сброшены если кабель питания будет извлечен из гнезда 6
- Максимальное значение равно 23 последующее нажатие кнопки возвращает параметр в исходное состояние 6
- Русский english 6
- English русский 7
- Pre set function press the menu button for five times continuously you would find the pre set function menu press ch or ch to choose item which you request then press v or v to switchover the item the format is as follows 7
- Clock press ch or ch to choose this item the original condition is as below 8
- Clock set function press the menu button for six times continuously you would find the clock set function menu press ch or ch to choose item which you request then press v or v to switchover the item the original set is sleeping press v or v to add the sleeping time it will add 10 minutes when you press one time the max sleeping time is 240 minutes 8
- English 8
- Note the clock will come back to original condition when the power plug leave from the socket 8
- Off time press ch or ch to find the original condition of this item then press v or v to make it to zero press v to add one minute the max can be 59 minutes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to original condition the unit will auto close itself when the closing time come 8
- On time press ch to find the original condition of this item then press v or v to make it to zero press v to add one minute the max can be 59 minutes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to orig inal condition the unit will auto open itself when the open time come 8
- Press v or v to zero press v to add one minute the max can be 59 min utes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to original condition 8
- Vt 5006 qxd 2004 6 5 12 54 page 14 8
- Русский 8
- Функция предустановки меню предустановки отобразится после 5 нажатий на кнопку menu для выбора нужной функции необходимо нажать ch или ch для изменения значения функции необходимо нажать v или v формат функции выглядит следующим образом 8
- Antenna adapter 9
- Av operation when you change tv system to av system pre set function and s sys swap copy weak signal preset will not display on the screen 9
- English русский 9
- Listening with the earphone push the earphone into the earphone socket 9
- Ohm wire 9
- Using an outdoor antenna in areas where tv signal are too weak for the rod antenna to provide good recep tion you should use an outdoor antenna connect the smaller end of antenna adaptor to the lcd tv s external antenna socket the bigger end to the antenna feedback 9
- E troubleshooting 10
- English 10
- F specifications 10
- The following conditions do not necessary mean that the tv is broken please check the causes as indicated below requesting that the tv be serviced 10
- Type tft lcd color television reception frequencies 45 5mhz 863 5mhz system please refer to rating label display element color tft lcd screen size 5 inches 14 cm pixels 960 x 234 effective area 114mm x 86mm audio output 500mw max speaker 16mm x 35mm square speaker one back light high luminance fluorescent light tube 10
- Русский 10
- Connection terminals external antenna socket earphone socket external power socket dc 12v audio video input socket power supply 3 ways power supply system ac dc adaptor car battery car adaptor batteries batteries pack battery not included power consumption approx 8w dimension 160mm x 135mm x 26 mm weight approx 600g 11
- English 11
- Service life of the tv set not less than 5 years 11
- The manufacturer reserves the right to change the characteristics of the device without prior warning 11
