Vitek VT-5006 [7/12] English русский
![Vitek VT-5006 [7/12] English русский](/views2/1050091/page7/bg7.png)
C.SYS: Press [V+] or [V#] to switchover the color system. S.SYS: Press [V+] or [V#]
to switchover the TV sound system.
SWAP: Press [CH+] or [CH#] to choose the program swap item. The function Allow
you to the currently channel number to the channel number which you need
to swap. Press [CH+] or [CH#] to choose target channel (it means the chan#
nel has been chosen, when the channel number s color change to red.),
press [V+]or [V#] to add or reduce the number, then press [CH+]or[CH#] to
choose currently channel number, press [V+] or [V#] to realize the function.
COPY: Press [CH+] or [CH#] to choose program copy item. The function allow you
to copy currently channel number to the channel number which you need.
Press [CH+] or [CH#] to choose target channel number (it means the
Channel has been chosen, when the channel number s color change to
red.), Press [V+] or [V#] to add or reduce the number, then press [CH+] or
[CH#] to choose currently channel number, press [V+] or [V#] to realize the
function.
WEAK SIGNAL: Usually, the weak signal has been set to ON, even the weak signal can be
Received in good condition. The weak signal would be set to OFF when using
AV Output function, if not, the AV output would be without color.

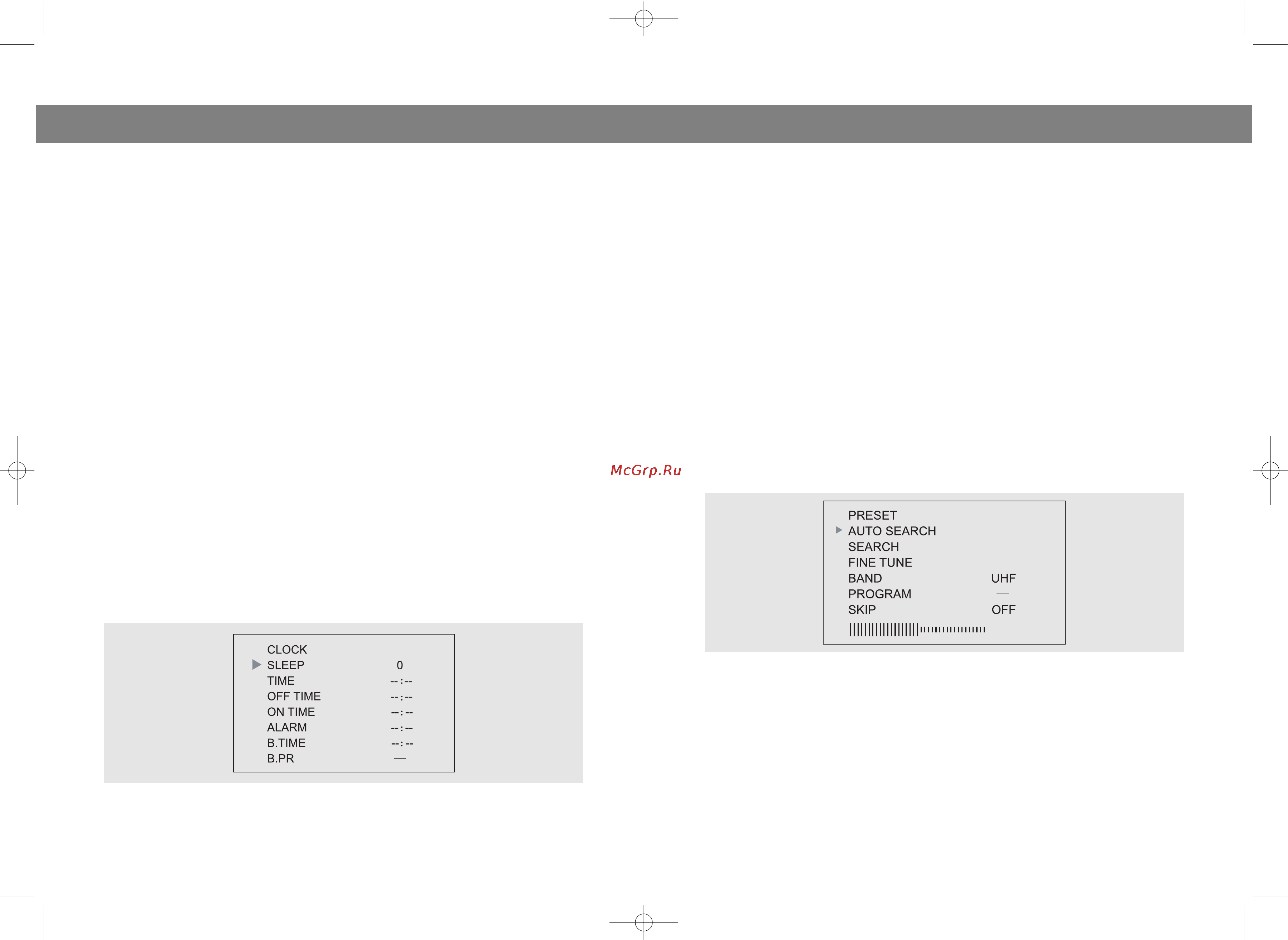

5) Pre#set function:
Press the [MENU] button for five times continuously, you would find the preset
function menu. Press [CH+] or [CH] to choose item which you request, then press
[V+] or [V] to switchover the item. The format is as follows:
AUTO SEARCH: the original set is auto search, press [V+] or [V#] to make it auto search. It
would Search all the currently TV channels and store them.
SEARCH: press [CH+] or [CH#] to choose this item, then press [V+] or [V#] to proceed
to search channels by hand. It would search one channel and store it.
FINE TUNE: press [CH+] or [CH#] to choose this item, then press [V+] or [V#], you can
adjust the program conditions while you are watching by hand.
BAND: press [CH+] or [CH#] to choose this item, then press [V+] or [V#] to choose
the band, the band formats which you can choose have: VHF#L, VHL#H, UHF.
PROGRAM: press [CH+] or [CH#] to choose this item, then press [V+] or [V#] to add or
reduce the Channel, the total channels for your selection are from 0 to 255.
SKIP: press [CH+] or [CH#] to choose this item, then press [V+] or [V#] to clean the
currently channel.
7
AUTO SEARCH (АВТОПОИСК): по умолчанию телевизор настроен на автопоиск; в
противном случае для перехода к режиму автопоиска
необходимо воспользоваться кнопками [V+] или [V#].
Система найдет все имеющиеся телевизионные каналы
и сохранит их в памяти.
SEARCH (ПОИСК): для выбора этого пункта необходимо нажать кнопку
[CH+] или [CH#], затем нажать [V+] или [V#] для
перехода к поиску каналов вручную. Система найдет
канал и сохранит его в памяти.
FINE TUNE (ТОНКАЯ НАСТРОЙКА): для выбора этого пункта необходимо нажать кнопку
[CH+] или [CH#], затем нажать [V+] или [V#], после чего
можно настроить программу во время просмотра
вручную.
BAND (ДИАПАЗОН): для выбора этого пункта необходимо нажать кнопку
[CH+] или [CH#], затем с помощью кнопок [V+] или [V#]
выбирается диапазон, из следующих вариантов: VHF#L,
VHL#H, UHF.
PROGRAM (ПРОГРАММА): для выбора данного пункта необходимо нажать кнопку
[CH+] или [CH#], затем нажать [V+] или [V#], чтобы
увеличить или уменьшить номер канала на единицу #
каналы выбираются в диапазоне от 0 до 255.
SKIP (ПРОПУСК): для выбора этого пункта необходимо нажать кнопку
[CH+] или [CH#], затем нажать [V+] или [V#] для
"очистки" текущего канала.
6) Функция установки часов
Меню установки часов отобразиться после 6 нажатий на кнопку [MENU]. Для выбора
нужной функции необходимо нажать [CH+] или [CH], для изменения значения
функции необходимо нажать [V+] или [V].
Значение по умолчанию "засыпание". Для увеличения времени "засыпания" нажмите
[V+] или [V], при каждом нажатии время будет увеличиваться на 10 минут,
максимальное время засыпания равно 240 минутам.
CLOCK (ЧАСЫ): для выбора данной функции нажмите [CH+] или [CH#], значение по
умолчанию показано ниже:
Для обнуления нажмите [V+] или [V], для увеличения на одну минуту нажмите [V+];
максимальное значение равно 59, если нажать на кнопку еще раз, то значение
времени будет "00". Для увеличения параметра на 1 час необходимо нажать [V],
18
ENGLISHРУССКИЙ
Vt-5006.qxd 2004.06.15. 12:54 Page 12
Содержание
- Модель vt 5006 1
- English 2
- B aspect 3
- English 3
- External antenna jack 2 av input 3 power switch on off 4 12v dc power socket 5 lcd screen panel 6 speaker 7 earphone socket 8 set stand 3
- External battery input 10 rod antenna 11 stand by switch 12 tv av selecting button 13 menu button 14 volume adjusting buttons 15 channel selecting buttons 16 remote sensor 3
- Main part 3
- Русский 3
- English 4
- Русский 4
- Adjusting the audio press menu at the second time to adjust the volume hold on v or v button to adjust the volume the screen display 5
- Menu operation 5
- Picture adjusting function press the menu button then you will find the picture contents as follows press ch or ch button to set each item press v or v button to adjust the volume 5
- Press av tv button each to change the mode from tv to av or from av to tv during the transfer the unit will be in mute 2 if selecting the tv mode please take the antenna out or connect with the household antenna if you never searched the local tv channels before you must proceed the auto searching or hand searching for details please read the preset function menu in the 3 menu operation 5
- Selecting the tv or av mode 5
- Русский english 5
- Calendar press ch or ch button to select the calendar press v or v button to adjust the month and date game press ch or ch button to select the game press v or v button to enter into the game the games russia square is available in this unit the operation methods are as follows press v button to move right press v button to move left press ch to turn up and down press ch button to accelerate 6
- Function adjustment press menu button three times to adjust the functions press ch or ch button to select the function press v or v button to transfer the function items the screen displays 6
- Further you could press v or v button to adjust the volume under the condi tion of no any menu displaying 6
- Picture mirror press ch or ch button to select the picture press v or v button to turn the picture left to right picture up and down press ch or ch button to select the picture press the v or v button to turn the picture up and down 6
- System adjustment press the menu button four times continuously then display the system adjust ment press ch or ch button to select the item press v or v button to change the functions the screen displays 6
- Vt 5006 qxd 2004 6 5 12 54 page 10 6
- Замечание показания часов будут сброшены если кабель питания будет извлечен из гнезда 6
- Максимальное значение равно 23 последующее нажатие кнопки возвращает параметр в исходное состояние 6
- Русский english 6
- English русский 7
- Pre set function press the menu button for five times continuously you would find the pre set function menu press ch or ch to choose item which you request then press v or v to switchover the item the format is as follows 7
- Clock press ch or ch to choose this item the original condition is as below 8
- Clock set function press the menu button for six times continuously you would find the clock set function menu press ch or ch to choose item which you request then press v or v to switchover the item the original set is sleeping press v or v to add the sleeping time it will add 10 minutes when you press one time the max sleeping time is 240 minutes 8
- English 8
- Note the clock will come back to original condition when the power plug leave from the socket 8
- Off time press ch or ch to find the original condition of this item then press v or v to make it to zero press v to add one minute the max can be 59 minutes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to original condition the unit will auto close itself when the closing time come 8
- On time press ch to find the original condition of this item then press v or v to make it to zero press v to add one minute the max can be 59 minutes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to orig inal condition the unit will auto open itself when the open time come 8
- Press v or v to zero press v to add one minute the max can be 59 min utes then press the button once more it come back to zero press v to add one hour the max can be 23 hours then press the button once more it come back to original condition 8
- Vt 5006 qxd 2004 6 5 12 54 page 14 8
- Русский 8
- Функция предустановки меню предустановки отобразится после 5 нажатий на кнопку menu для выбора нужной функции необходимо нажать ch или ch для изменения значения функции необходимо нажать v или v формат функции выглядит следующим образом 8
- Antenna adapter 9
- Av operation when you change tv system to av system pre set function and s sys swap copy weak signal preset will not display on the screen 9
- English русский 9
- Listening with the earphone push the earphone into the earphone socket 9
- Ohm wire 9
- Using an outdoor antenna in areas where tv signal are too weak for the rod antenna to provide good recep tion you should use an outdoor antenna connect the smaller end of antenna adaptor to the lcd tv s external antenna socket the bigger end to the antenna feedback 9
- E troubleshooting 10
- English 10
- F specifications 10
- The following conditions do not necessary mean that the tv is broken please check the causes as indicated below requesting that the tv be serviced 10
- Type tft lcd color television reception frequencies 45 5mhz 863 5mhz system please refer to rating label display element color tft lcd screen size 5 inches 14 cm pixels 960 x 234 effective area 114mm x 86mm audio output 500mw max speaker 16mm x 35mm square speaker one back light high luminance fluorescent light tube 10
- Русский 10
- Connection terminals external antenna socket earphone socket external power socket dc 12v audio video input socket power supply 3 ways power supply system ac dc adaptor car battery car adaptor batteries batteries pack battery not included power consumption approx 8w dimension 160mm x 135mm x 26 mm weight approx 600g 11
- English 11
- Service life of the tv set not less than 5 years 11
- The manufacturer reserves the right to change the characteristics of the device without prior warning 11
- Русский 11
- Русский 12
