17

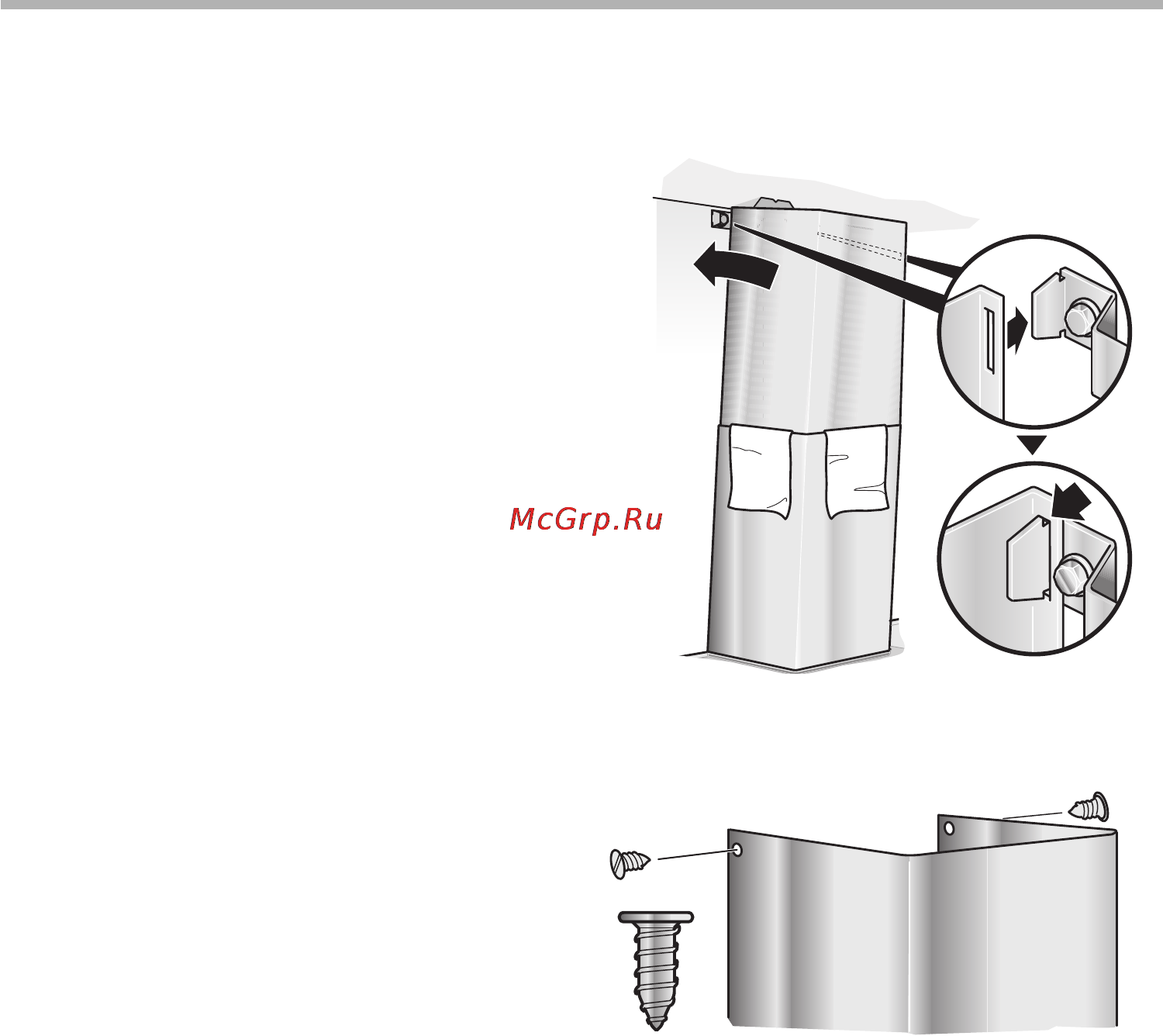

4. Place ue ducts on the extractor hood, push
the inner ue duct upwards and attach the
left and right sides to the xing bracket.
5. Screw the inner ue duct with 2 screws to
the sides of the xing bracket.
Installing the ue ducts
RISK OF INJURY
The insides of the ue ducts may have sharp
edges. We recommend wearing protective
gloves during installation.
1. Separate the ue ducts. To do this, remove
the adhesive tape.
2. Remove the protective lm from both ue
ducts.
3. Insert one ue duct into the other.
NOTE: Avoid scratching the ue ducts when
inserting them, e.g. by placing the installation
template as protection over the edge of the outer
ue duct.
Note the position of the slots in the ue
duct!
– Exhaust-air mode: Slots of the inner ue
duct downwards.
– Circulating-air mode: Slots of the inner ue
duct upwards.
Installation
