Neff D86E34N0 [15/24] Installation preparations
![Neff D86E34N0 [15/24] Installation preparations](/views2/1050853/page15/bgf.png)
15
Installation preparations

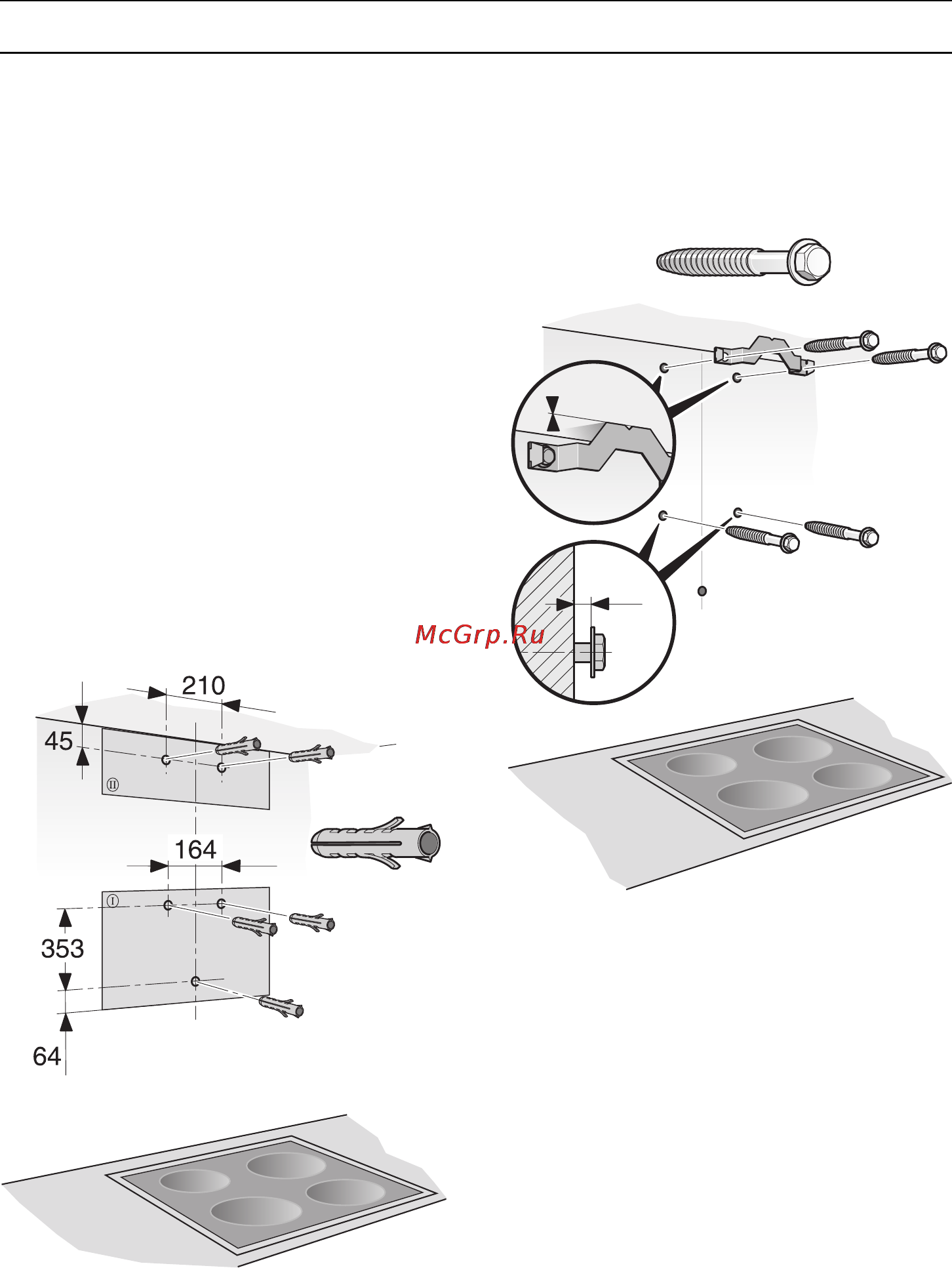

5. Screw on the fixing bracket for the flue
duct.
6. Screw in the 2 middle screws as an
installation aid, leaving them projecting
by approx. 5 mm.
5
0
This extractor hood is intended to be
mounted onto the kitchen wall.
1. Remove the grease filter (refer to
Operating Instructions).
2. Draw a line on the wall from the ceiling
to the lower edge of the hood at the
centre of the location where the hood is
going to be mounted.
3. Using the template, mark positions on
the wall for the screws.
Ensure that the minimum distance bet-
ween the hob and the extractor hood is
maintained – 550 mm for an electric hob
and 650 mm for a gas hob. The bottom
edge of the template equates to the lower
edge of the extractor hood.
4. Drill 3x 8 mm holes for the extractor
hood and 2x 8 mm holes for the fixing
bracket for the flue duct and press in
wall plugs flush with the wall.
