15
Installation
The extractor hood is designed to be
mounted on the wall.
During installation, optional accessories may
also require fitting.
Observe the minimum distance between
hob and extractor hood (see ”Safety
instructions”)!
Avoid damaging the sensitive surfaces!
Preparing the wall
RISK OF INJURY,
DAMAGE TO PROPERTY
Before drilling the holes for the designated
installation location, check for concealed
electrical cables and other lines.
The wall must be level and vertical.
The enclosed screws and wall plugs are
suitable for solid brickwork. Use the
appropriate fixing materials for other wall
structures (e.g. plaster board, porous concrete,
poroton bricks).
Ensure that the wall has adequate load
bearing capacity.
Ensure that the depth of the drilled holes
corresponds with the length of the screws.
Ensure that the wall plugs are secure.
Max. weight in kg: 40
Design subject to modication in line with
technical development.
Installation preparations
1. Mark a centre line on the wall from the
ceiling to the lower edge of the extractor
hood.
2. Using the enclosed template, mark
positions for the screws and, to facilitate
attachment, the contour of the attachment
area. The lower edge of the template
corresponds to the lower edge of the
extractor hood.

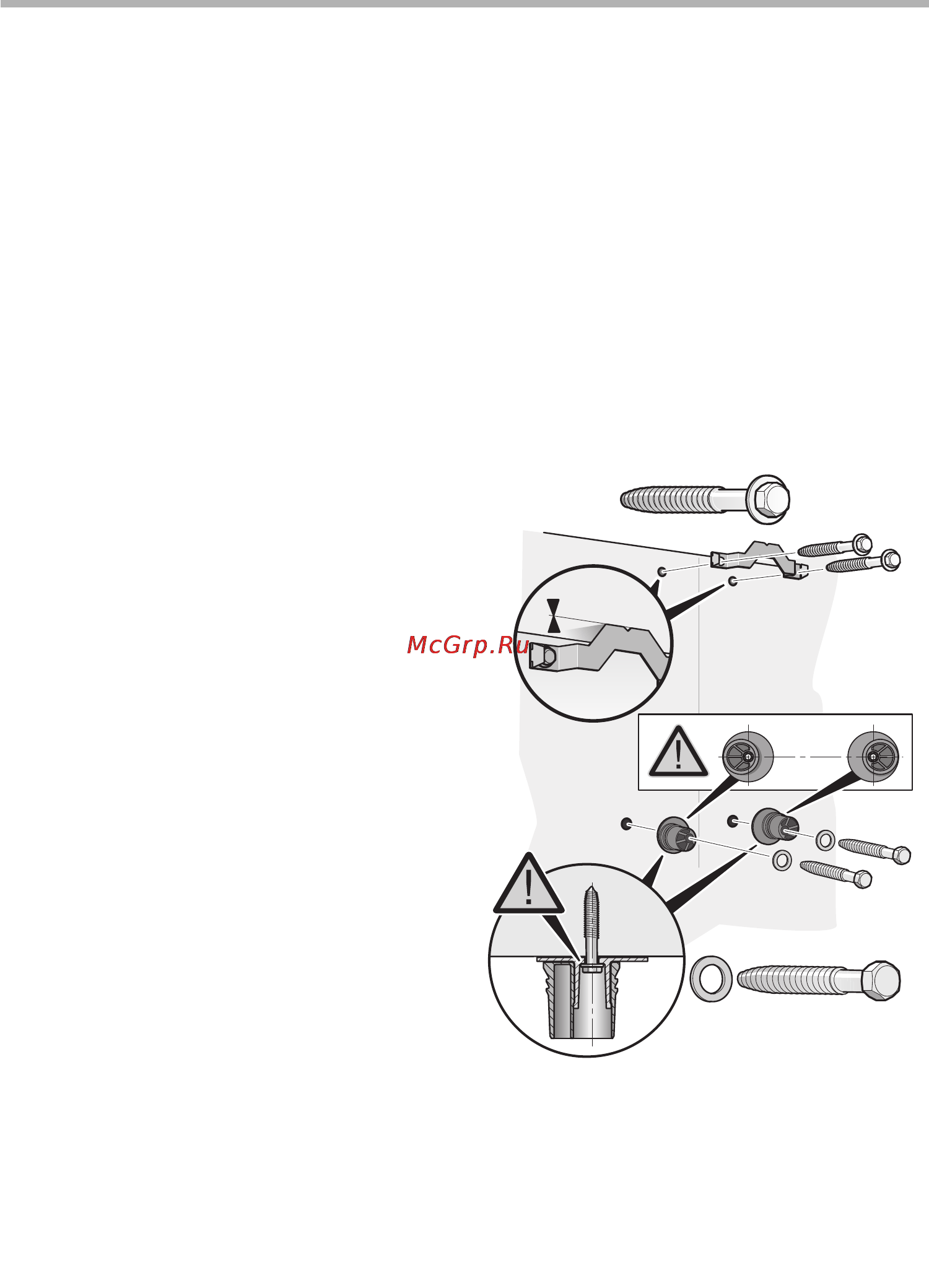

3. Drill 2x 8 mm holes for attachment of the
extractor hood and 2x 8 mm holes for the
xing bracket for the ue duct and press in
wall plugs ush with the wall.
4. Screw on the xing bracket for the ue
duct.
5. Screw on the brackets for the extractor
hood: hand tight, max. 3 Nm.
Ensure that the washers and brackets are
positioned correctly!
