DSR9400 FTA, EM VIA
DSR9400 FTA, EM VIA
CONNECTING YOUR "DSR9400"
GB-5GB-4
DIGITAL SATELLITE RECEIVER
GB
1. LOCATION OF THE RECEIVER
Your
DSR9400
should be placed under proper ventilation.
Don’t put in completely enclosed cabinet that will restrict the flow of air,
resulting in overheating.
The location should be safeguarded from direct sunlight,
excess moisture, rough handling or household pets.
Avoid stacking other electronic components on the top of the receiver.
The location should be safely accessible by the cable from your
antenna system.
2. CONNECTING THE RECEIVER WITH DISH SYSTEM
After installing your antenna system, connect the coaxial cable from the
LNB of your antenna to "LNB" terminal marked at the rear
of the
DSR9400
.
All cable connectors should be finger tightened; do not use any kind
of wrench while tightenning connectors. The cable should be 75ohm
impedance coaxial twisted at the end with an "F" type connector.
3. CONNECTING THE RECEIVER TO TV
To connect the receiver with your television, you can use Scart Cable.
In the case of connecting your TV through
SCART
cable, connect the
SCART
connector marked TV to the respective
SCART
port on the TV.
4. CONNECTING YOUR VCR
To connect a VCR, the DSR9400 has been provided with SCART/RCA
at the rear marked "VCR".
Using a SCART/RCA connector, the VCR can be connected to the receiver.
5. CONNECTING YOUR DIGITAL AUDIO SYSTEM
If you have a DAC with S/PDIF coaxial cable input, you can connect the STB
with it to enjoy higher quality sound. Connect S/PDIF coaxial cable to a digital
amplifier.
6. INSERTING SMARTCARDS FOR VIACCESS SERVICES
In order to view a scrambled service, you need to have the appropriate
conditional Access Module and a valid Smartcard. This DSR9400 has the
Viaccess CAS embedded to view Viaccess programmes.
NNoottee : Insert the Smartcard with the gold coloured chip facing downwards.

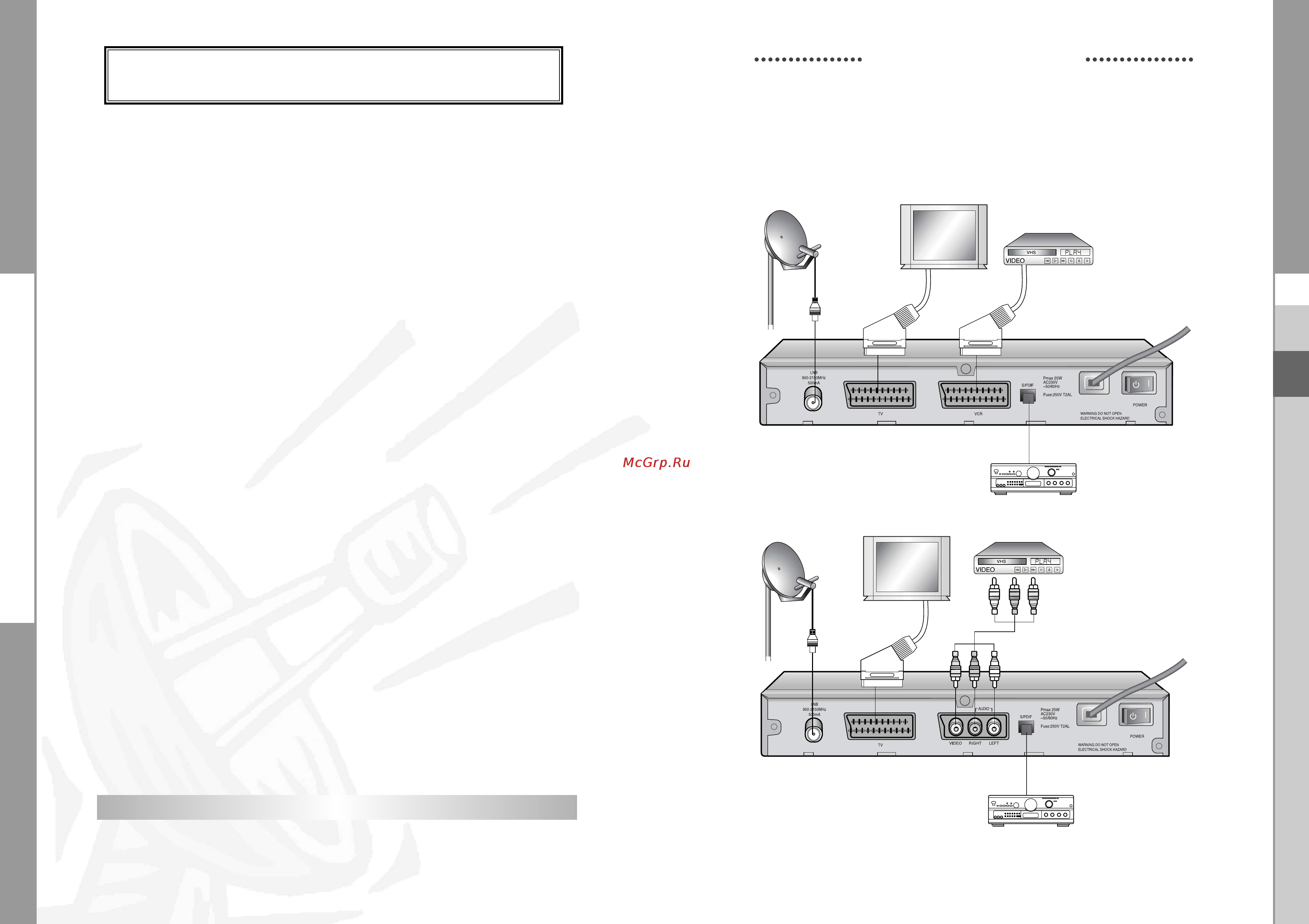

Connecting Figure
CONNECTING YOUR "DSR9400"
DSR9400-GB_4.0 6/24/03 1:37 PM Page 4
