Installation/connection

General notes

 Choose the mounting location where the unit will not interfere with the normal driving function of the

driver.

 Before finally installing the unit, connect the wiring and make sure that the unit works properly.

 Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

 Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

 Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN front-mount (Method A)

 Install the sleeve into the dashboard; ensure it is installed with the

correct side and there are no obstacles (wires, dashboard

elements, etc) for the unit installation.

 After installing the sleeve into the dashboard, bend tabs fitting to

the size of the dashboard to fix the sleeve in place.

 Make the necessary wire connections. Ensure the connections are

correct.

 Install the unit into the sleeve until the side locks are fixed.

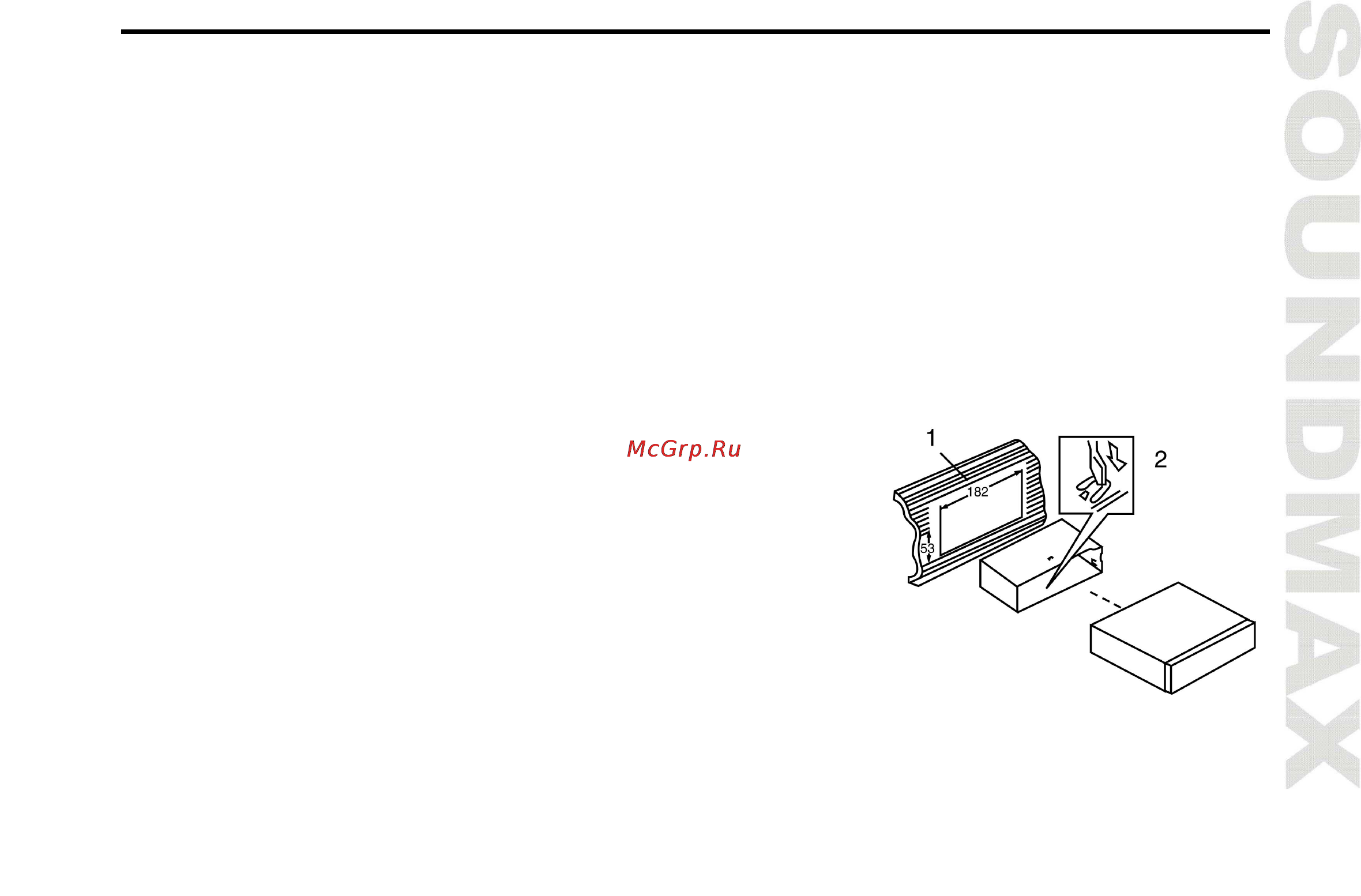

1. Dash board

2. Sleeve tab to bend
